Removal And Installation: Notes

CAUTION:
  • For vehicles with ABS, do not strike the ABS rotors installed to the BJ outer race of drive shaft against other parts when removing or installing the drive shaft. Otherwise the ABS rotors will be damaged.
  • For vehicles with ABS, be careful not to strike the pole piece at the tip of the front wheel speed sensor with tools during servicing work.

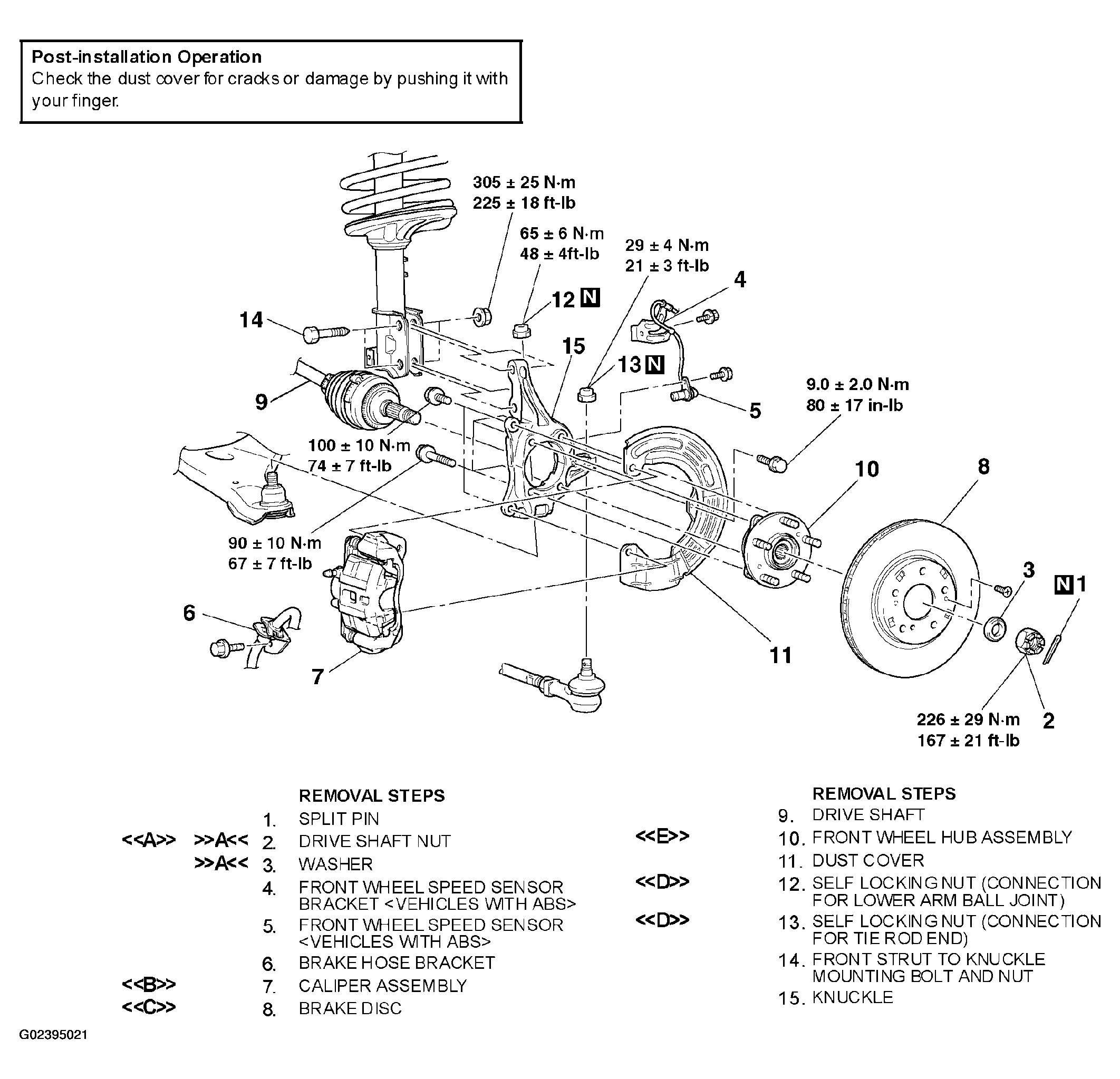

    Fig 1: Exploded View Of Front Axle Hub Assembly
    G02395021Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
