Disassembly And Assembly
›
< 3.8L Engine >
< 3.8L Engine >

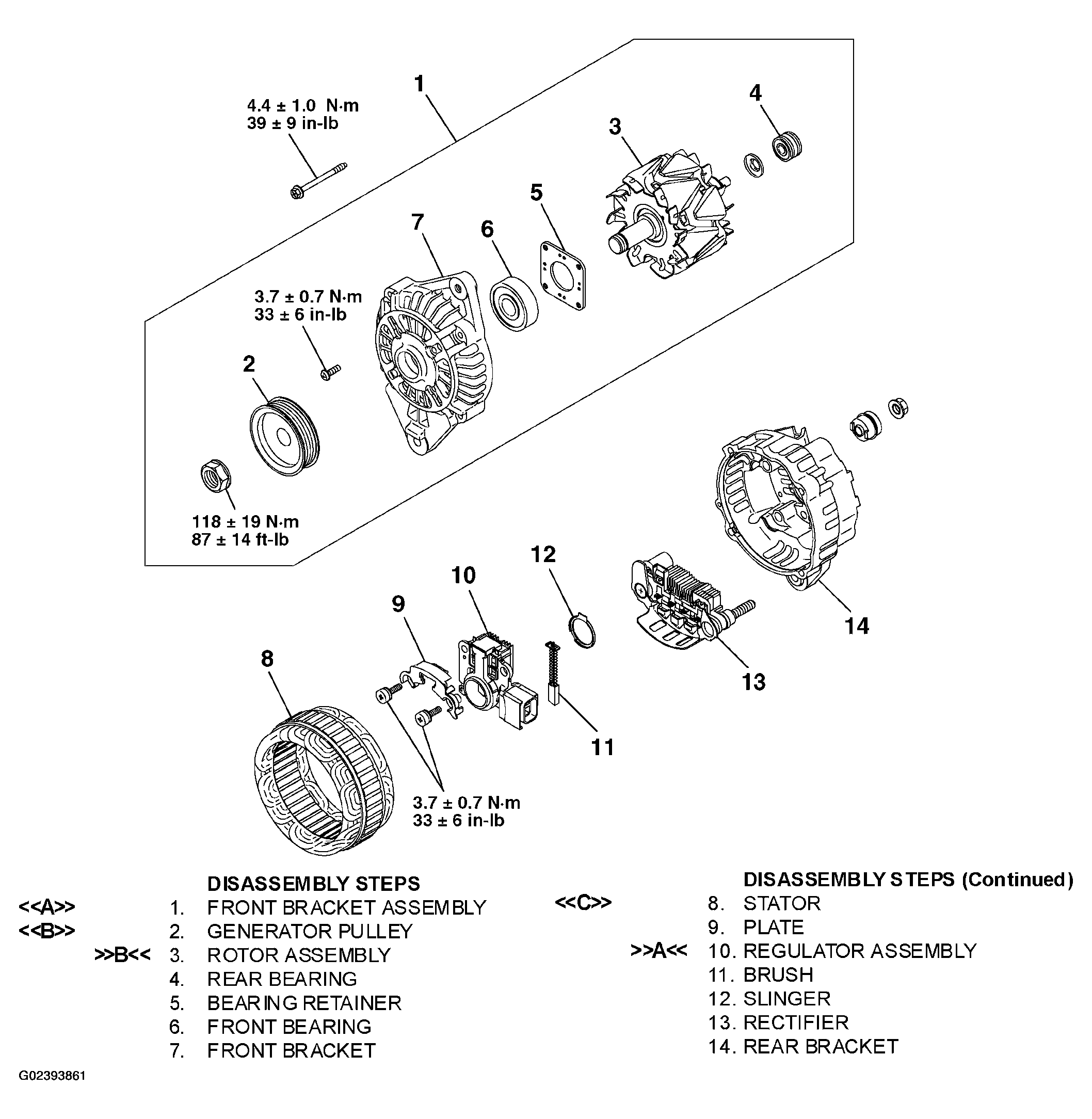

Fig 1: Disassembling And Assembling Generator Components (3.8L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
