Removal And Installation < 3.8L Engine >
›
Notes
Removal And Installation < 3.8L Engine >: Notes

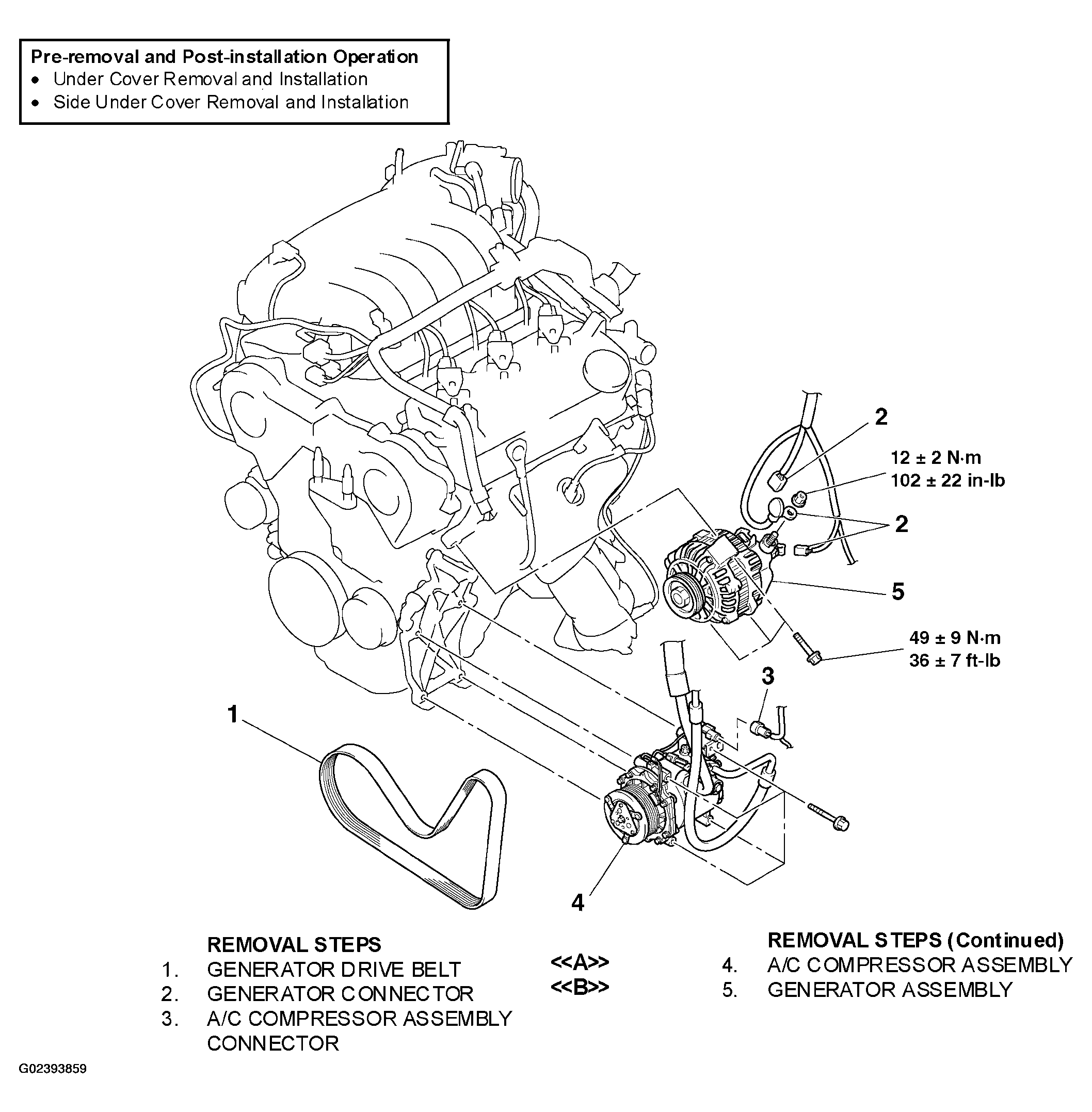

Fig 1: Removing And Installing Generator Assembly (3.8L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
