Ambient Air Temperature Sensor Check

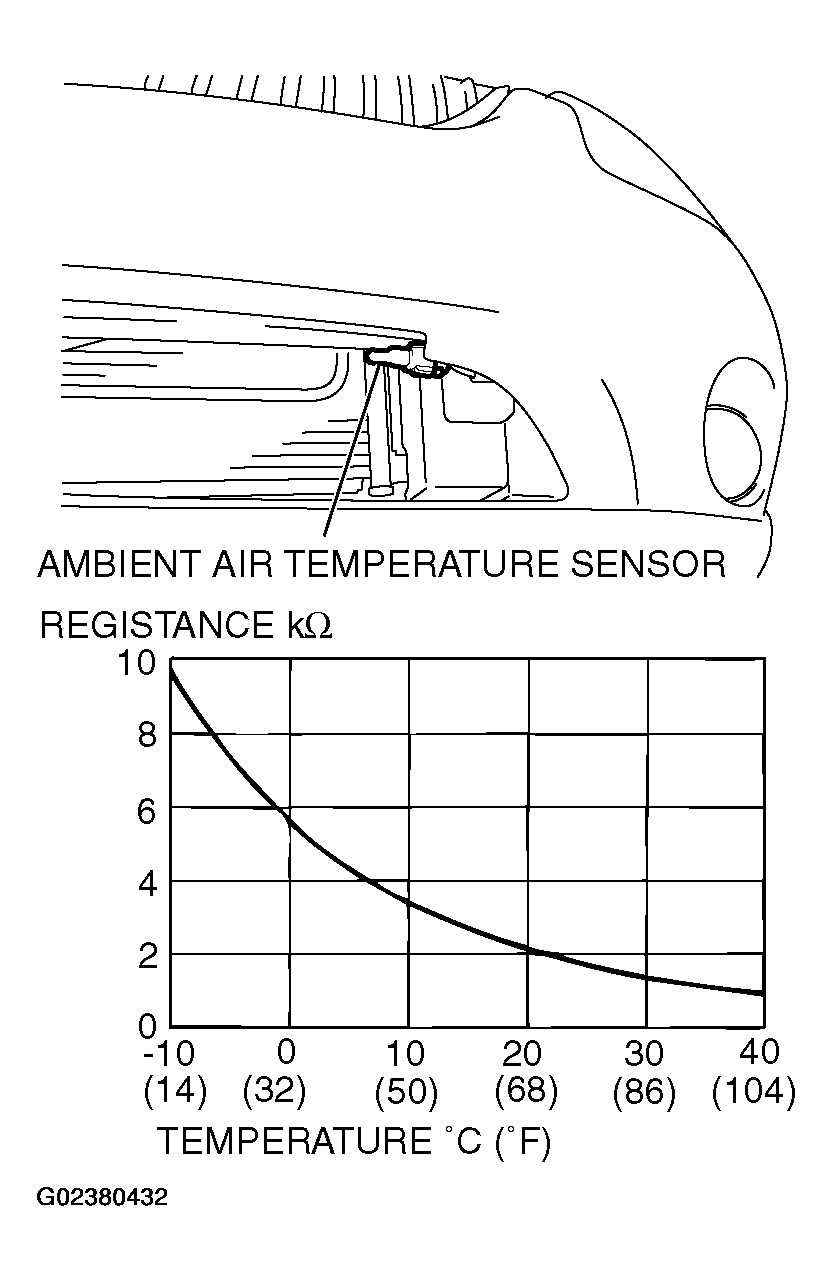

The ambient air temperature sensor should be checked on vehicle . Once the sensor is removed, it is rendered unserviceable. Measure the resistance between the sensor terminals under at least two temperatures. The resistance values should meet the values shown in illustration.
NOTE:
The temperature should be within the shown range in illustration.
