Fuel Level Sensor Check

Remove the rear seat cushion assembly. (Refer to REAR SEAT ASSEMBLY ).
Remove hole cover and remove the fuel pump module and fuel level sensor (sub).
Tightening torque: 1.5 +/- 0.5 N.m (14 +/- 0.5 in-lb)

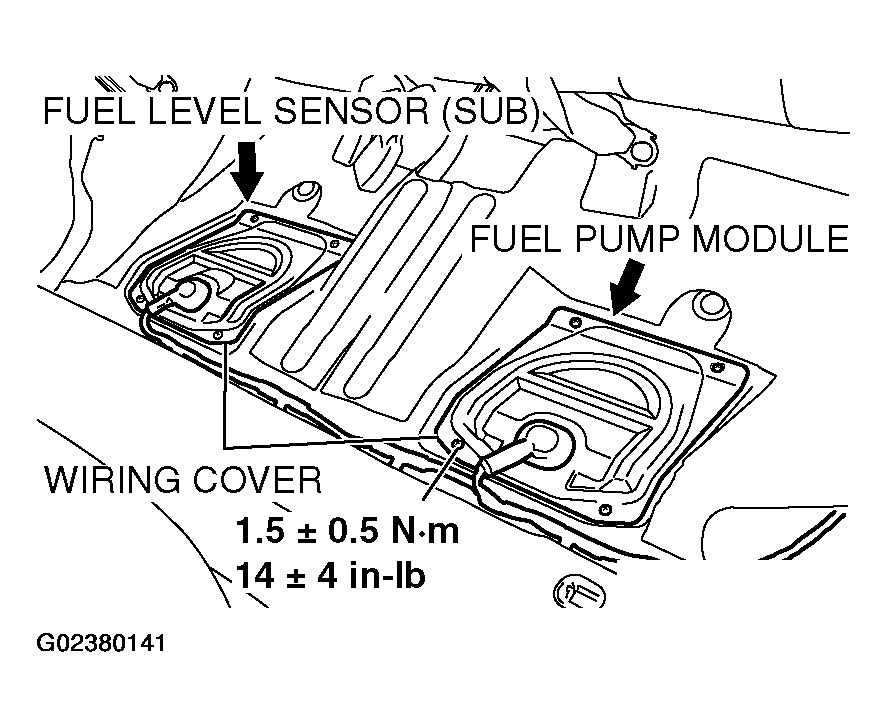

Fig 1: Locating Fuel Pump Module And Fuel Level Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
