INSPECTION PROCEDURE 8: Tachometer does not Work.: Notes

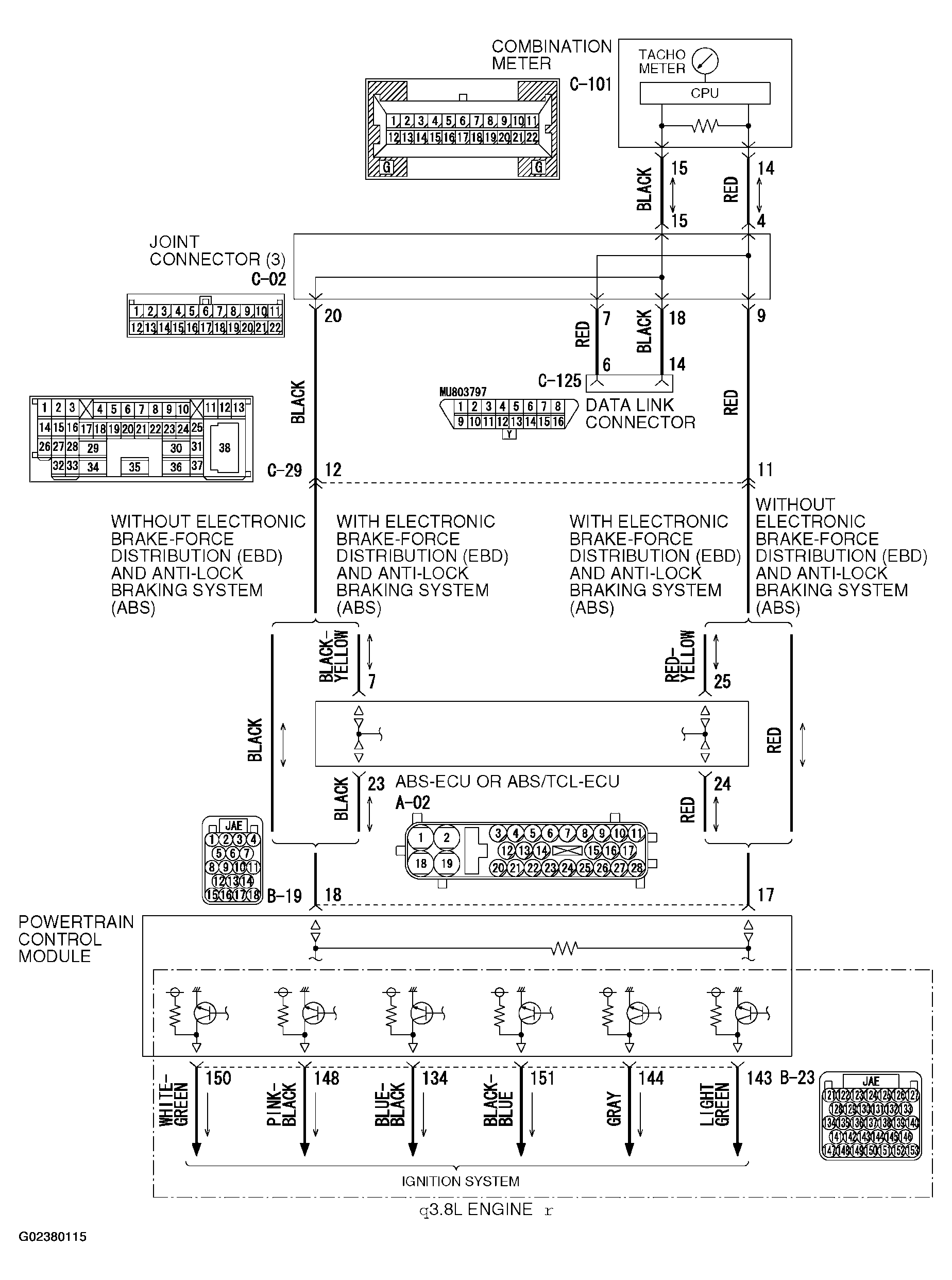

Fig 1: Identifying Tachometer Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

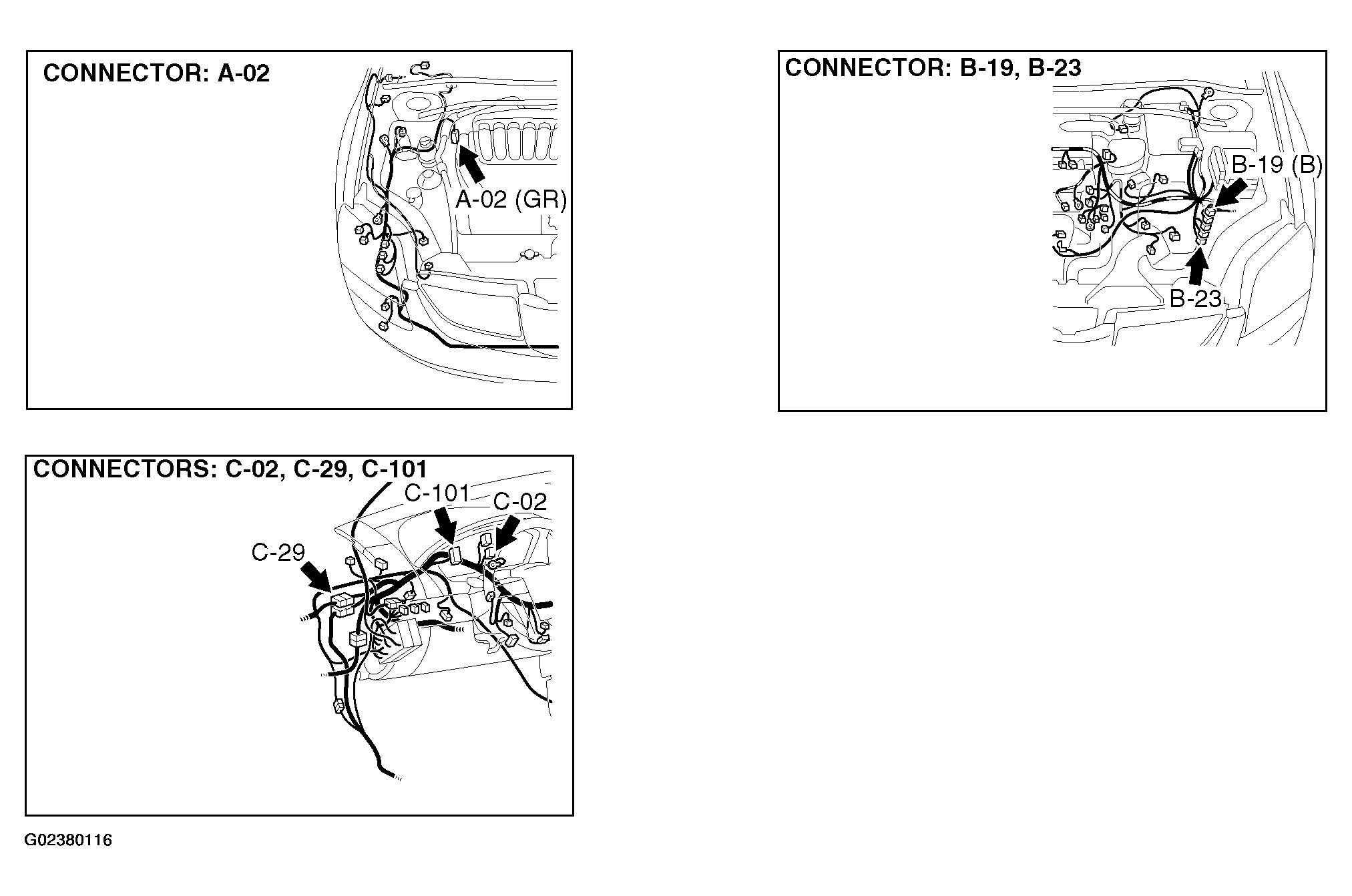

Fig 2: Locating Tachometer Circuit Connectors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
