Rheostat Switch Check

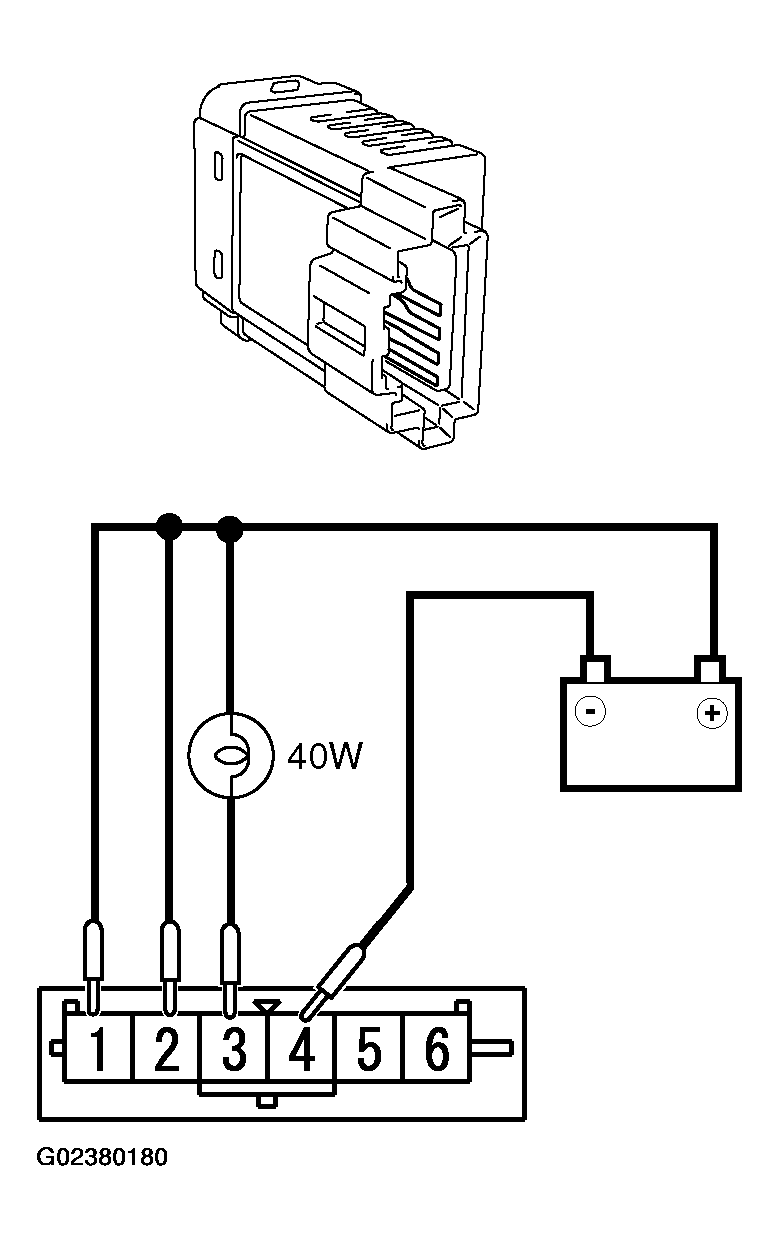

- Connect the battery and the test bulb (40W) as shown in the illustration.
- Operate the rheostat, and if brightness changes smoothly without switching off, rheostat function is normal.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
