INSPECTION PROCEDURE 1: Communication With Scan Tool is Not Possible.: Notes

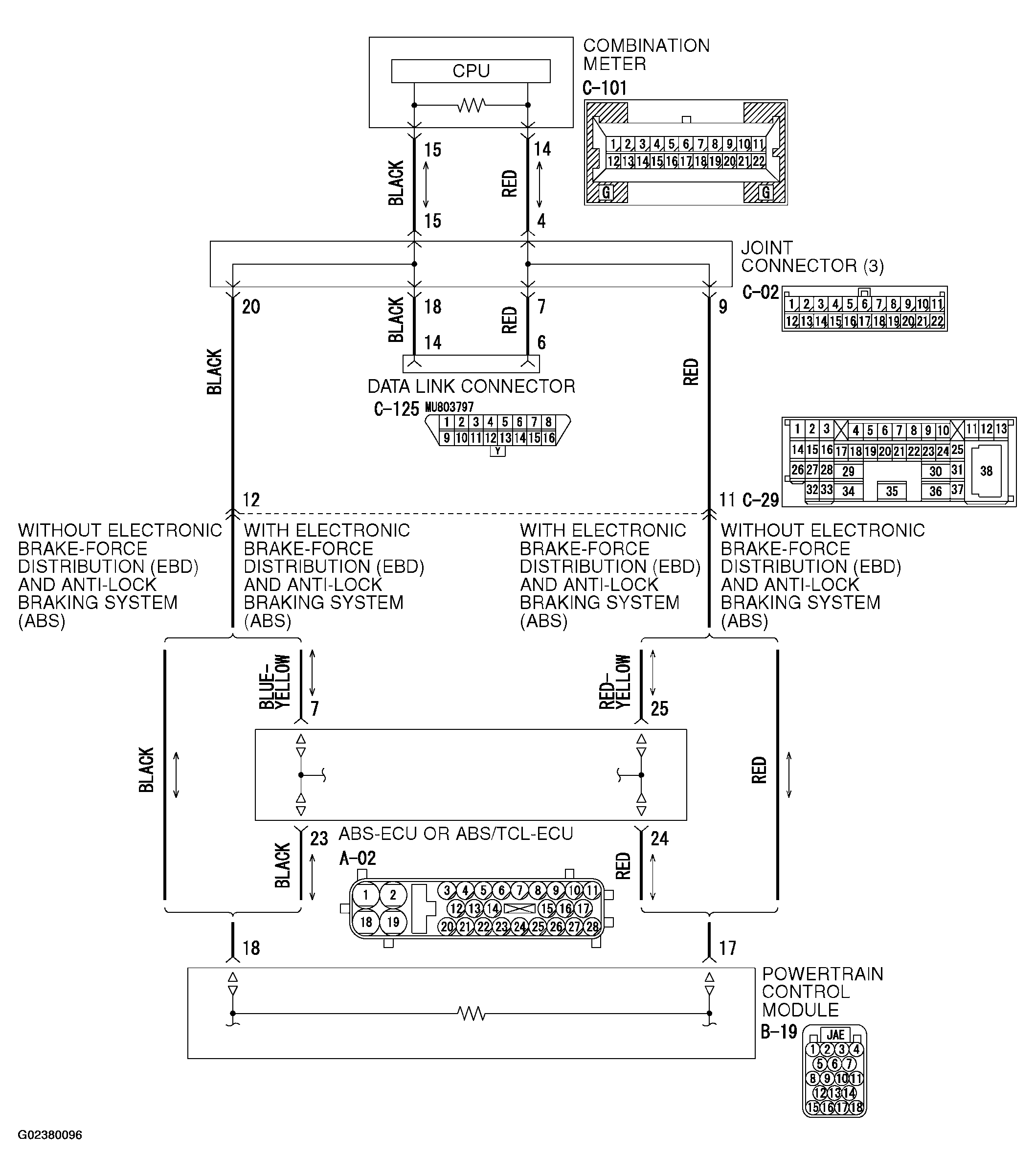

Fig 1: Identifying Combination Meter CAN-Bus Line Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

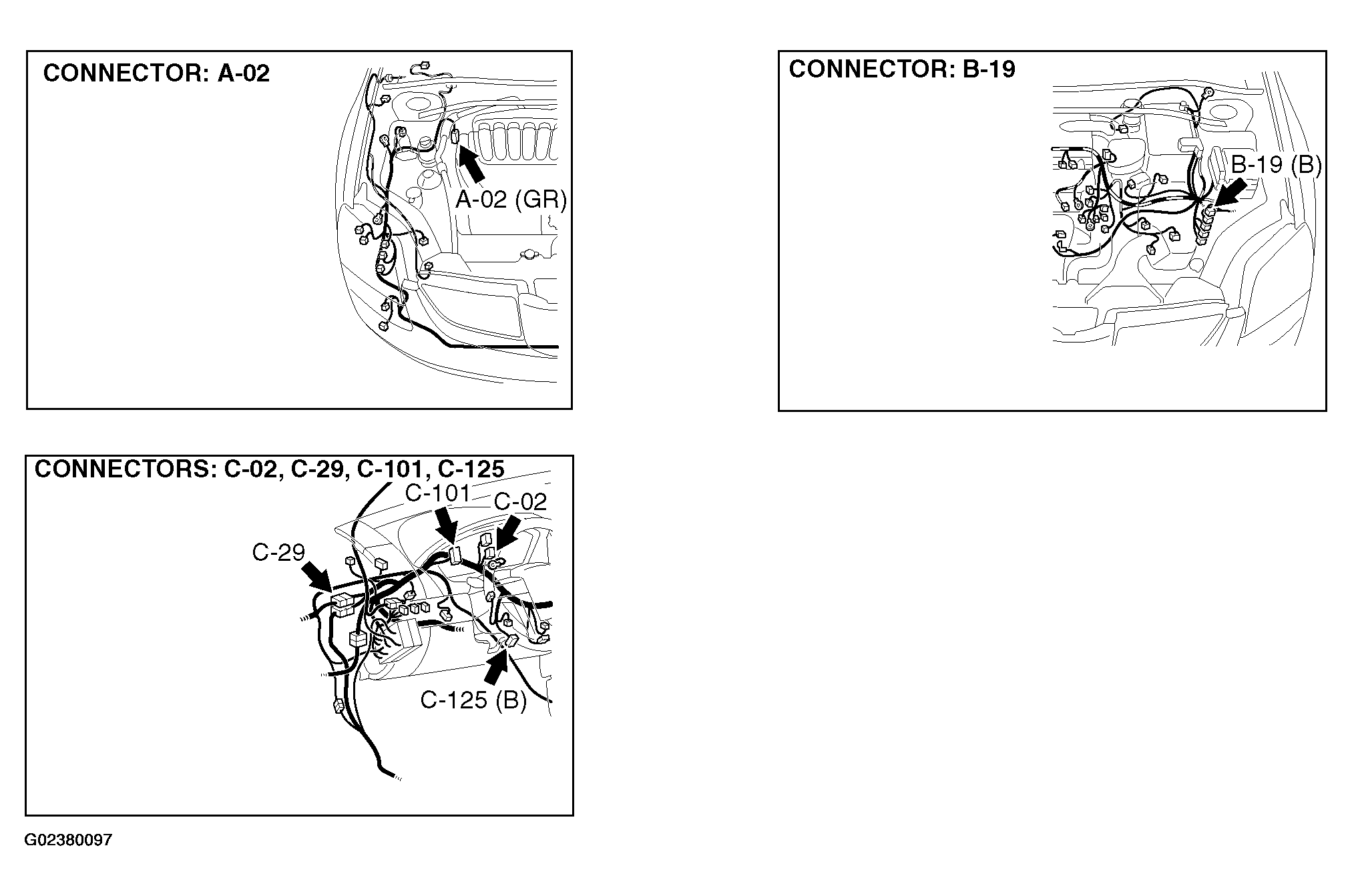

Fig 2: Locating Combination Meter CAN-Bus Line Connectors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
