Transmission Range Switch Check

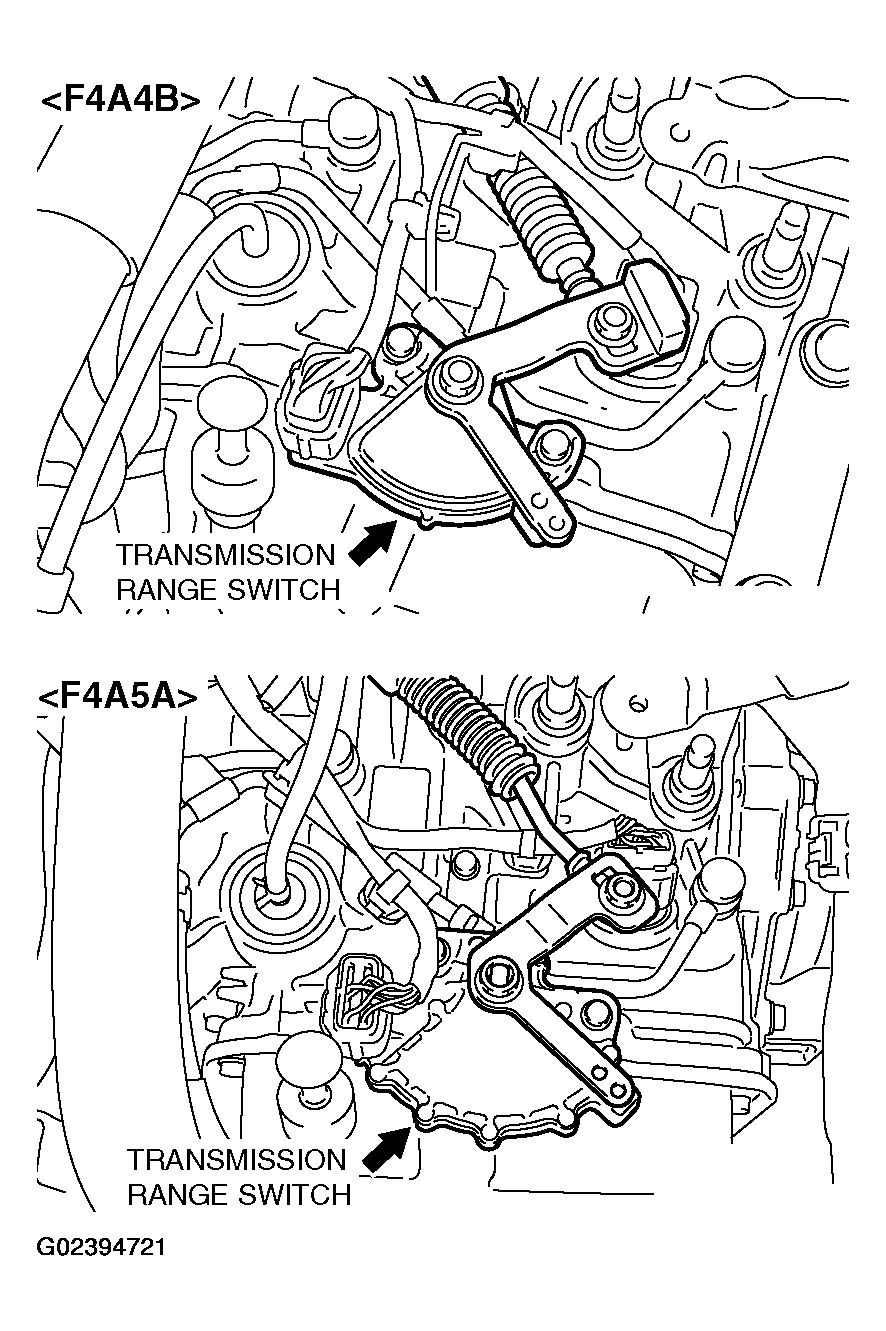

Fig 1: Identifying Transmission Range Switch - F4A4B & F4A5A

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

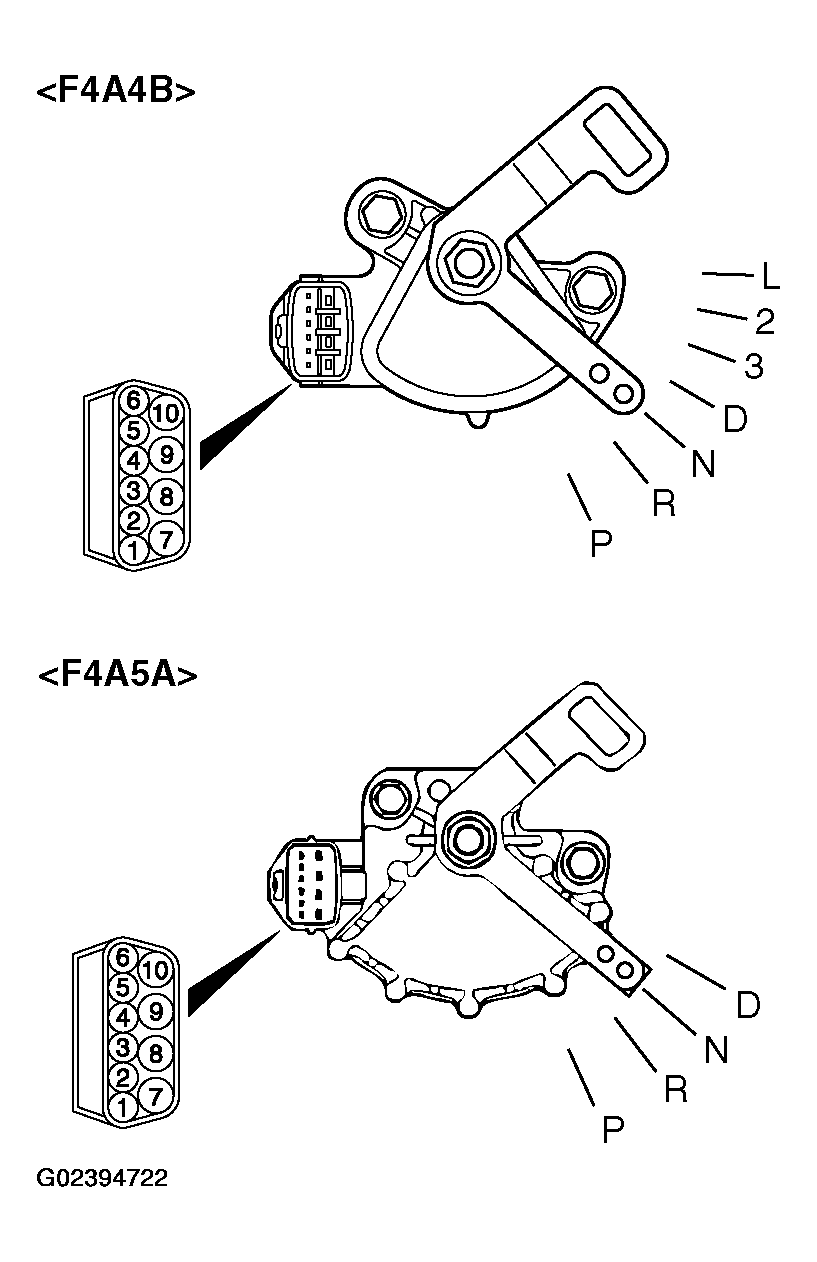

Fig 2: Locating Transmission Range Switch Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: For vehicles with sport mode, four positions (P, R, N, D) are used.

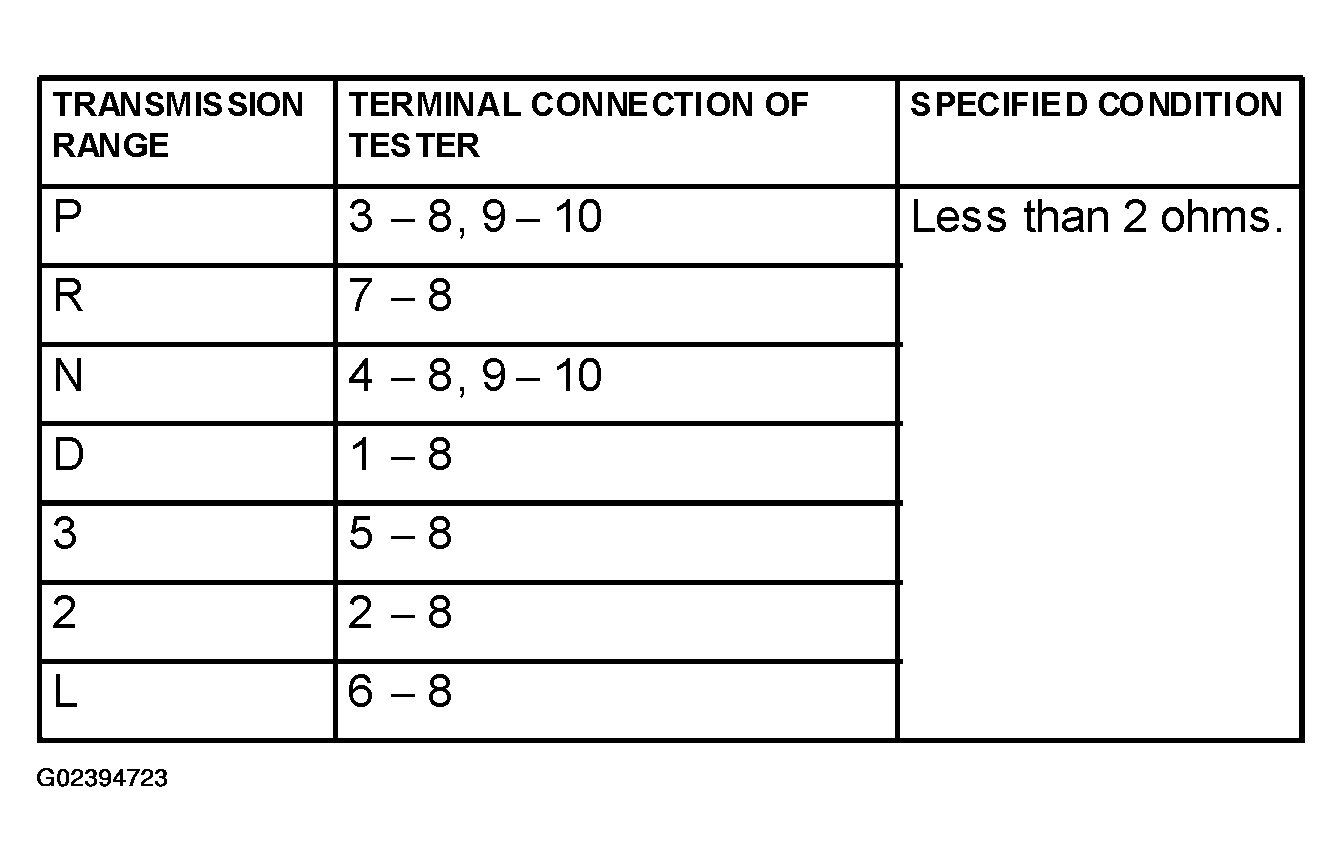

Fig 3: Identifying Transmission Range Switch Shift Position

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
