Hydraulic Circuits

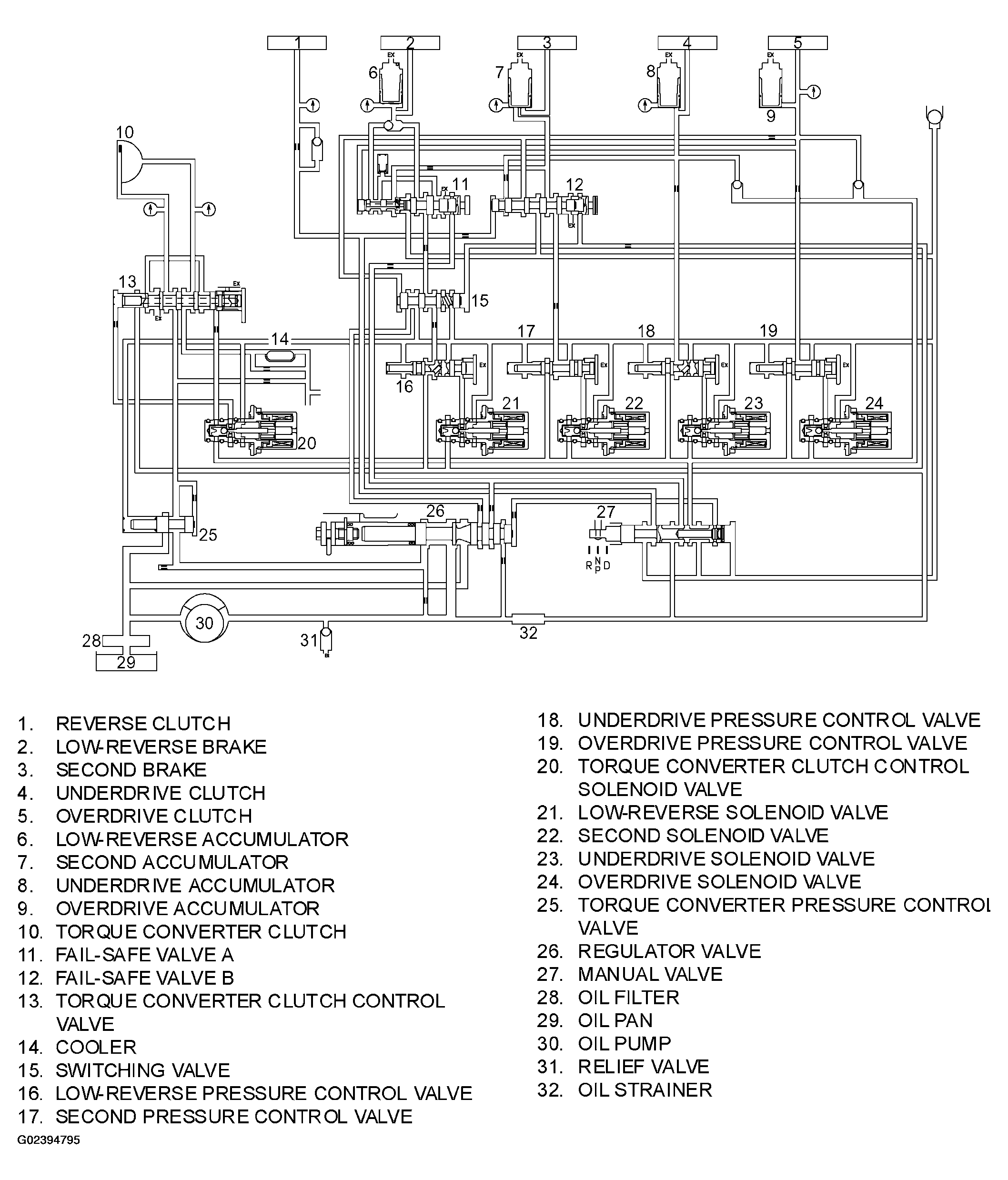

Fig 1: Hydraulic Circuit Diagram
G02394795Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
