Emission Control: Diagnosis

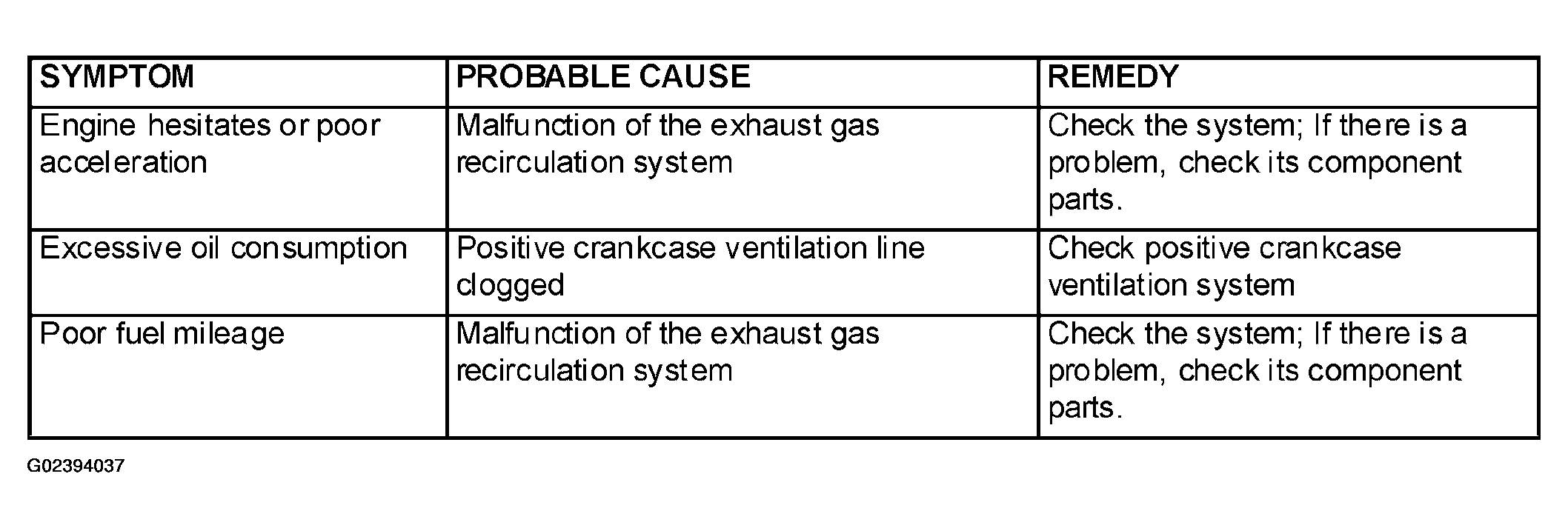

Fig 1: Problem Symptom Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

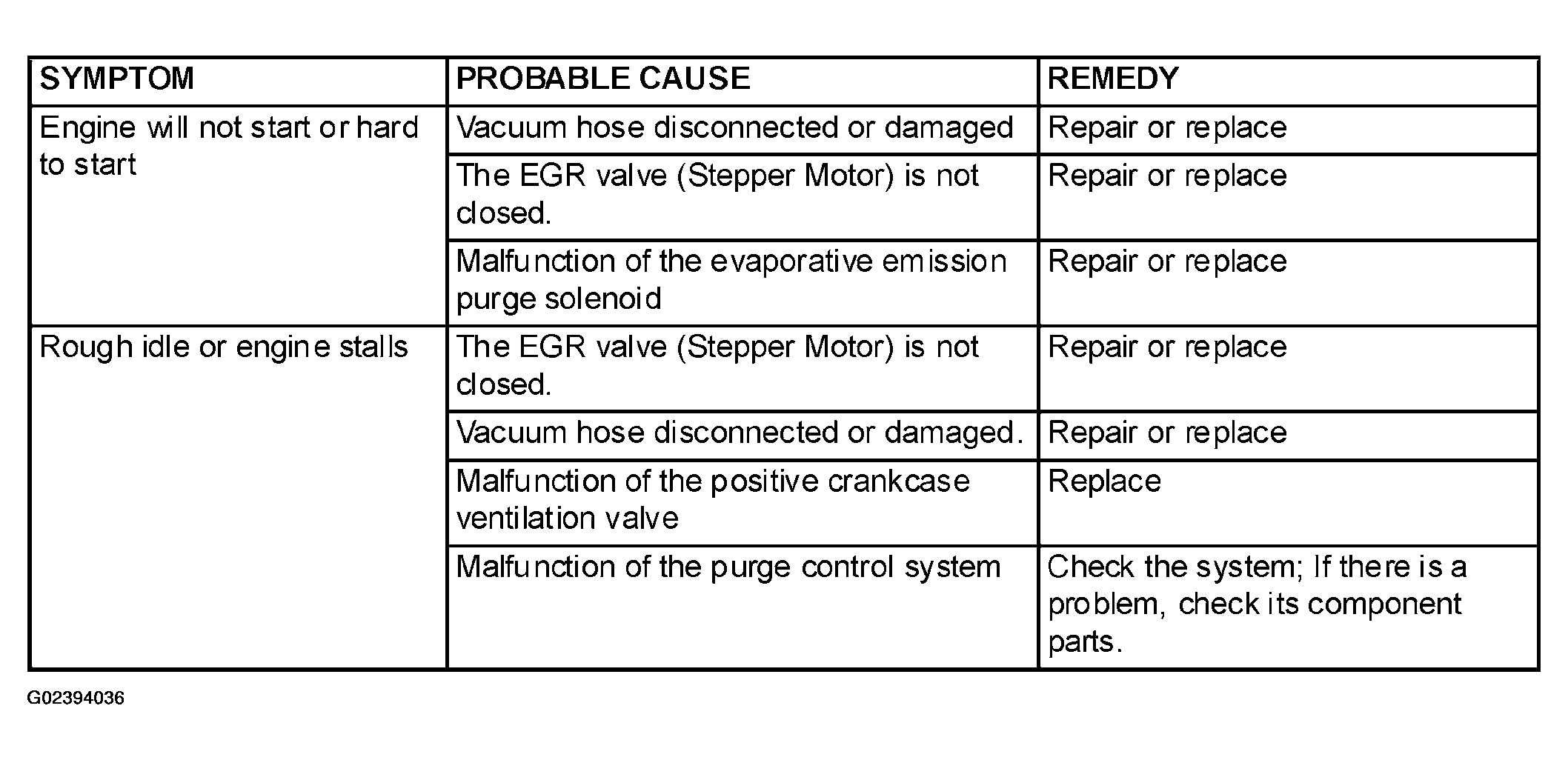

Fig 2: Problem Symptom Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
