Repair and Diagnosis (Single Page)
›
Electrical
›
Charging Systems
›
Charging System -- Except Evolution
›
Generator Assembly
›
Disassembly And Assembly
›
Notes
Disassembly And Assembly: Notes

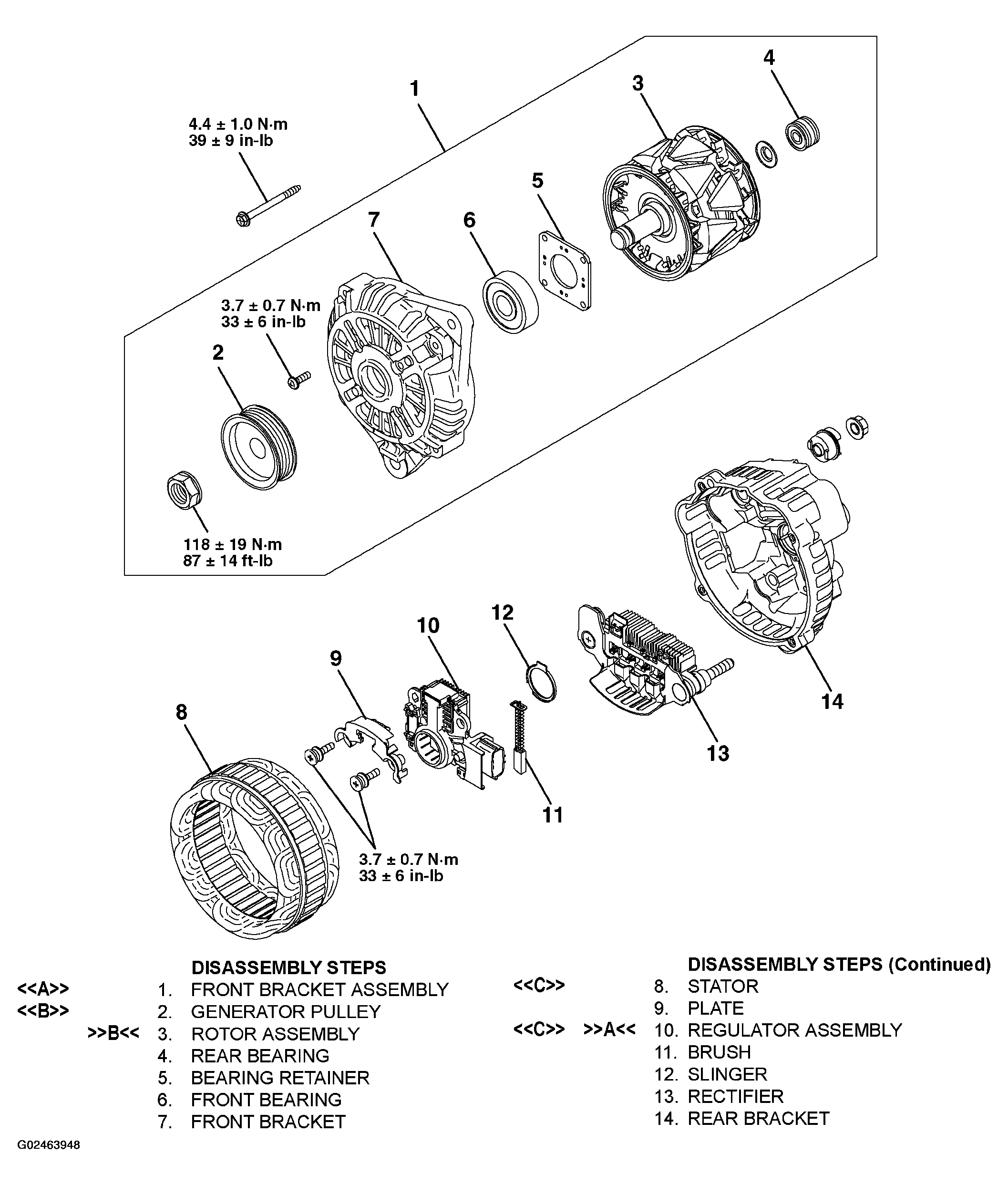

Fig 1: Identifying Components Of Generator
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
