Removal And Installation < 2.4L Engine >
Removal And Installation < 2.4L Engine >

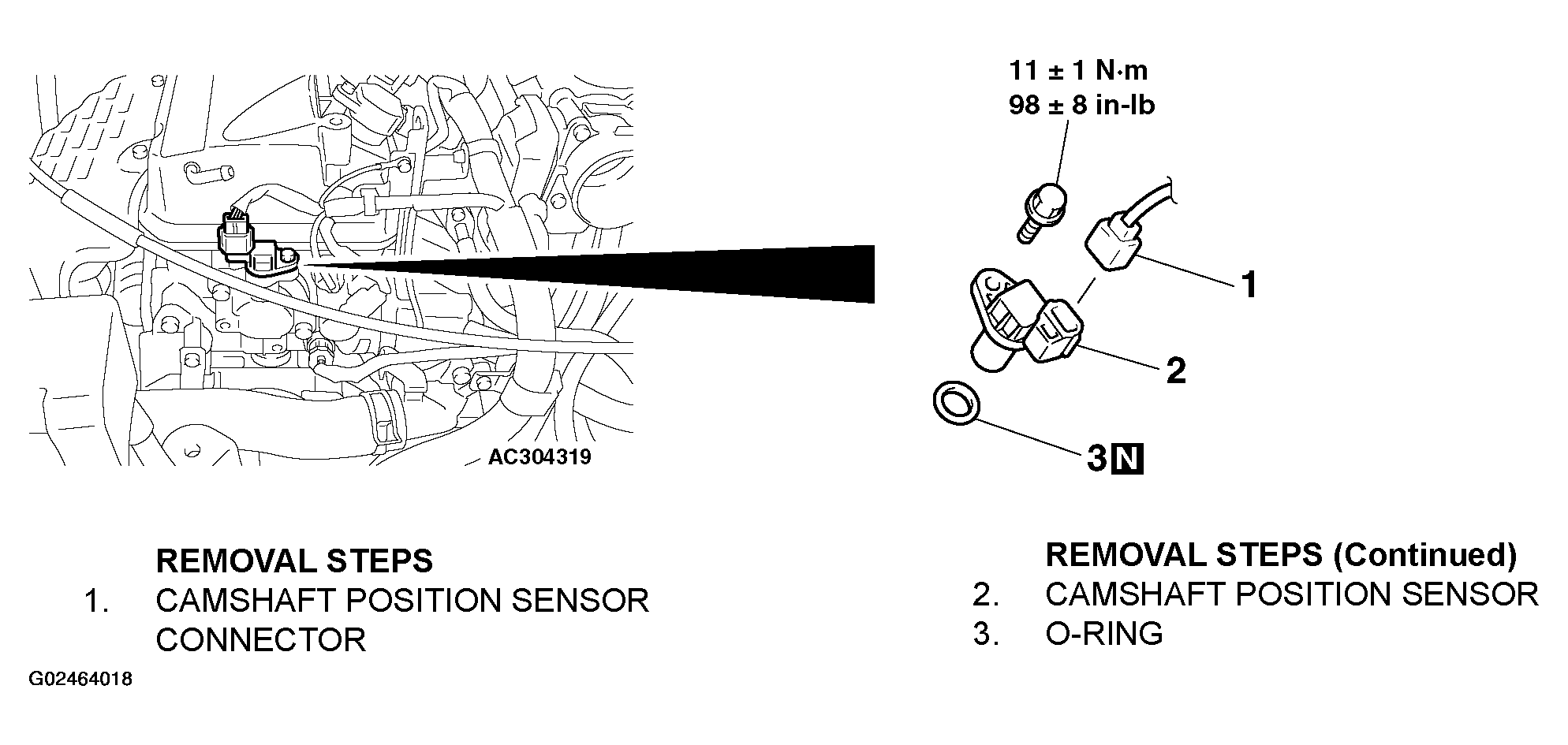

Fig 1: Removal Steps Of Camshaft Position Sensor - 2.4L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
