Side Impact Sensor

  1. Check that there is no bending or corrosion in the center pillar.
  2. Check that there is no denting, breakage or bending of the side impact sensor.
  3. Check that there is no clamping of the harness, connector damage or bent terminals.

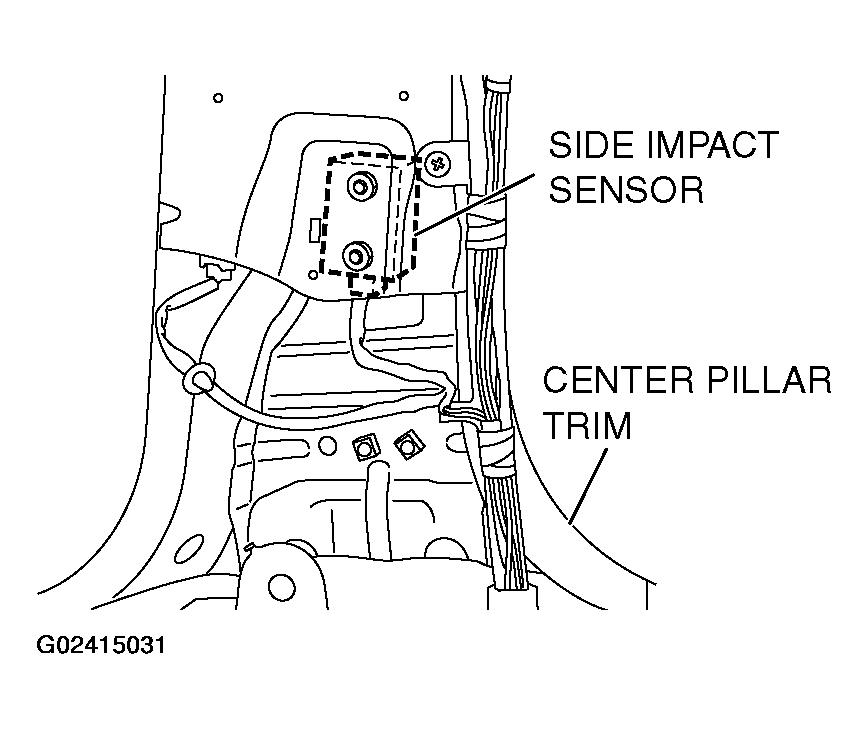

    NOTE: The illustration at left shows the side impact sensor (LH). The position of the side impact sensor (RH) is symmetrical to this.
    Fig 1: Identifying Side Impact Sensor
    G02415031Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
