FixVault
Home
›
Mitsubishi
›
2005
›
Lancer ES, Automatic
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Overhaul
›
Second Brake
›
Disassembly And Assembly
›
Notes
Disassembly And Assembly: Notes

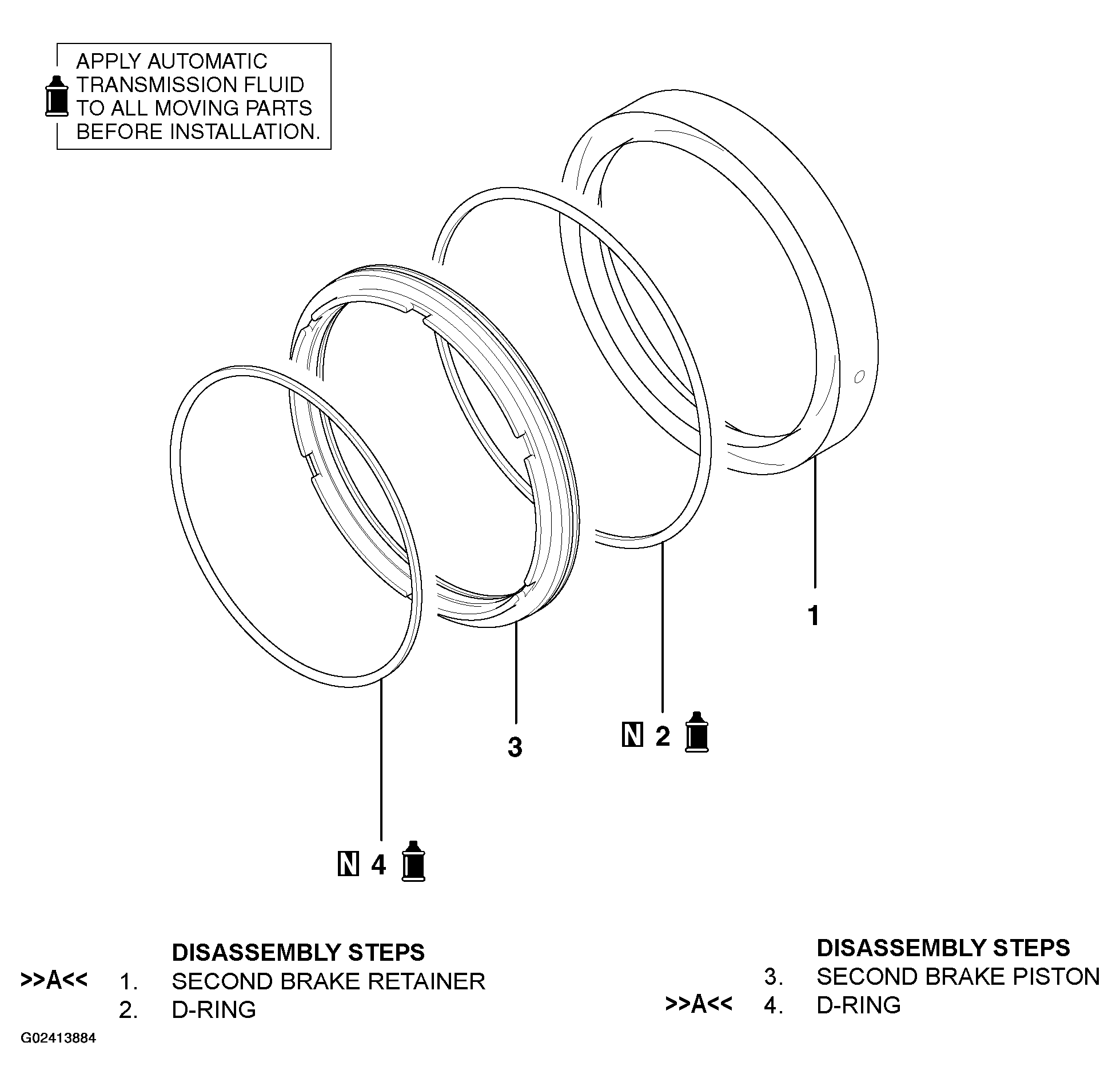

Fig 1: Exploded View Of Second Brake
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
