Emission Control -- Except Evolution: Diagnosis

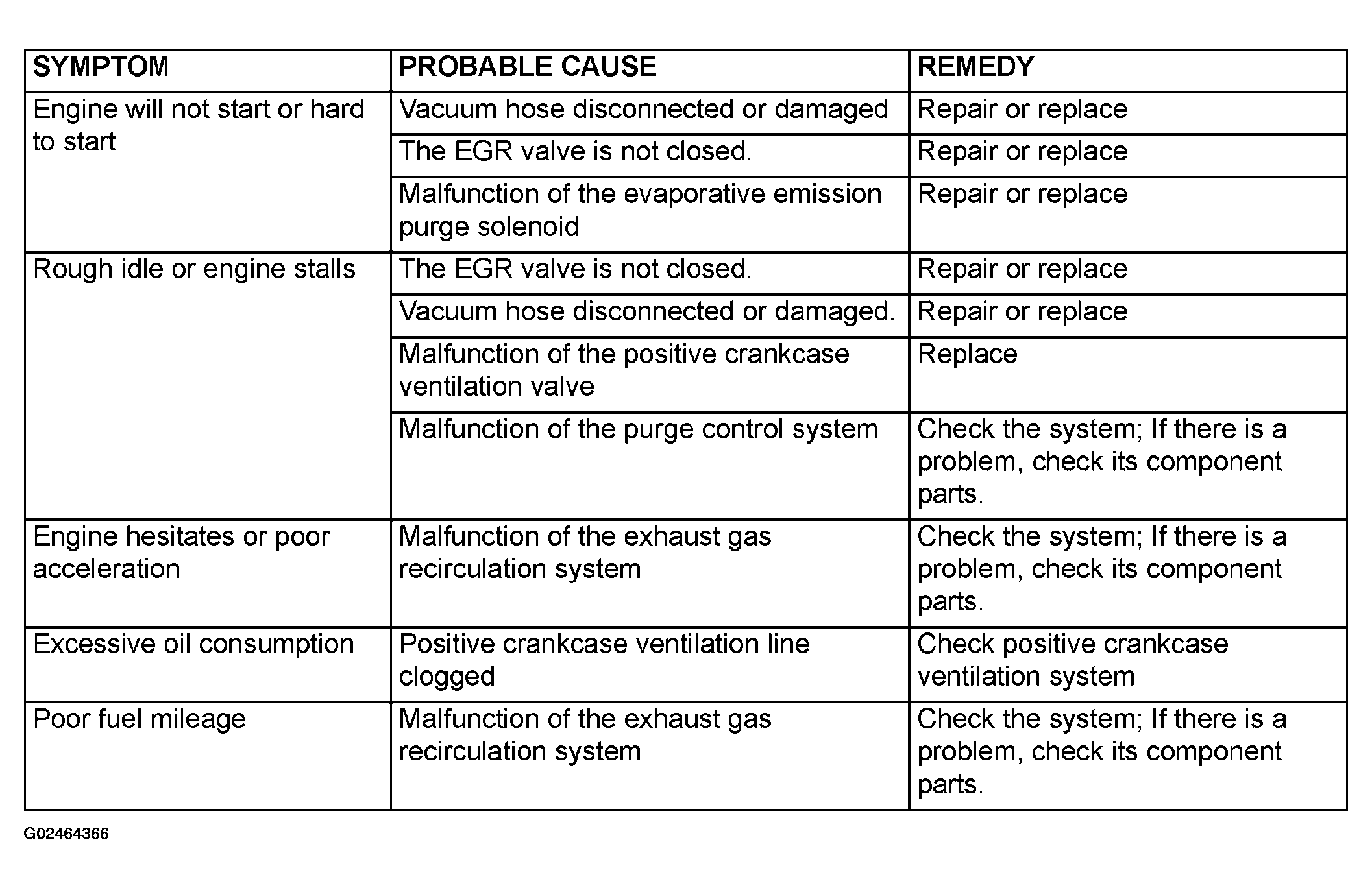

Fig 1: Emission Control Diagnosis Symptom Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
