Fan Control Relay Continuity Check

WARNING: This page is about a different variant/trim than selected.

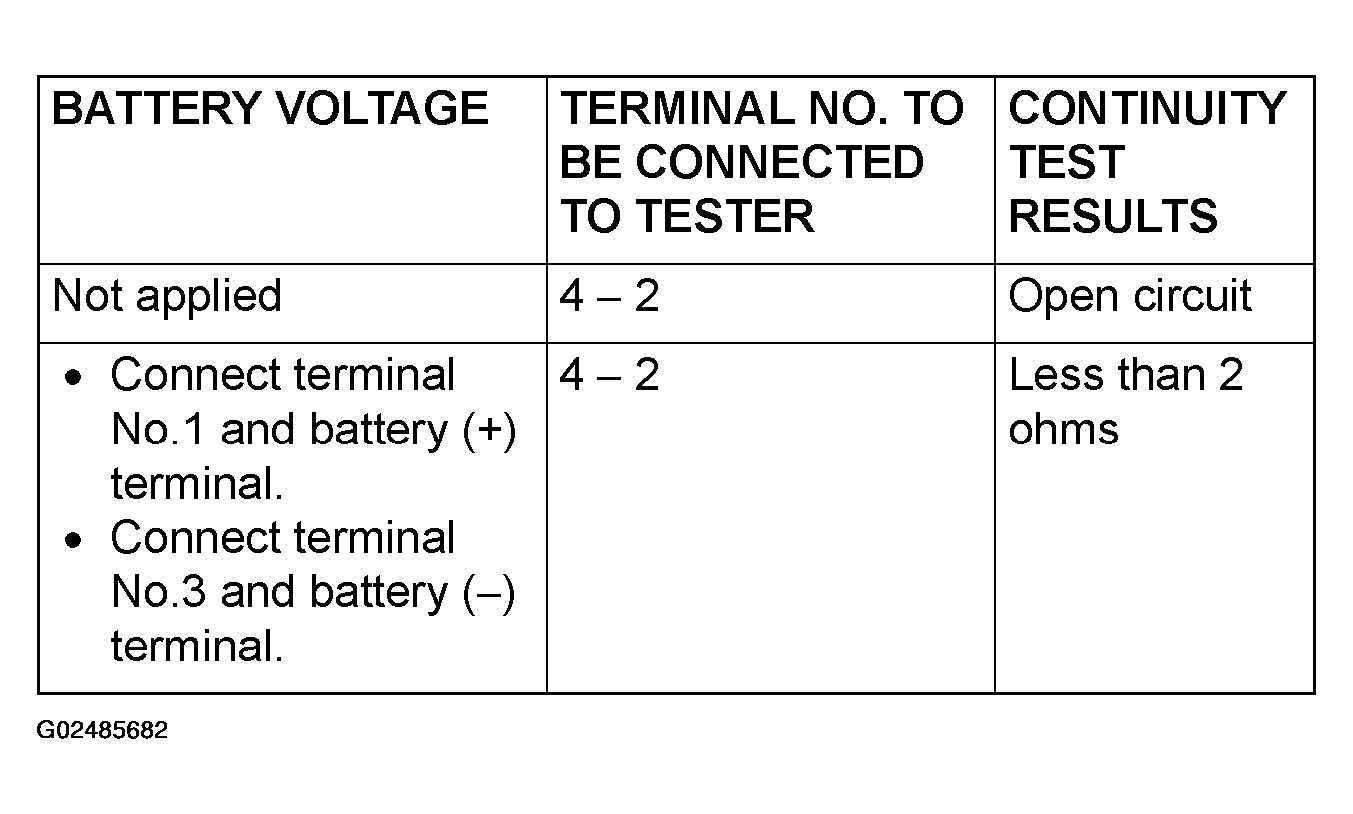

Fig 1: Checking Fan Control Relay Continuity
G02485682Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

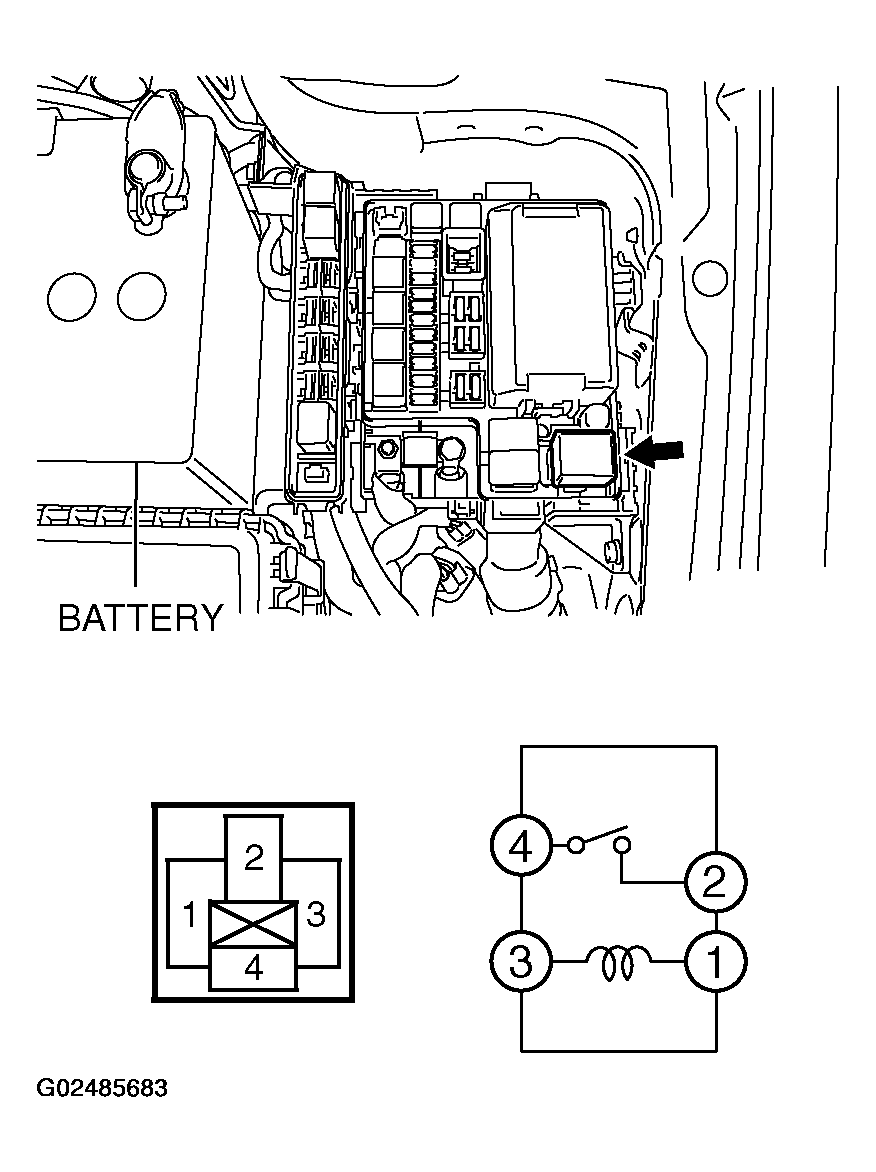

Fig 2: Fan Control Relay Continuity Checks
G02485683Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
