Front Floor Console Assembly
›
Removal And Installation
Removal And Installation

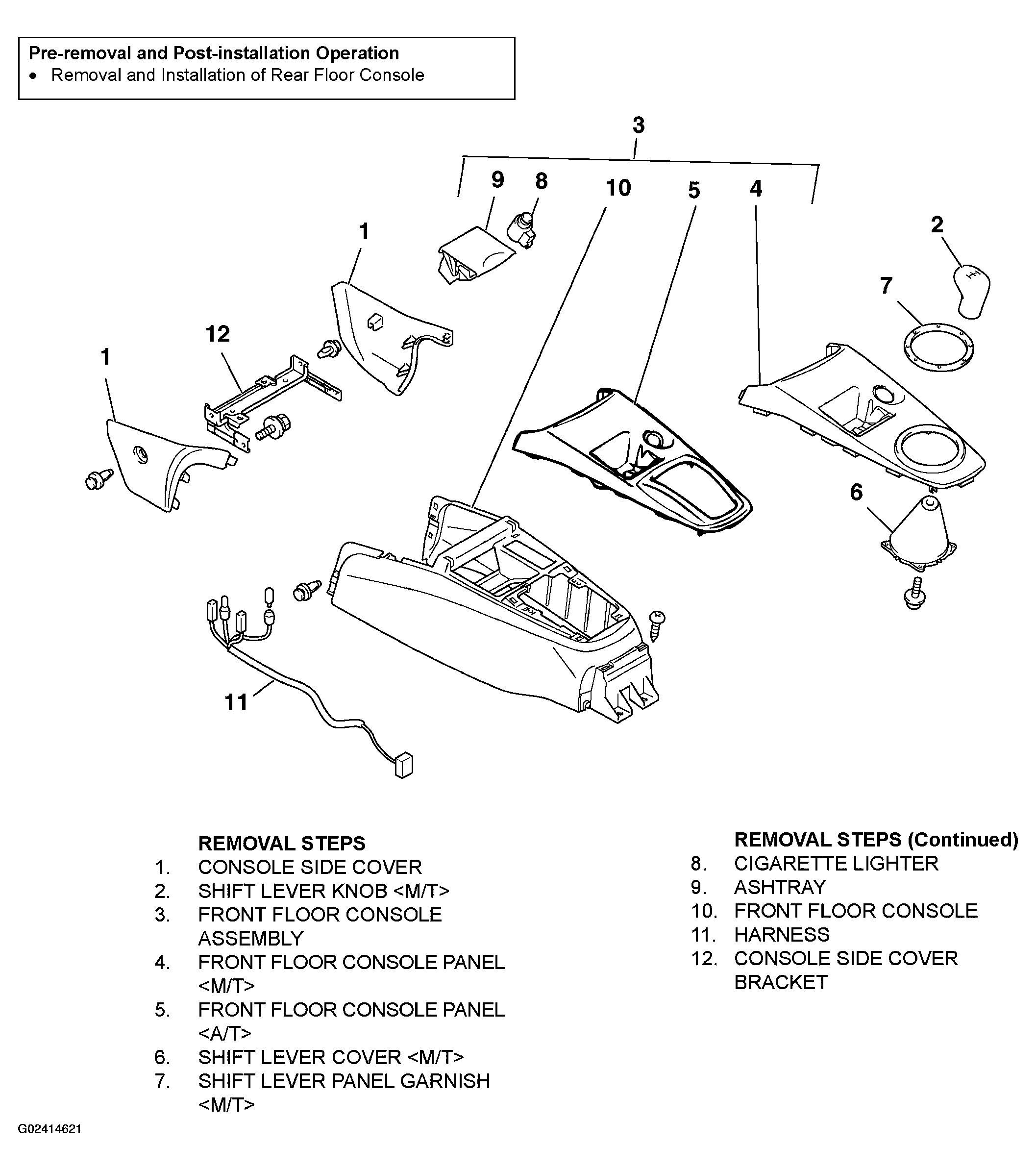

Fig 1: Exploded View Of Front Floor Console Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
