Removal And Installation: Notes

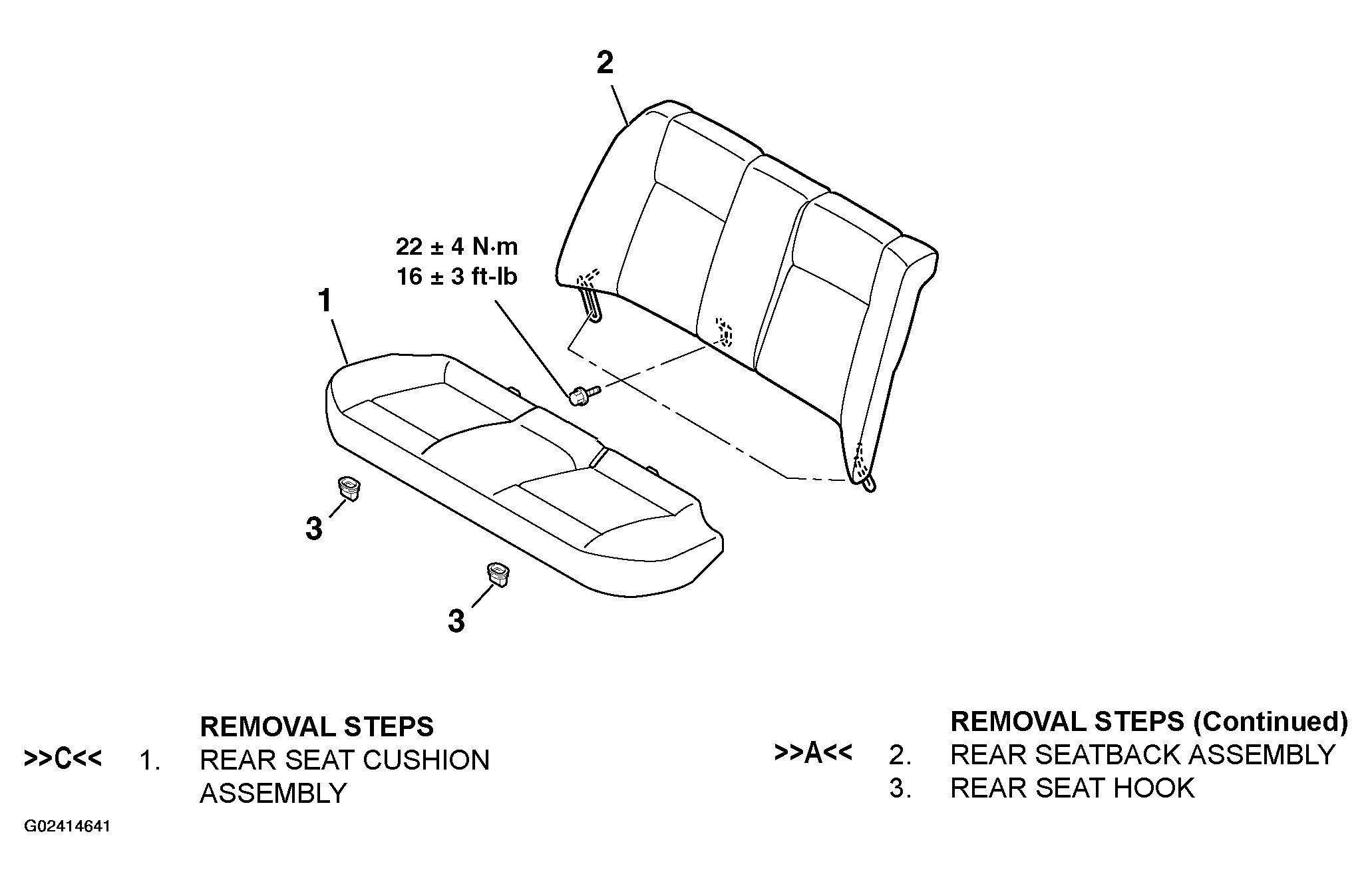

Fig 1: Removing /Installing Rear Seat Assembly (Full Seat)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

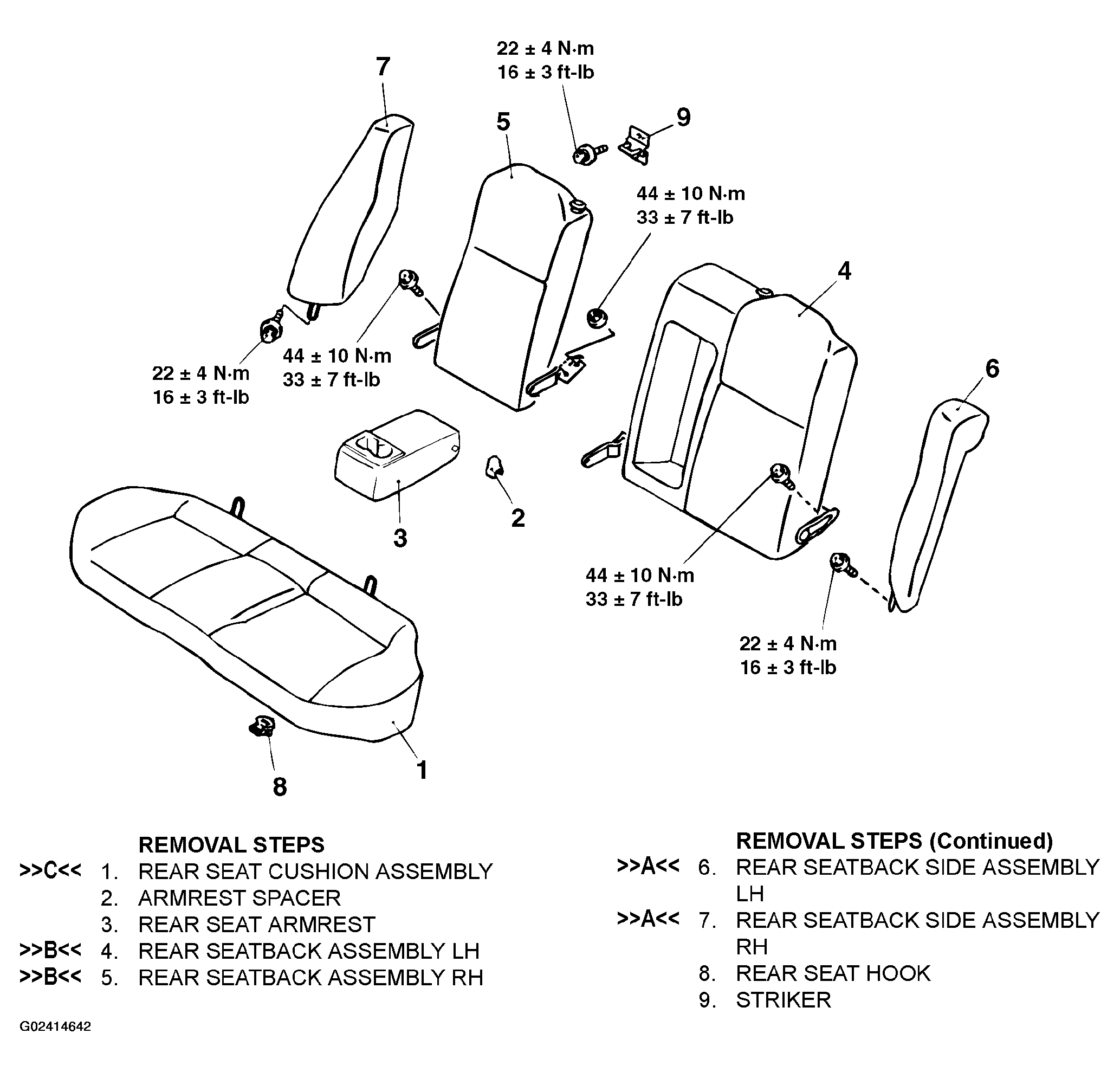

Fig 2: Removing /Installing Rear Seat Assembly (Split Seat)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
