Chassis Electrical -- Evolution
›
Rear Window Defogger
›
Rear Window Defogger
›
Inspection
›
Defogger Relay Check
Defogger Relay Check

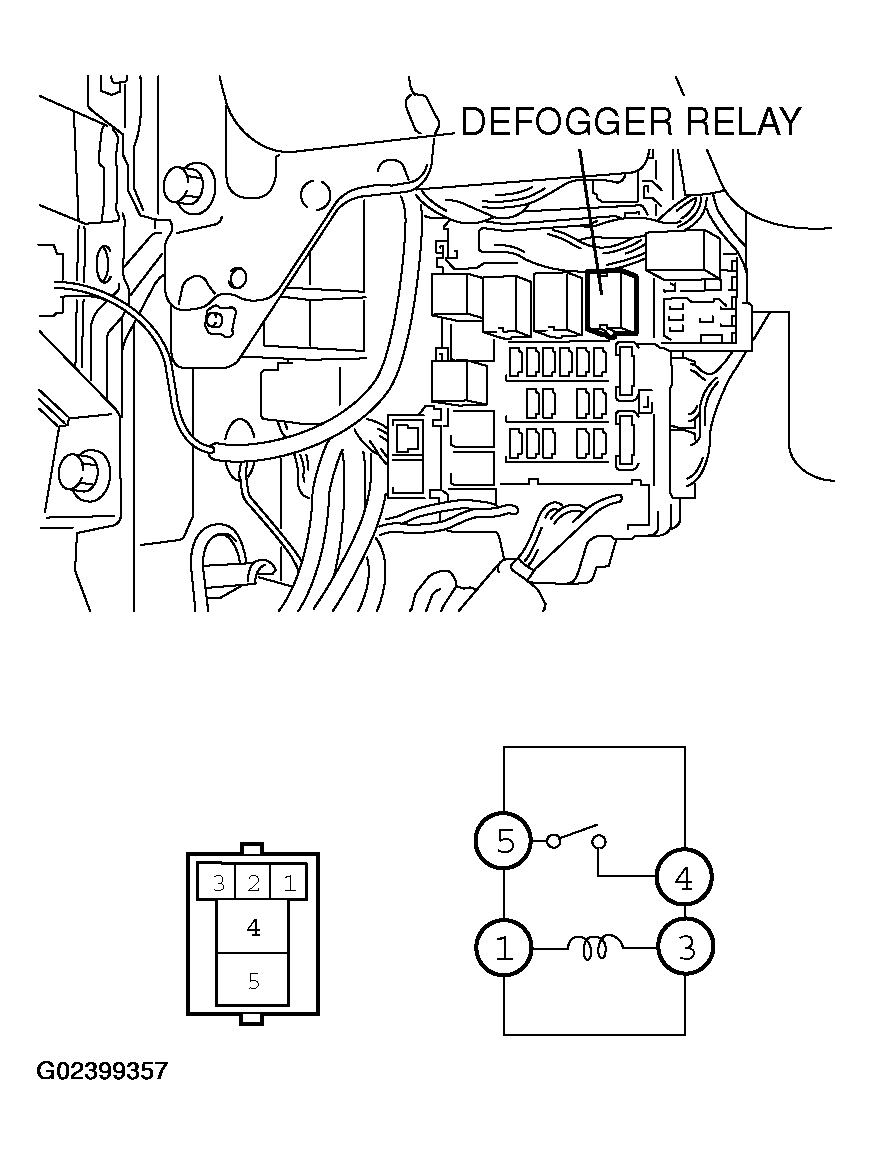

Fig 1: Checking Defogger Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

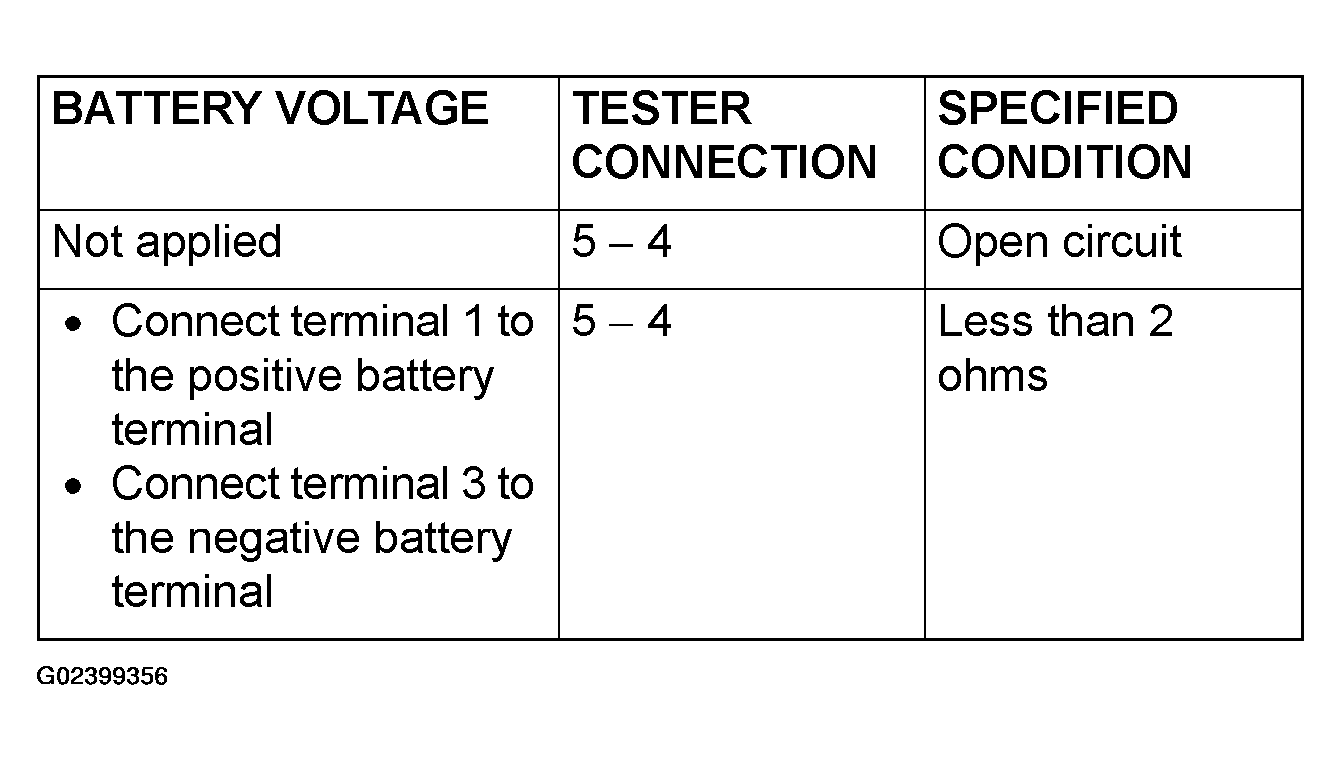

Fig 2: Tester Connection Specified Condition Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
