Section 2 (Overhaul -- Evolution)
›
Special Tools
Special Tools
WARNING:
This page is about a different variant/trim than selected.

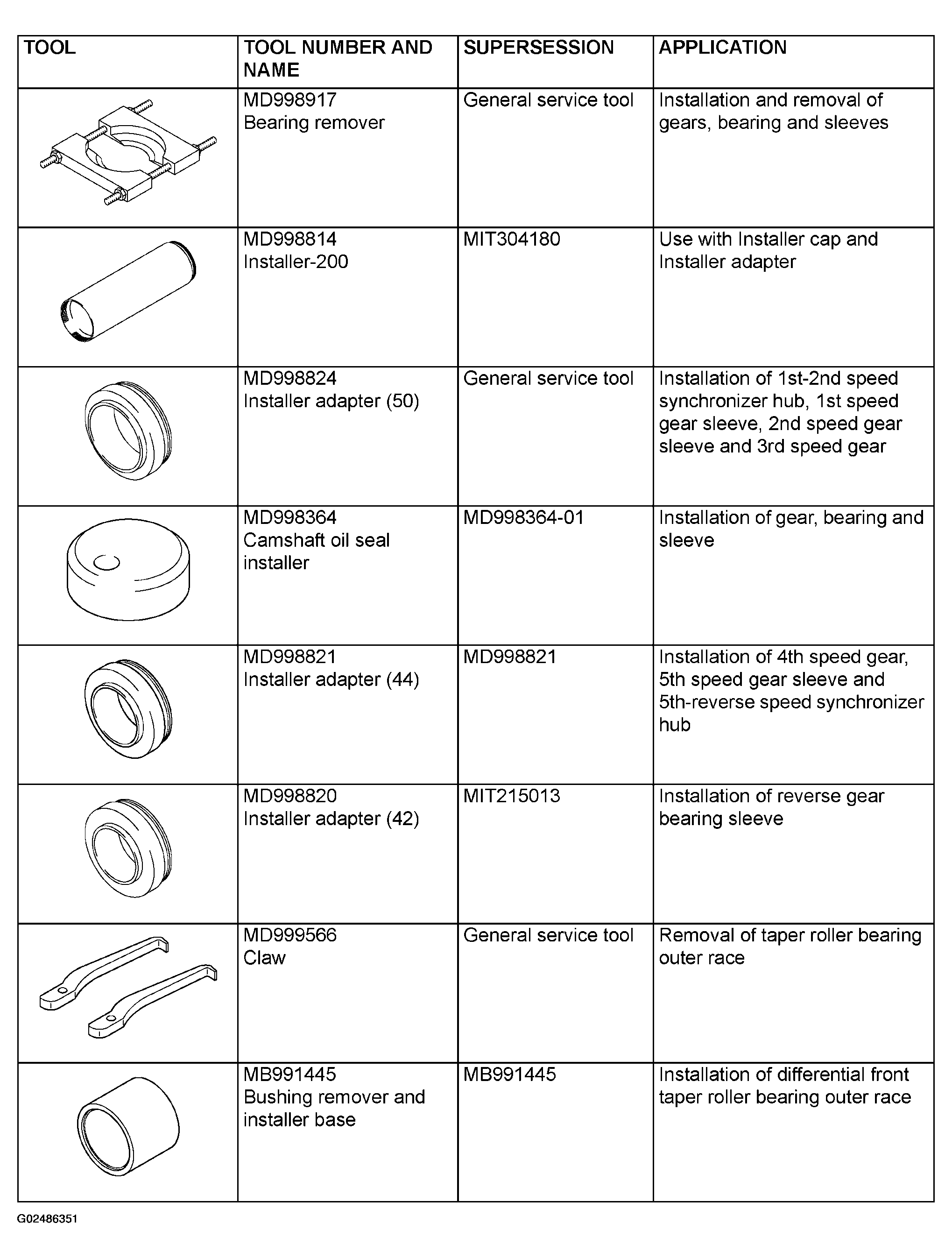

Fig 1: Special Tools Specifications (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

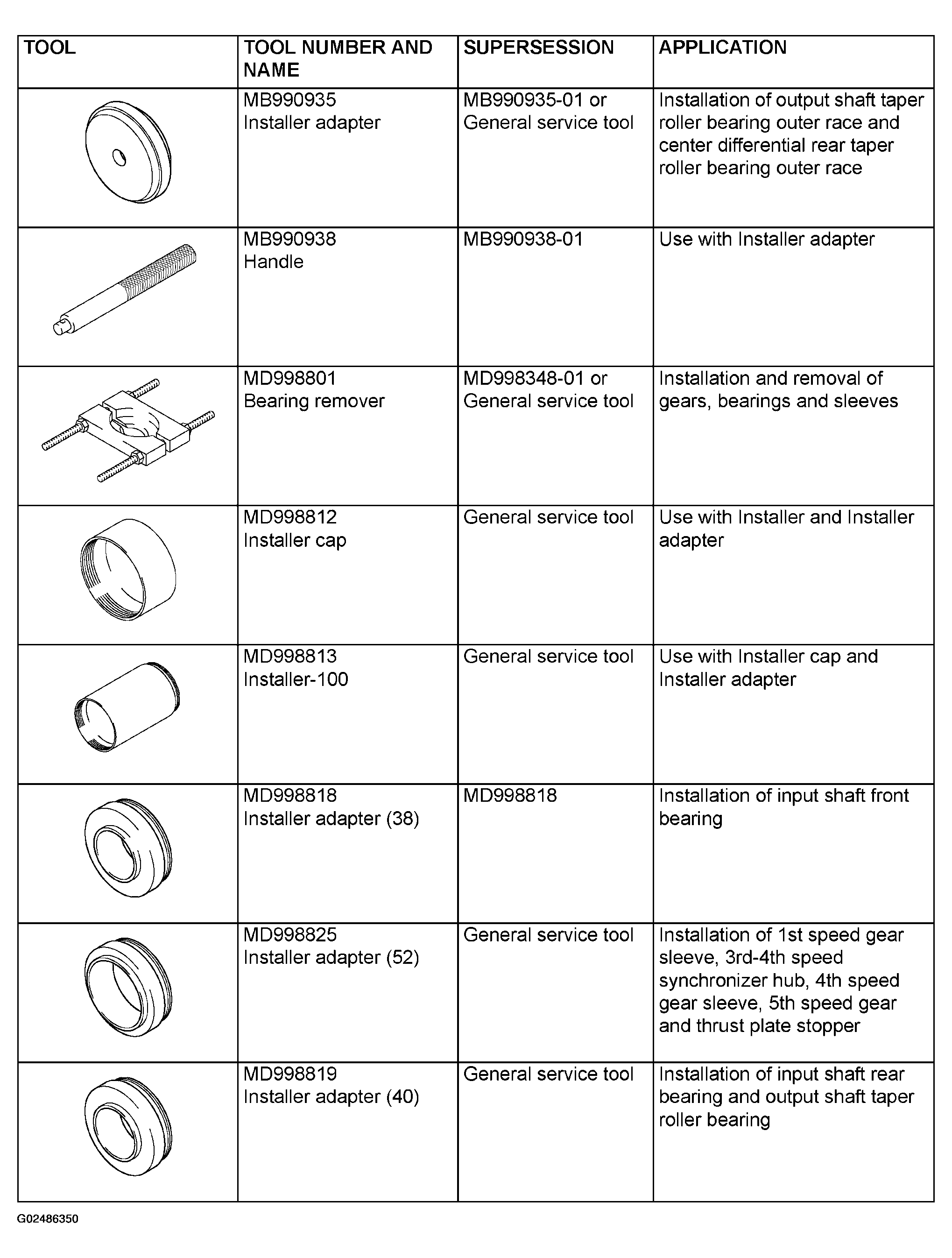

Fig 2: Special Tools Specifications (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

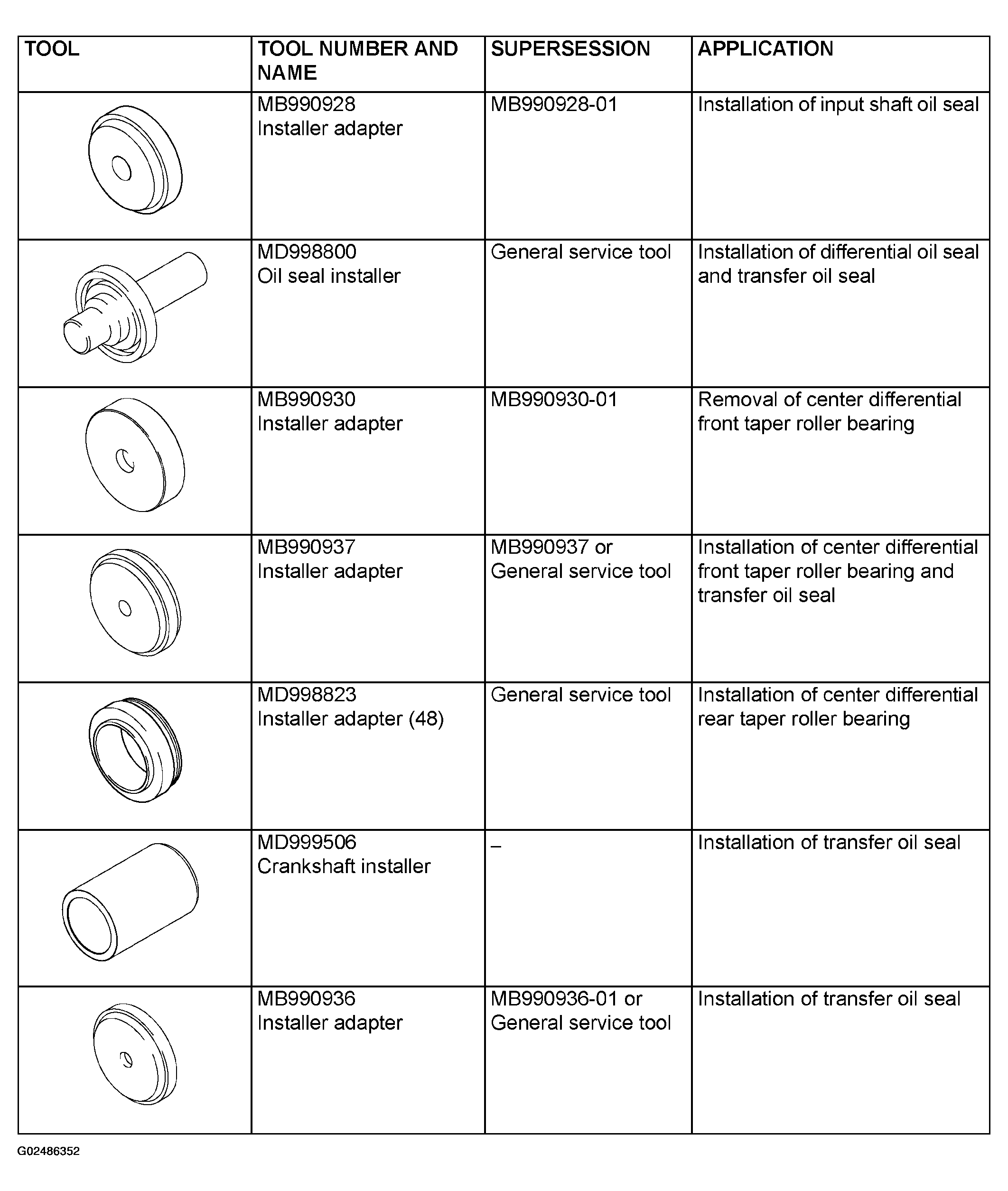

Fig 3: Special Tools Specifications (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
