Overhaul -- Evolution MR
›
Special Tools
Special Tools

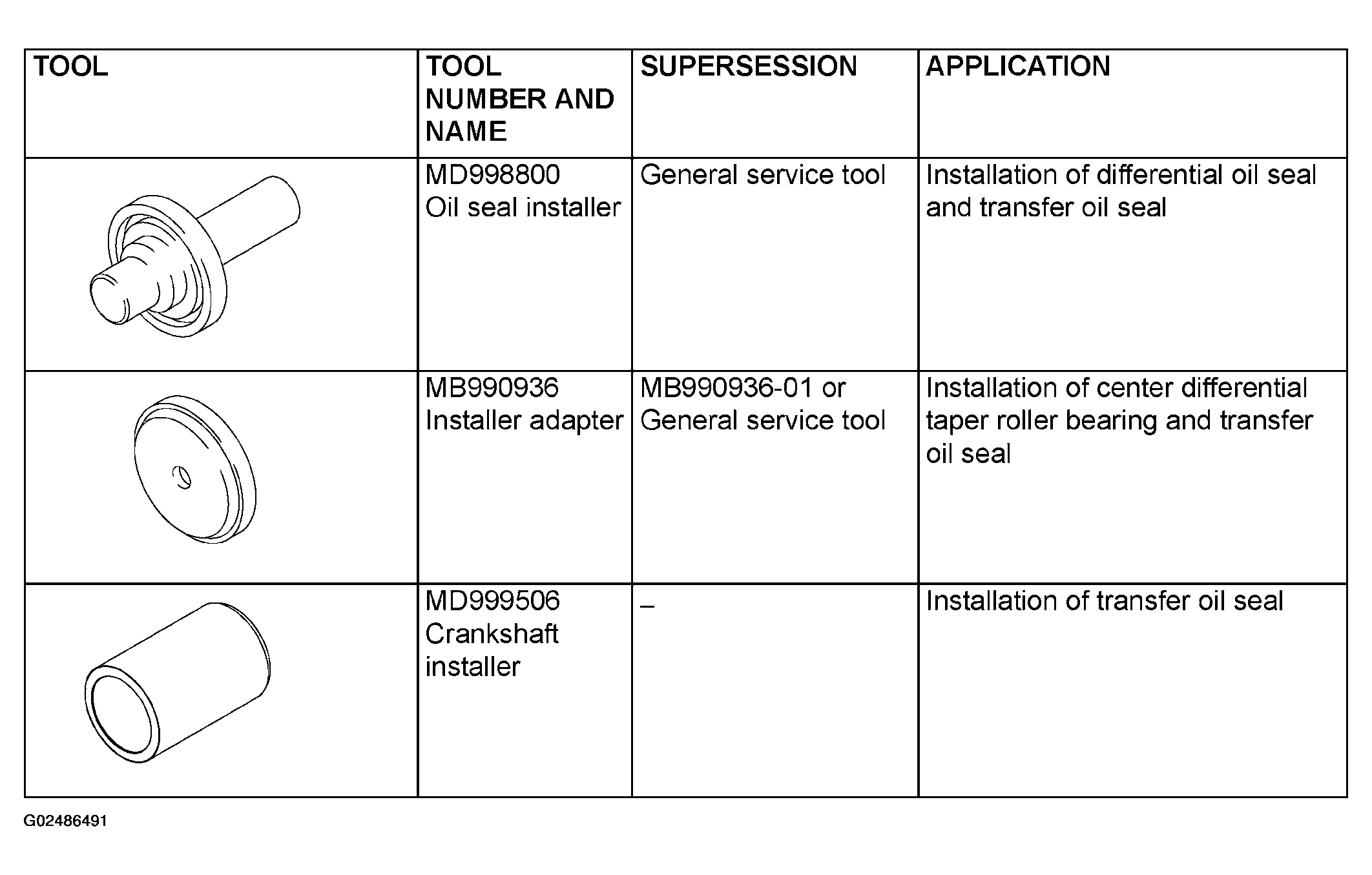

Fig 1: Special Tools Specifications (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Special Tools Specifications (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Special Tools Specifications (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
