Power Window Relay Check

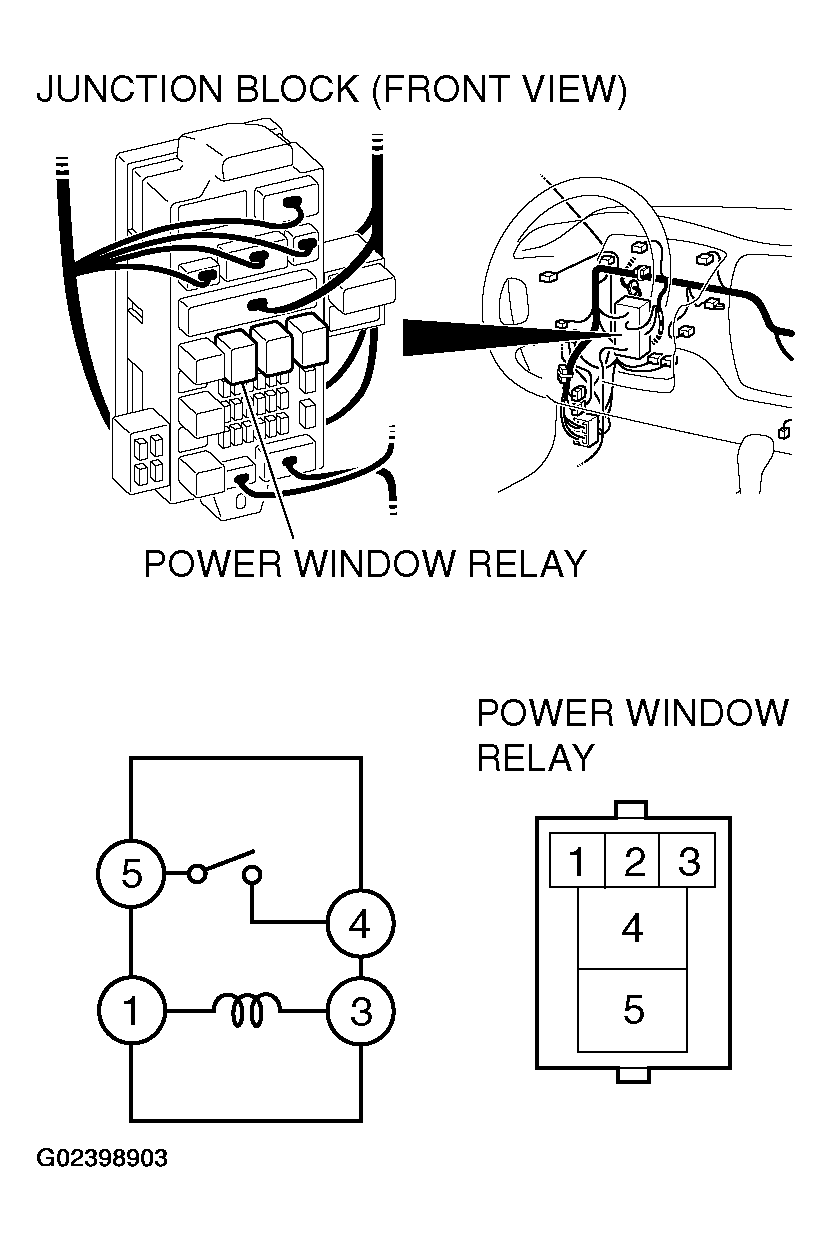

Fig 1: Checking Power Window Relay
G02398902Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

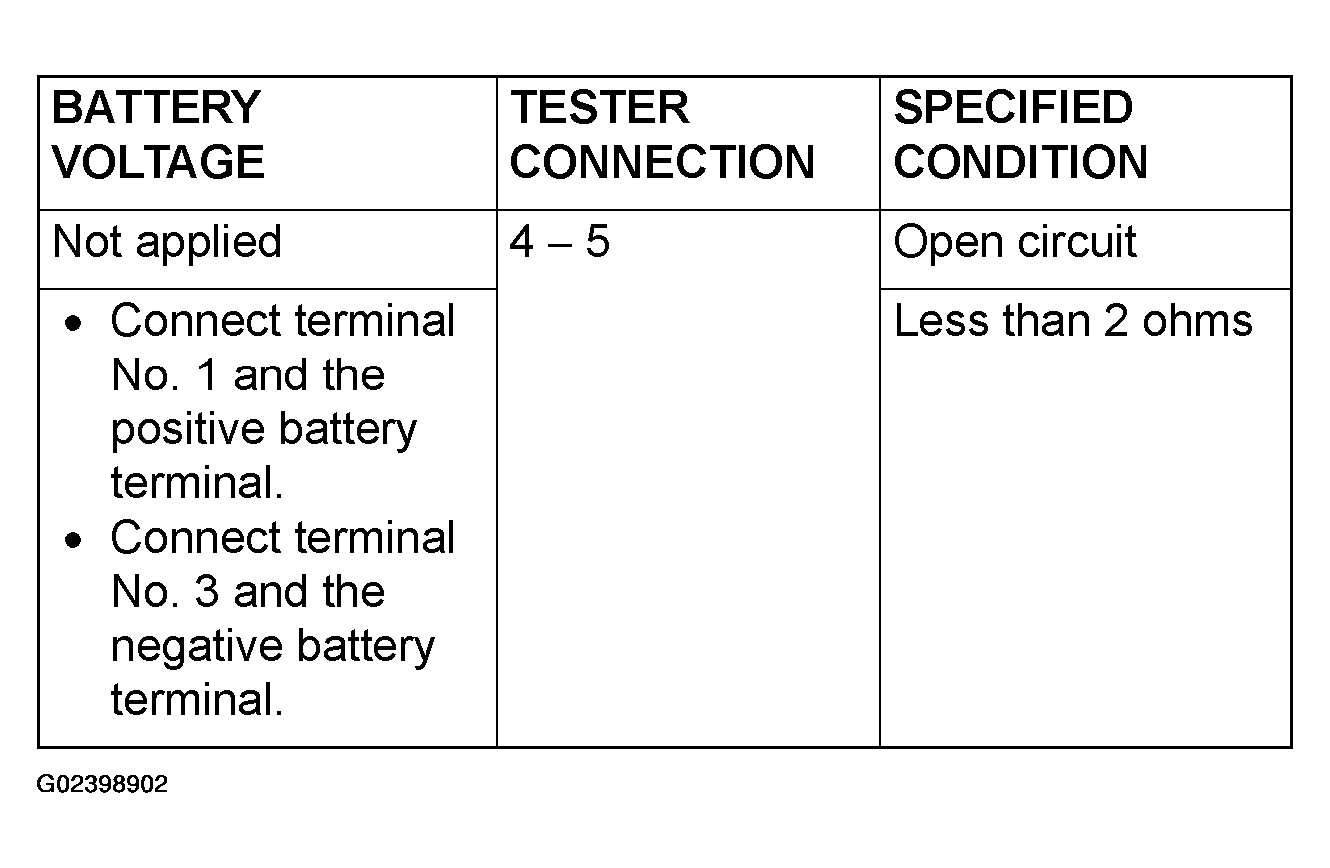

Fig 2: Tester Connection Specified Condition Chart
G02398903Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
