Component Location

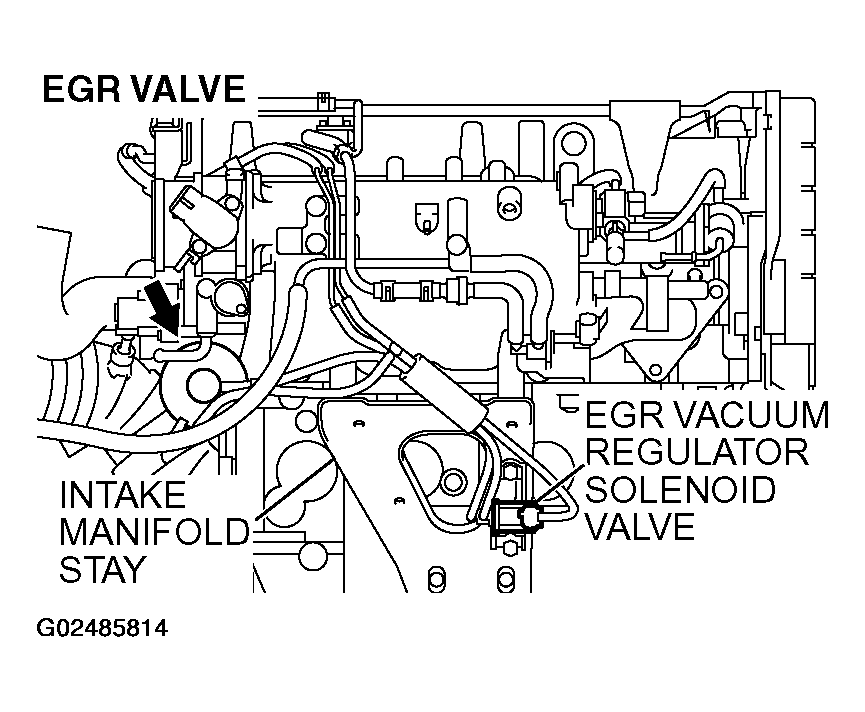

Fig 1: Identifying Exhaust Gas Recirculation (EGR) Component Location
G02485814Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

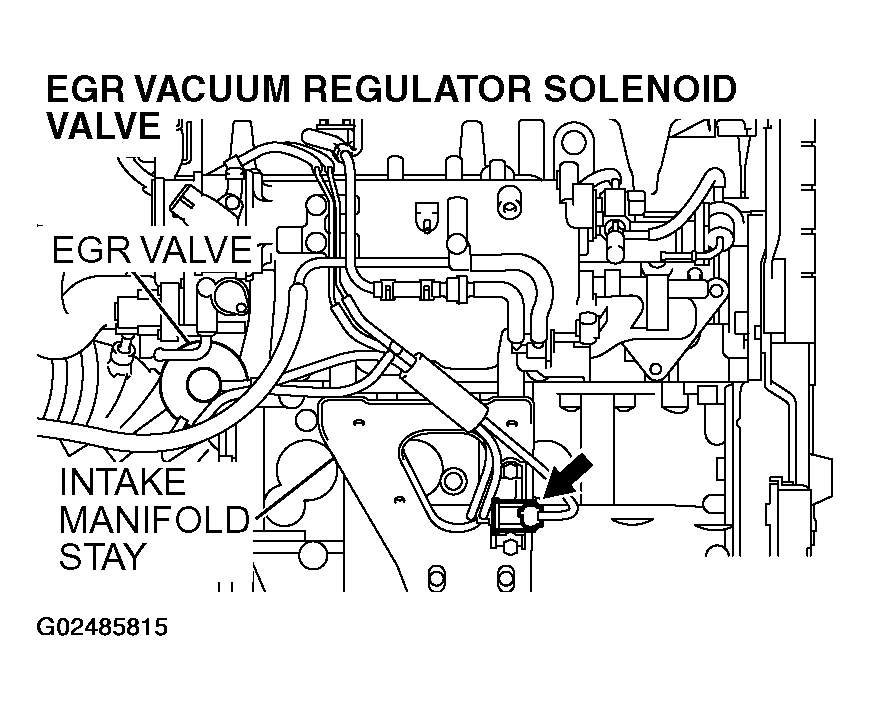

Fig 2: Identifying EGR Vacuum Regulator Solenoid Valve
G02485815Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
