Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

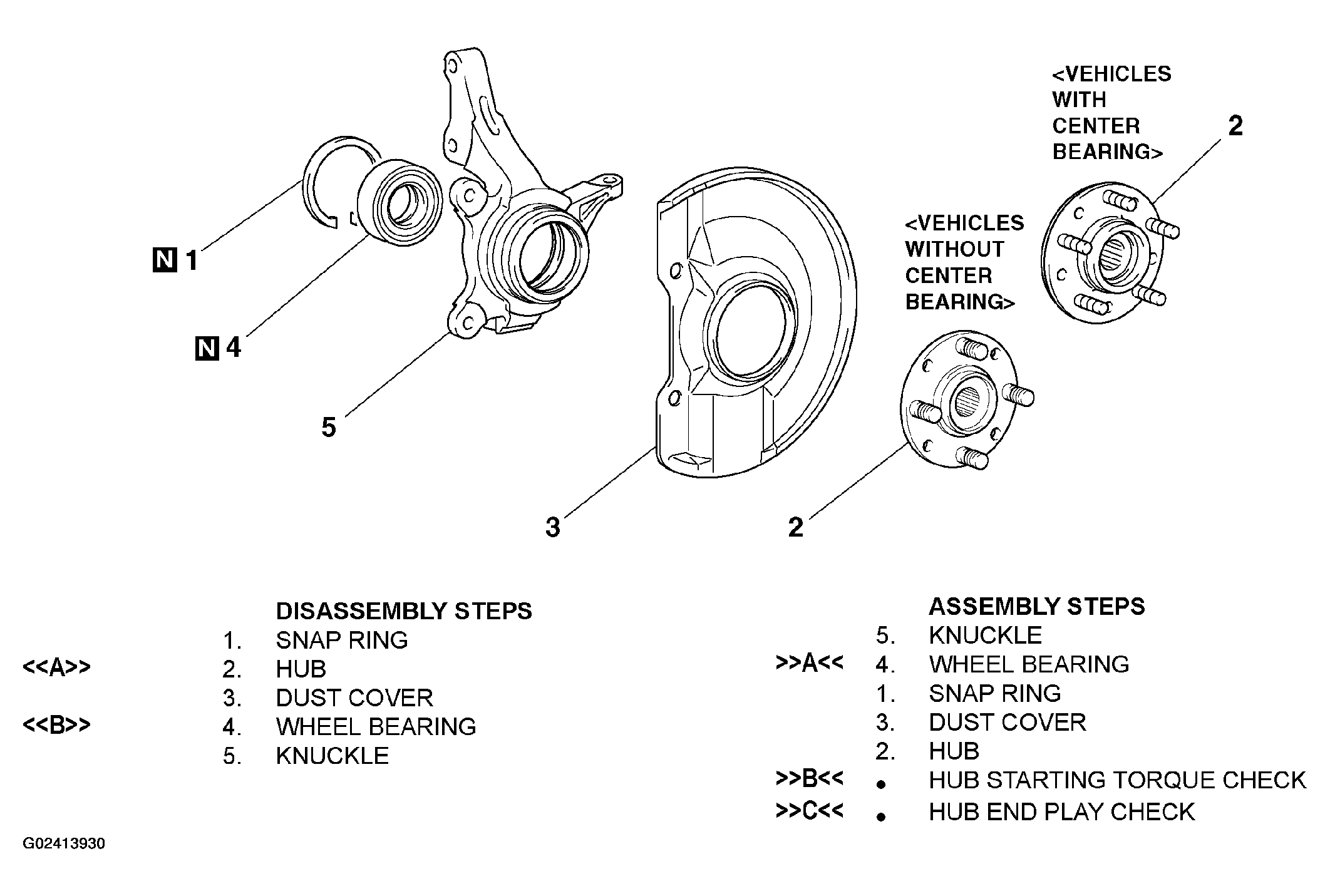

Fig 1: Identifying Front Axle Hub Assembly

G02413930

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990326: Prelaod Socket
MB990685: Torque Wrench
MB990810: Side bearing puller
MB990933: Installer Adapter
MB990935: Installer Adapter
MB990938: Bar
MB991000: Spacer
MB991017: Front Hub Remover and Installer
MB990883: Rear Suspension Bushing Arbor
MB990890: Rear Suspension Bushing Base
MB991050: Base (B)
MB991056 or MB991355: Knuckle arm bridge
