Section 8 (Interior -- Except Evolution)
›
Instrument Panel Assembly
›
Disassembly And Assembly
Disassembly And Assembly
WARNING:
This page is about a different variant/trim than selected.

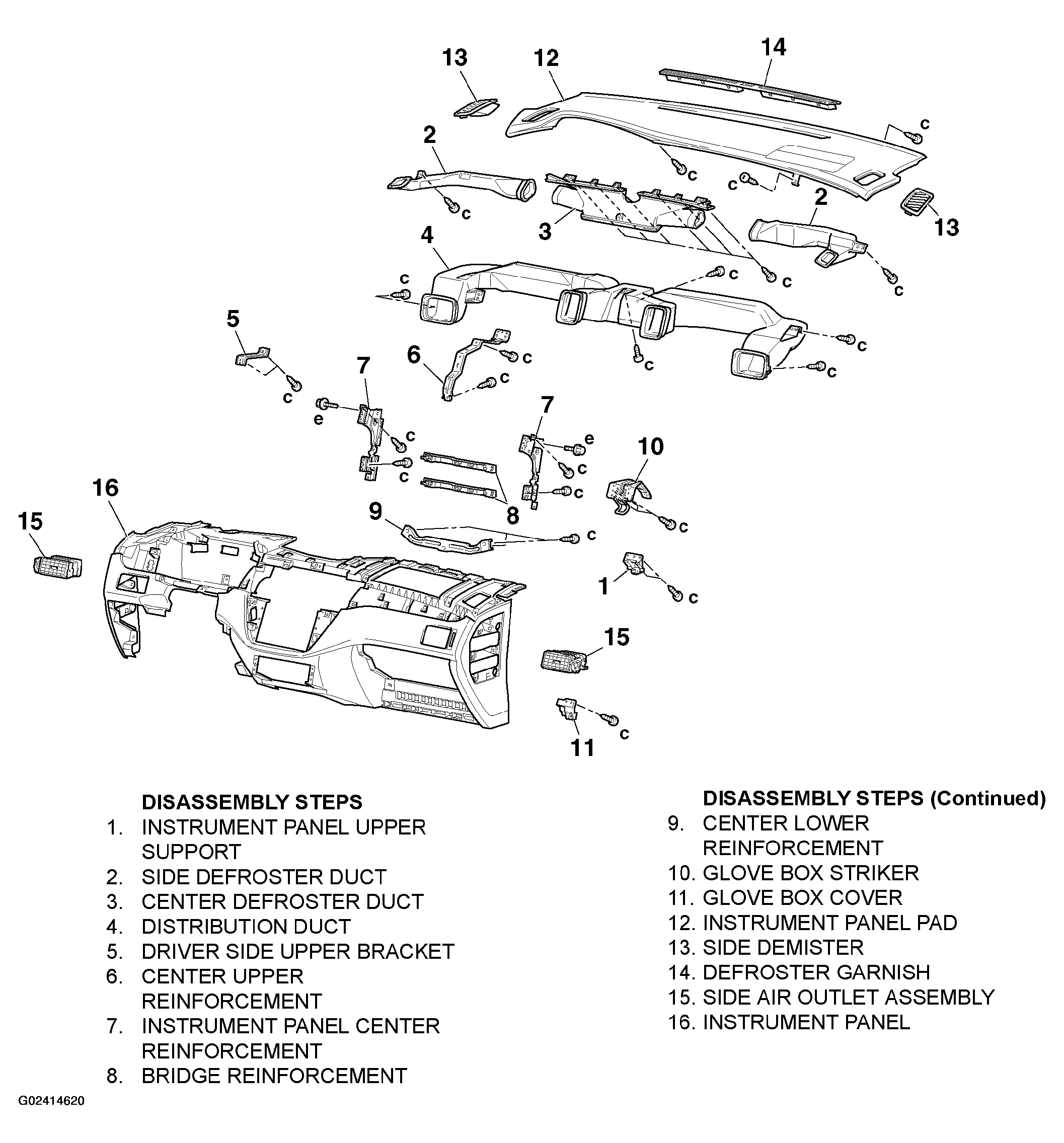

Fig 1: Exploded View Of Instrument Panel Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
