Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

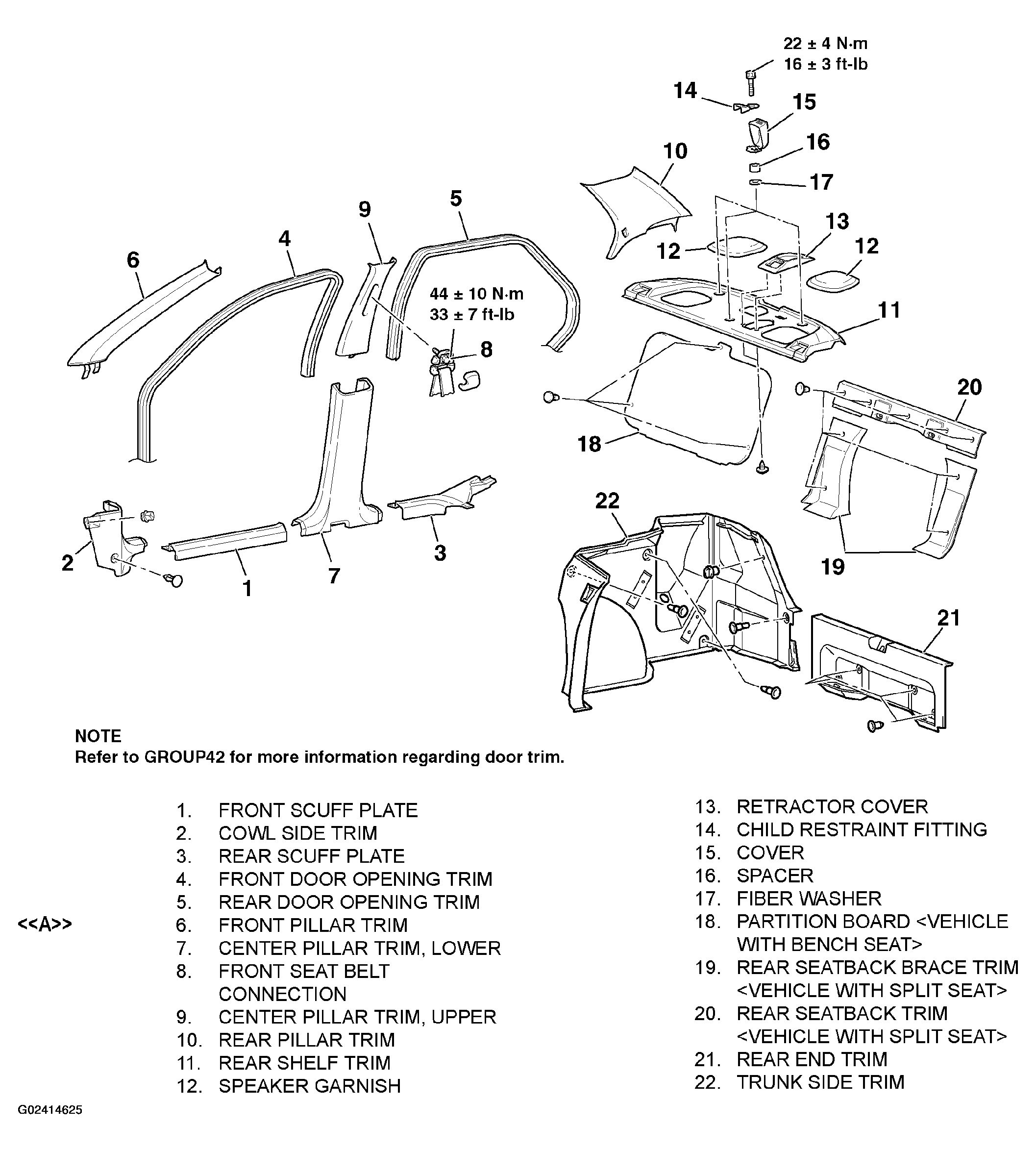

Fig 1: Exploded View Of Trims
G02414625Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
