Mitsubishi
›
2005
›
Lancer Evolution RS
›
Repair and Diagnosis
›
General Information
›
OEM General Information
›
General -- Evolution
›
Main Sealant And Adhesive Table
Main Sealant And Adhesive Table

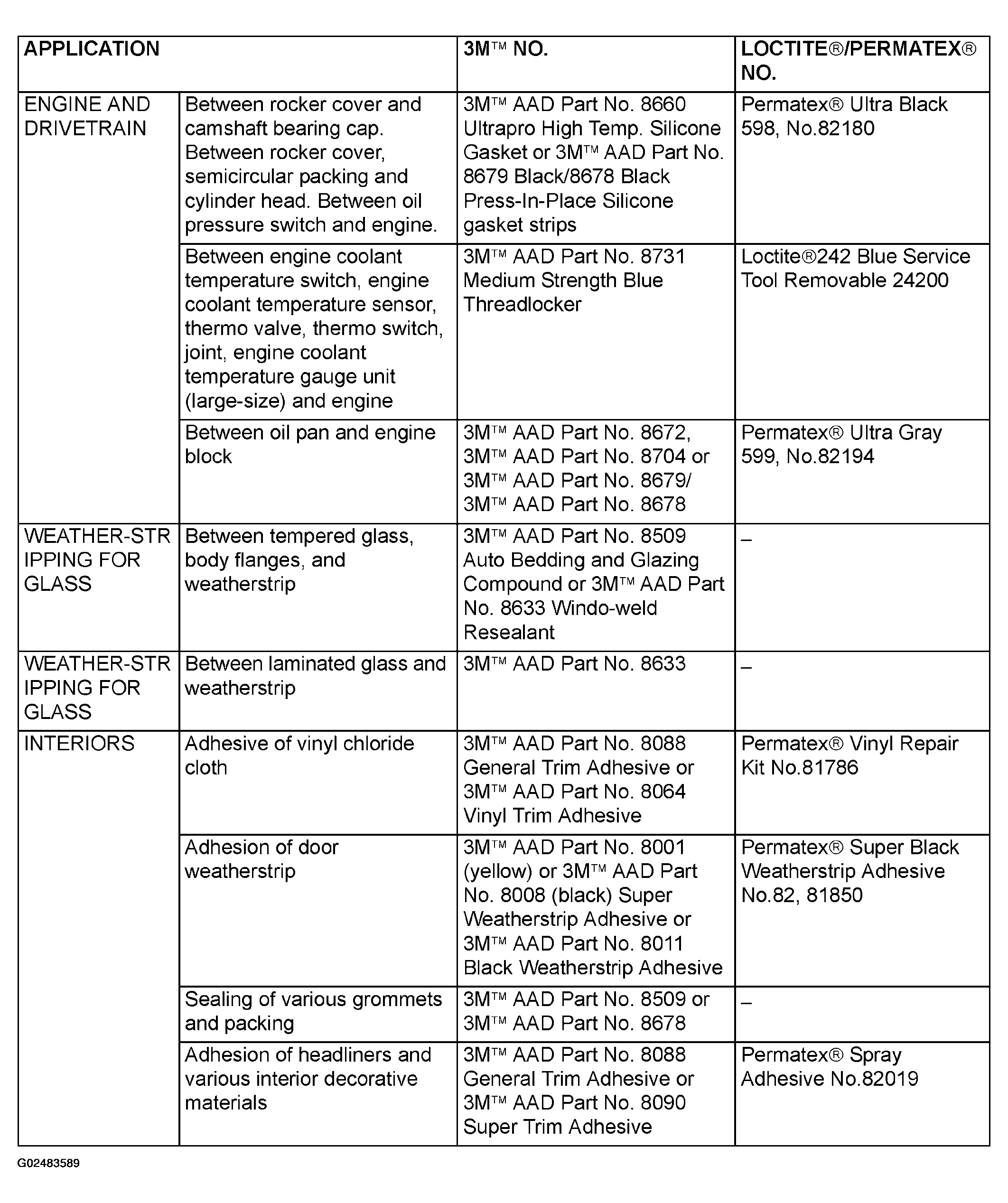

Fig 1: Main Sealant And Adhesive Chart (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

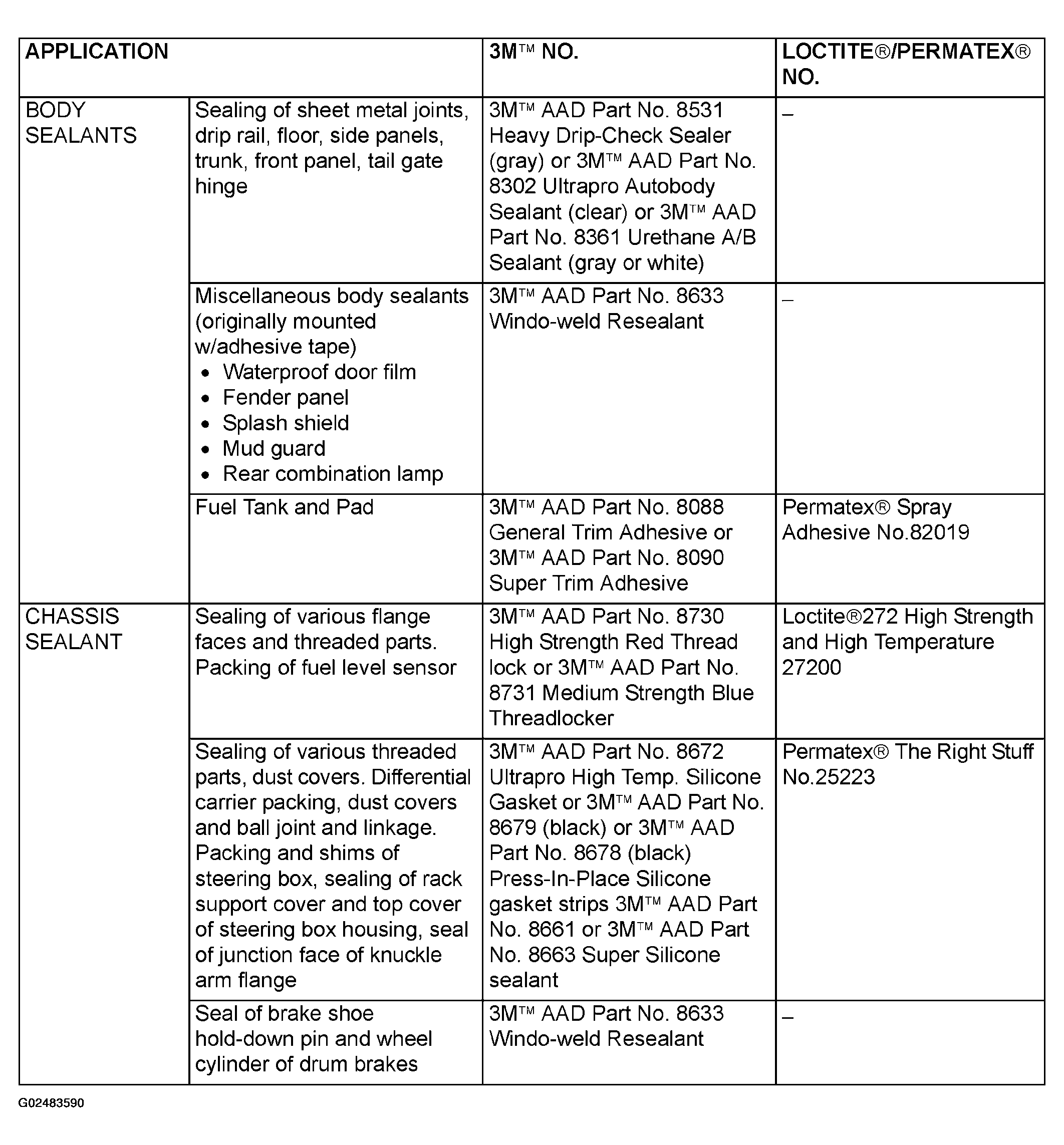

Fig 2: Main Sealant And Adhesive Chart (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

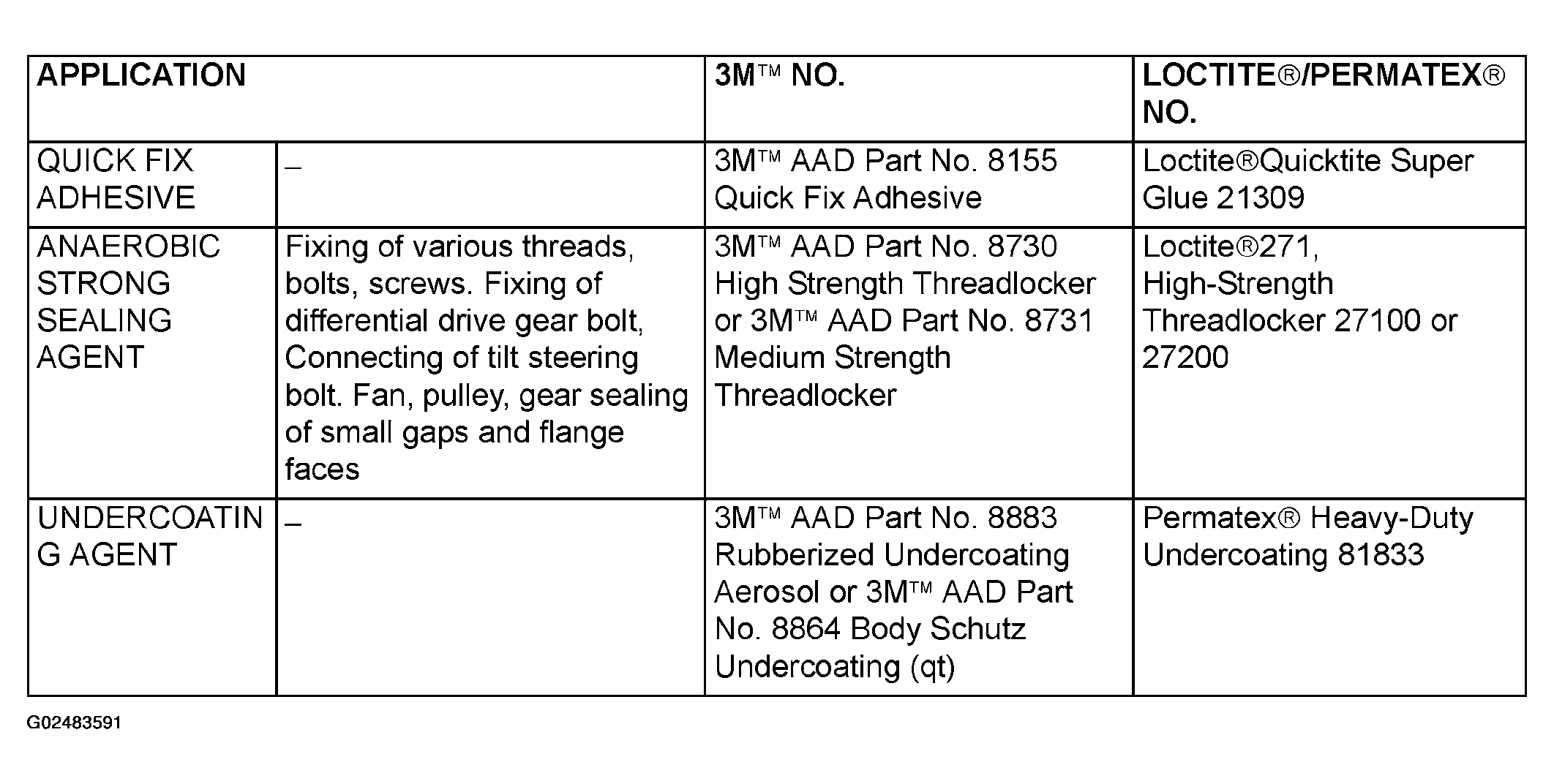

Fig 3: Main Sealant And Adhesive Chart (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
