Knock Sensor Connector End View (B-108)
Knock Sensor Connector End View (B-108)

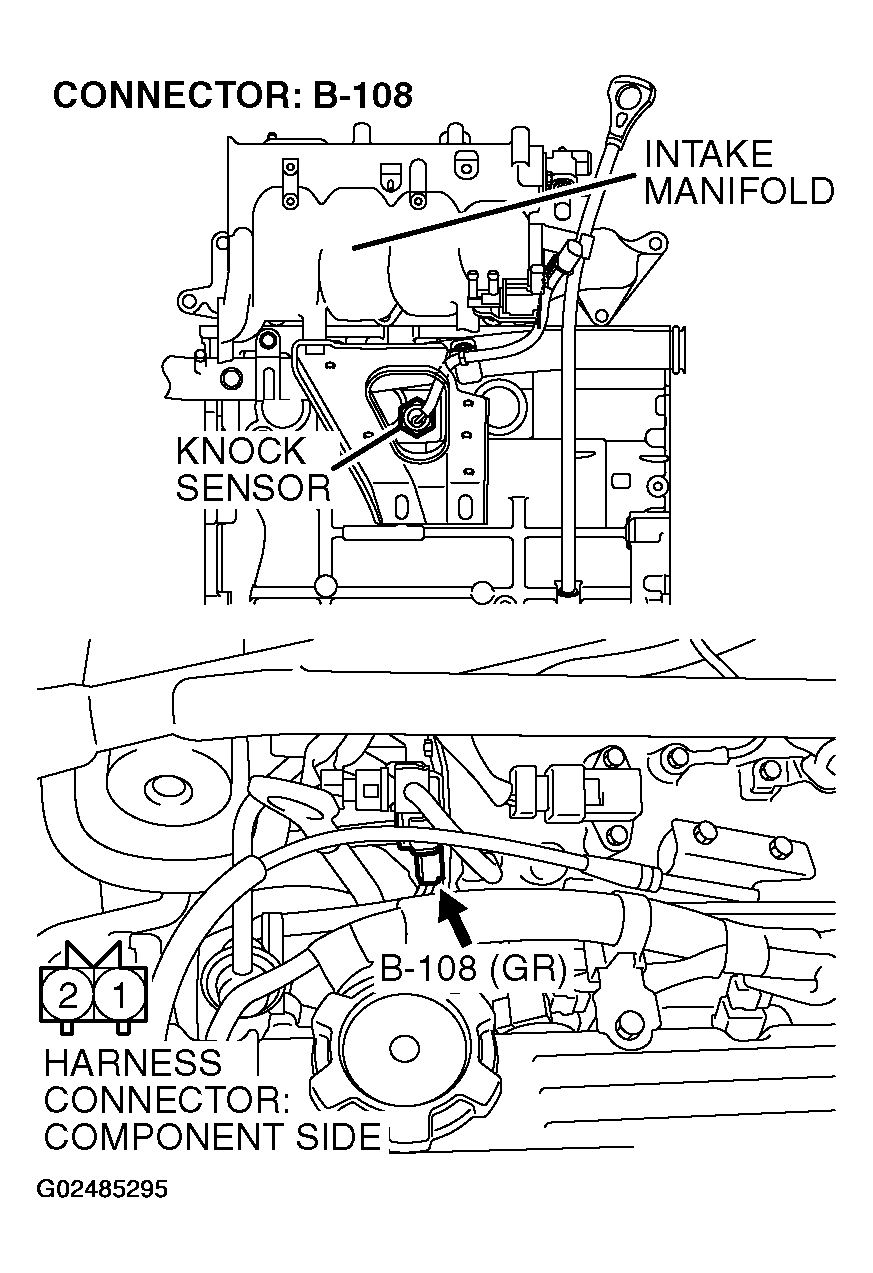

Fig 1: Knock Sensor Connector End View (B-108)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
