Disassembly And Assembly

< STANDARD FEATURE >

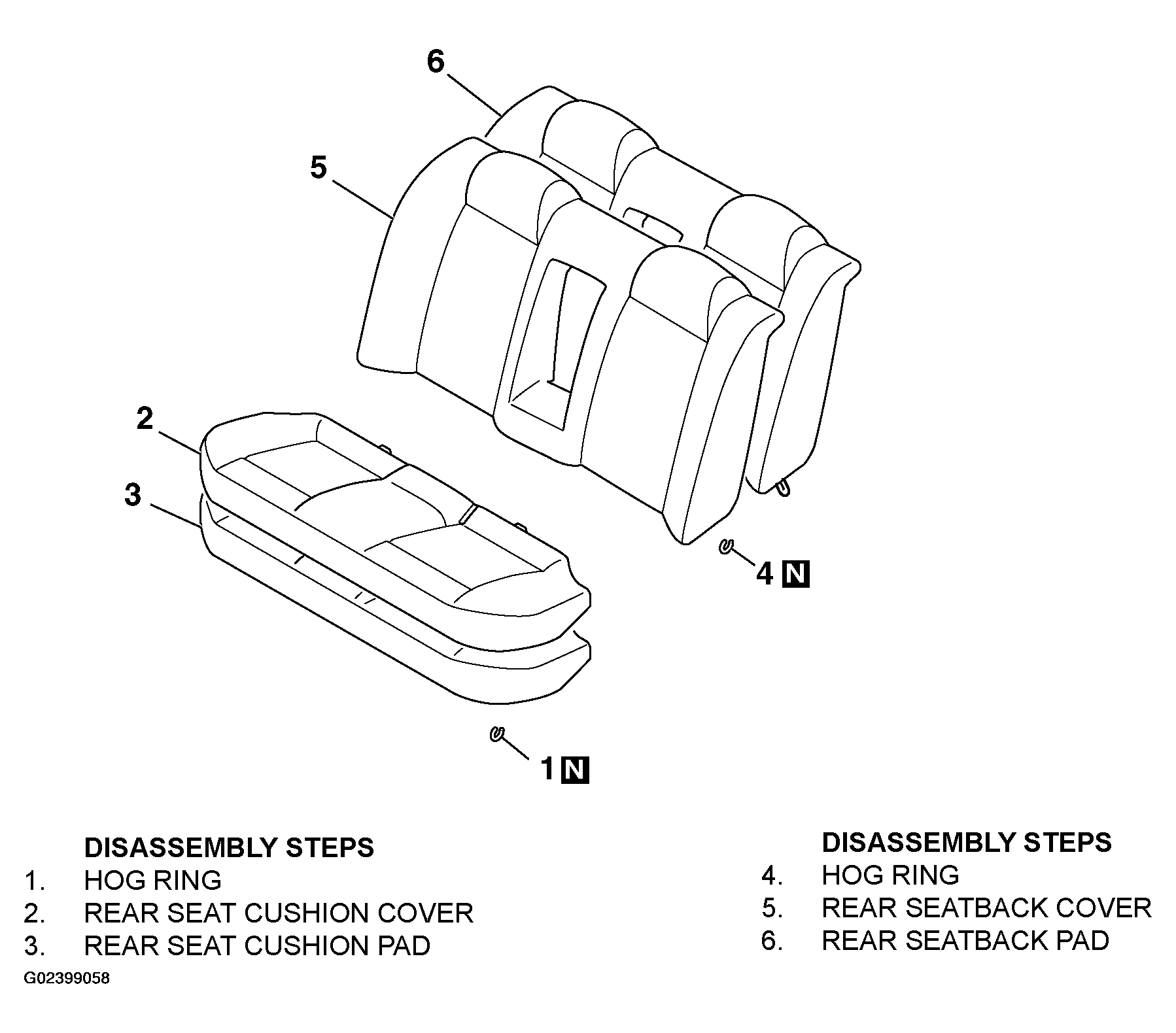

Fig 1: Identifying Rear Seat Assembly Components (Standard Feature)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

< OPTION >

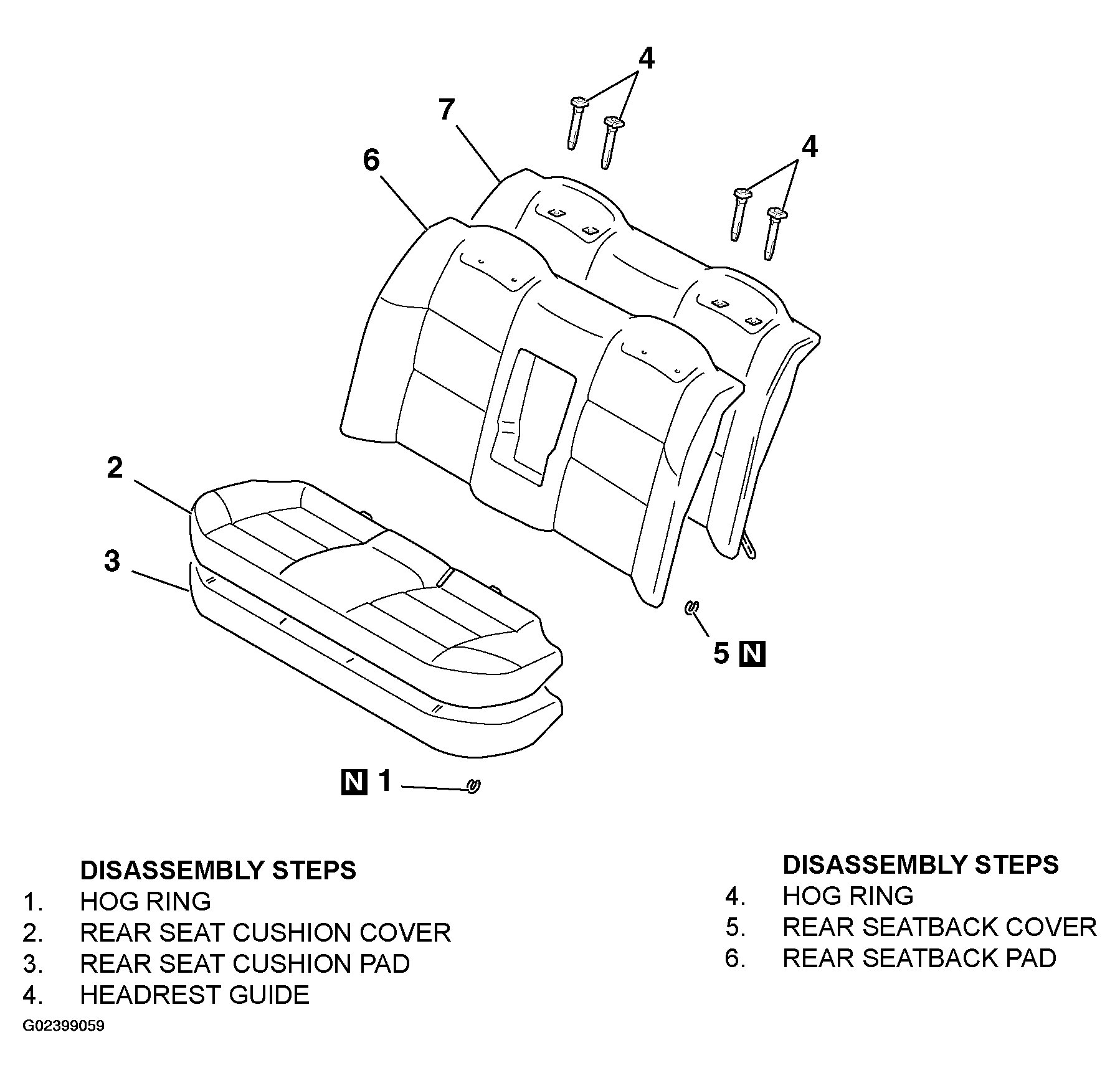

Fig 2: Identifying Rear Seat Assembly Components (Option)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
