Disassembly And Assembly: Notes

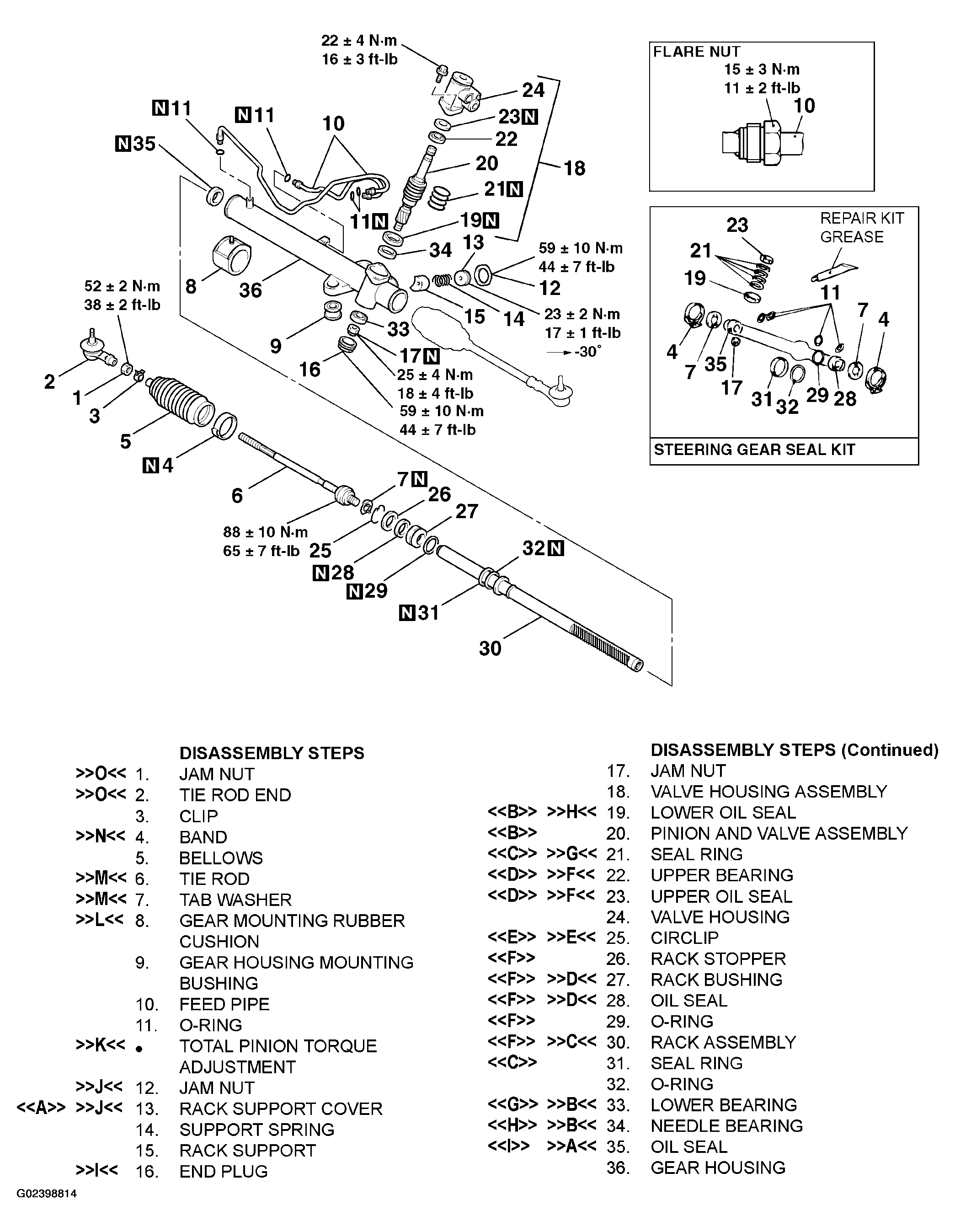

Fig 1: Identifying Power Steering Gear Box And Linkage Lubrication And Sealing Points Components Location
Required Special Tools:
- MB990776: Front Axle Base
- MB990927: Installer Adapter
- MB990938: Bar (Snap-in type)
- MB990939: Brass Bar
- MB990941: Torque Tube Bearing Installer
- MB991006: Preload Socket
- MB991120: Needle Bearing Puller
- MB991152: Dust Cover Installer
- MB991197: Bar (Long type)
- MB991199: Oil Seal and Bearing Installer
- MB991203: Oil Seal and Bearing Installer
- MB991214: Rack Installer
- MB991317: Seal Ring Installer
- MB991561: Boot Band Crimping Tool
- MB991621: Rack Support Cover Wrench
