Disassembly And Assembly: Notes

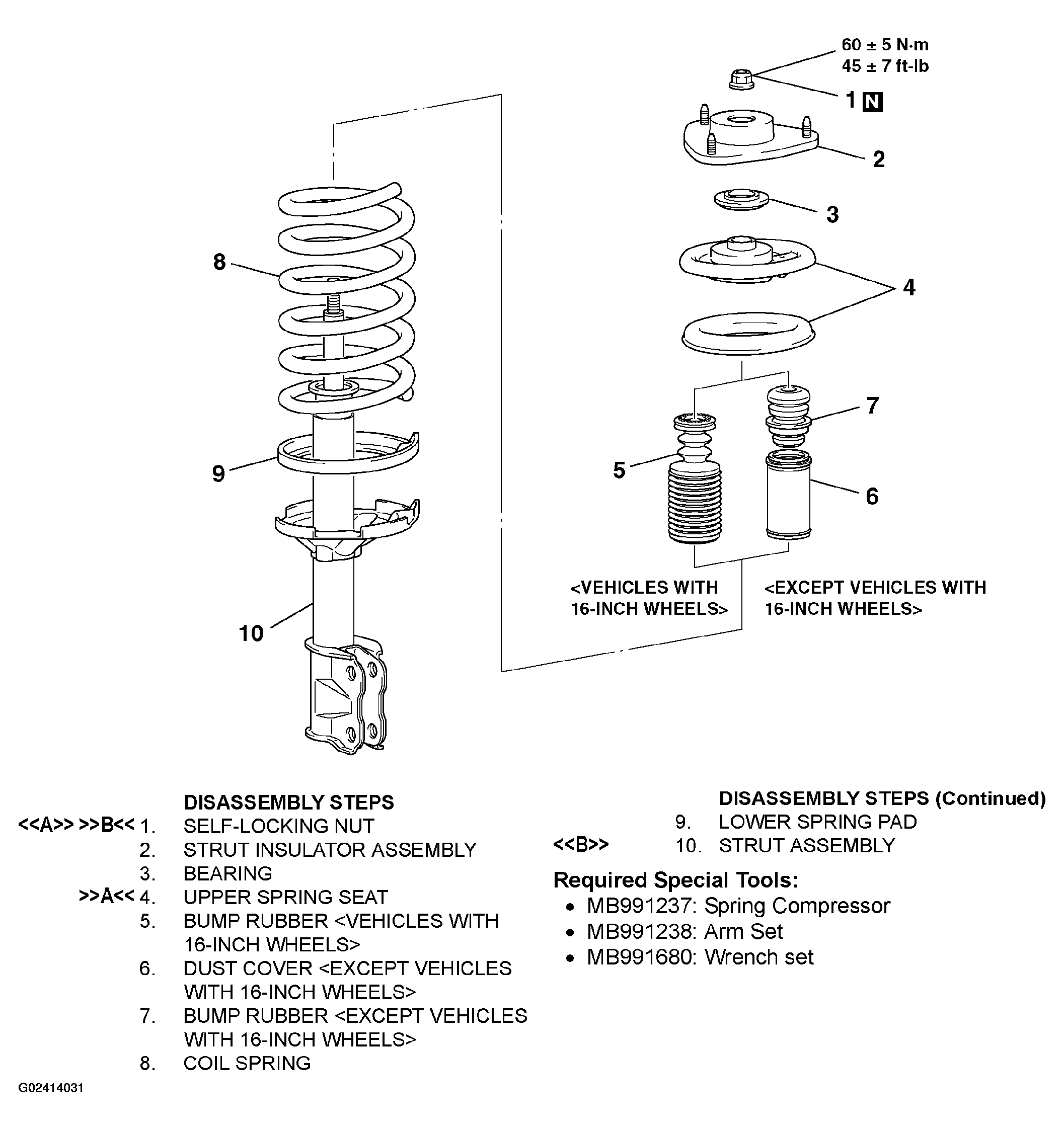

Fig 1: Identifying Strut Assembly Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991237: Spring Compressor
• MB991238: Arm Set
• MB991680: Wrench set
