Front Suspension & Wheel Alignment- Evolution
›
Strut Assembly
›
Removal And Installation
Removal And Installation

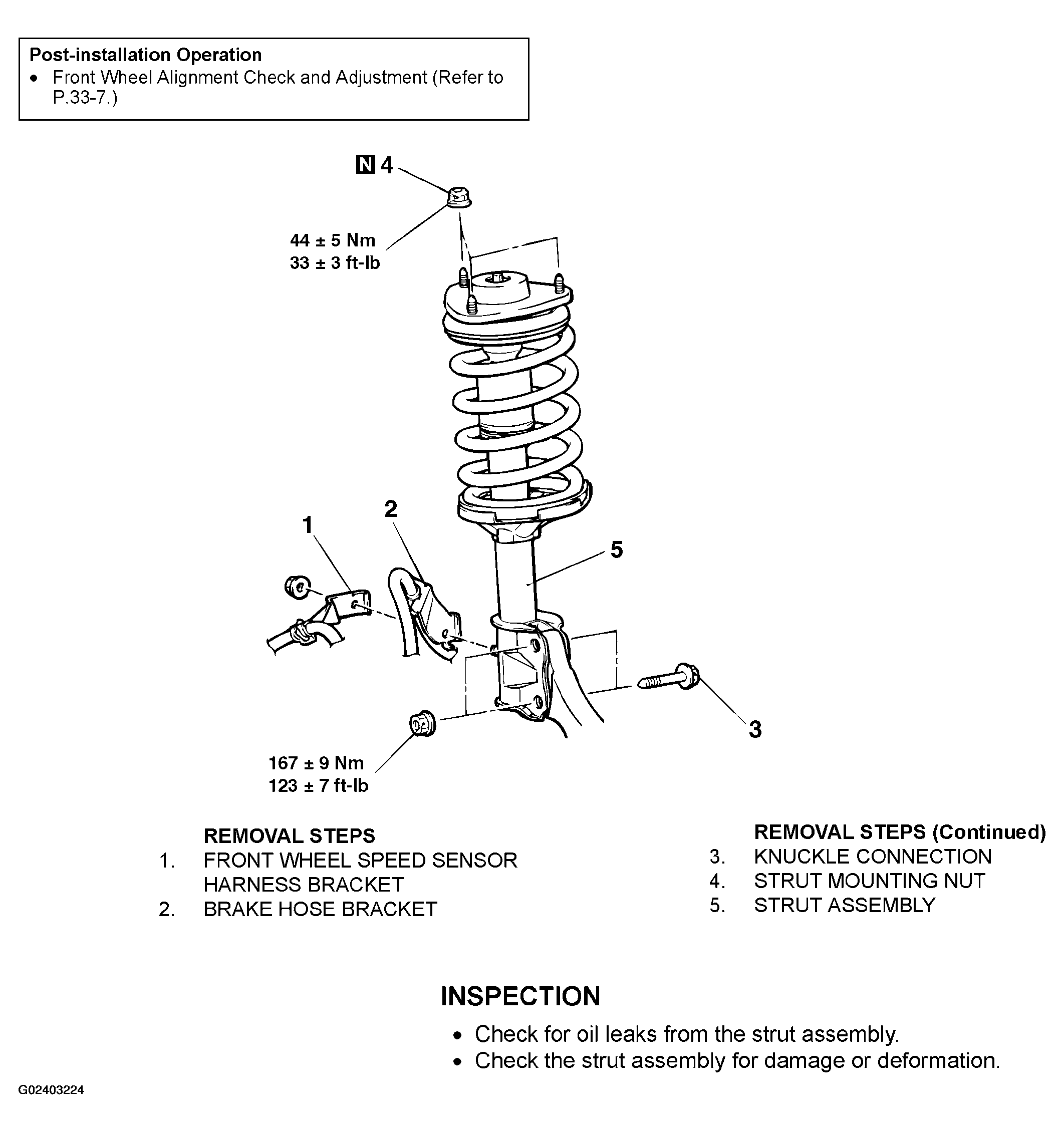

Fig 1: Removing/Installing Strut Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
