>> E << Lock Pin Installation
>> E << Lock Pin Installation
Drive the lock pin in the direction shown in the illustration.

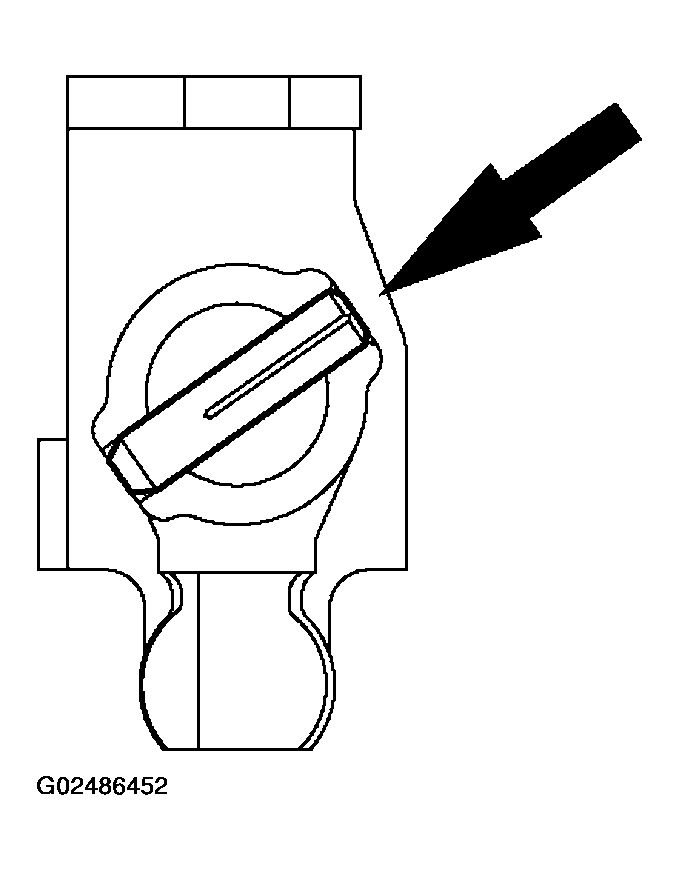

Fig 1: Installing Lock Pin
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
