Removal And Installation: Notes

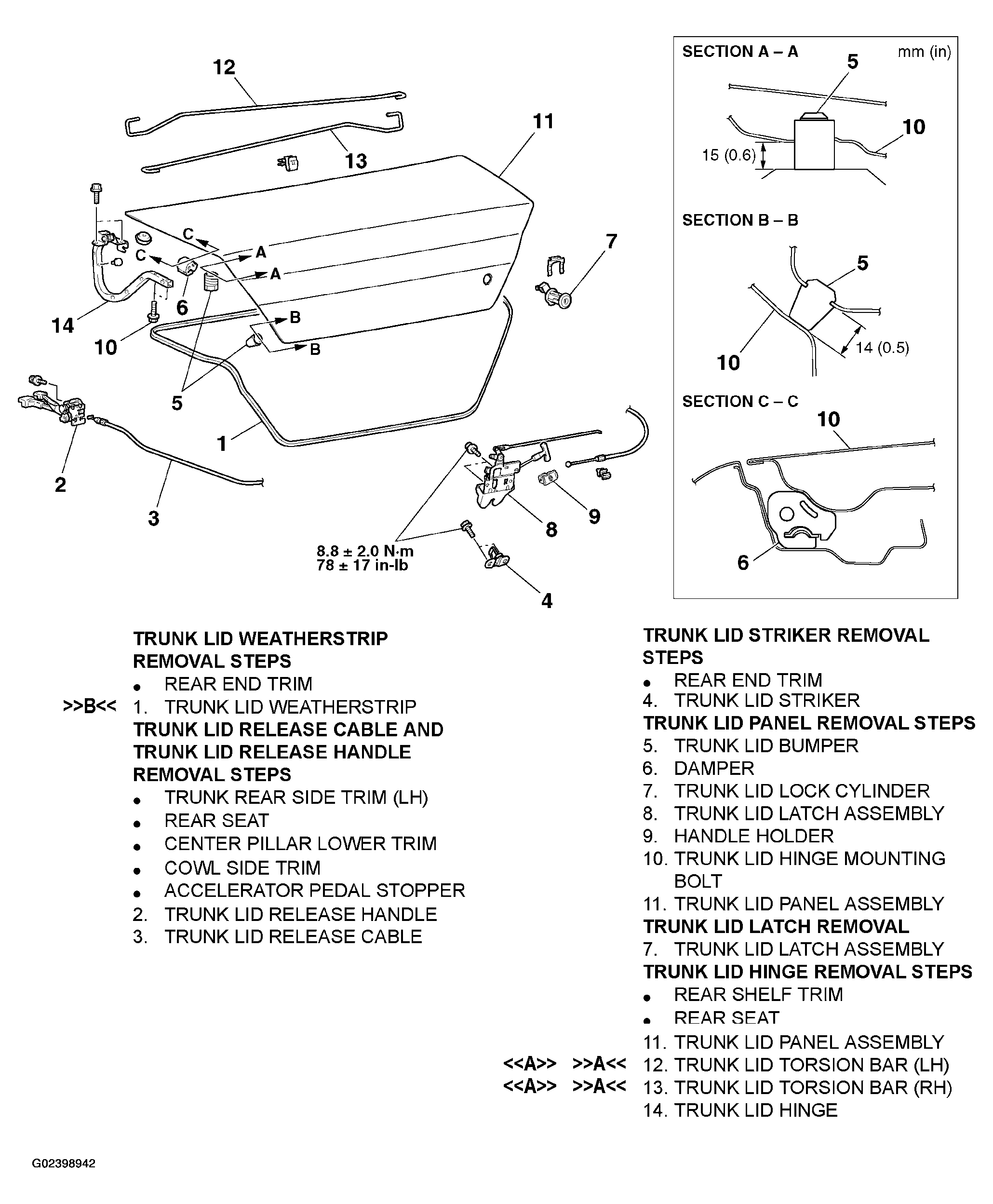

Fig 1: Removing/Installing Trunk Lid

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB991244: Torsion Bar Remover and Installer

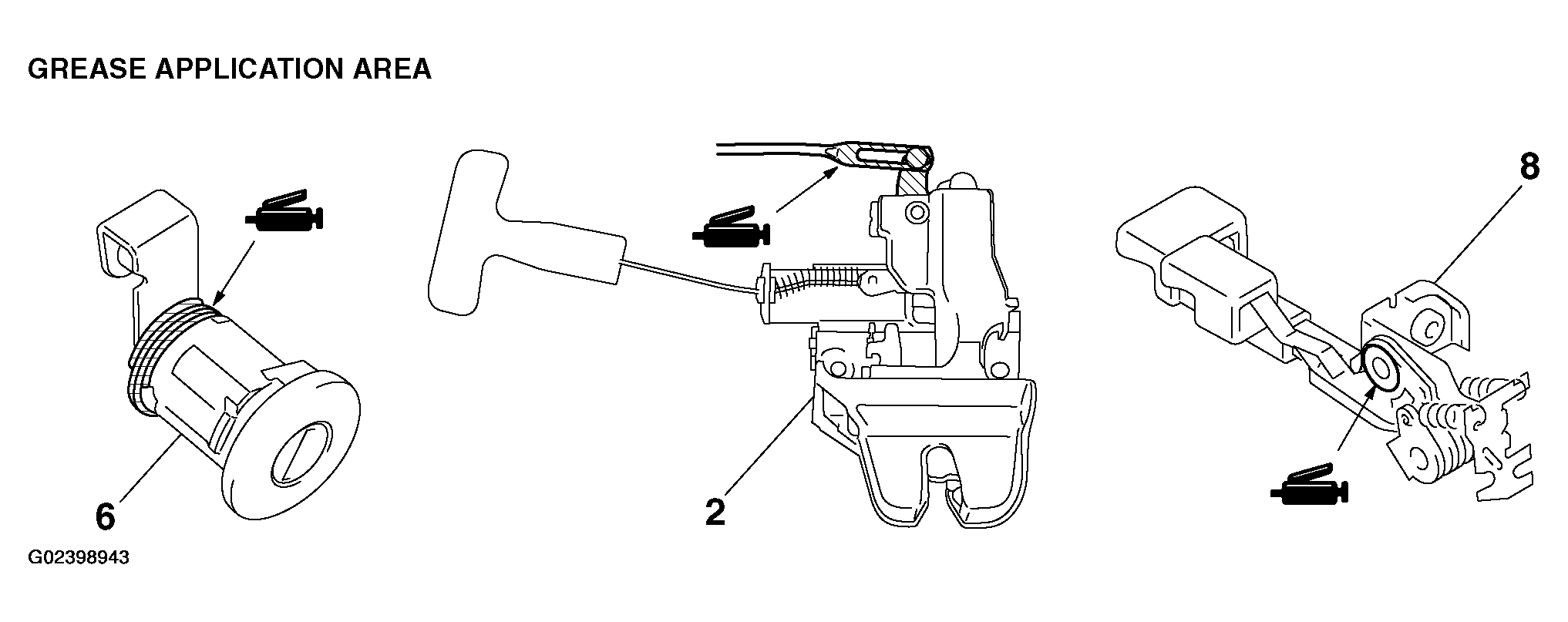

Fig 2: Locating Grease Application Area

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
