Notes
Removal And Installation: Notes
NOTE:
The ABS-ECU is integrated in the hydraulic unit.

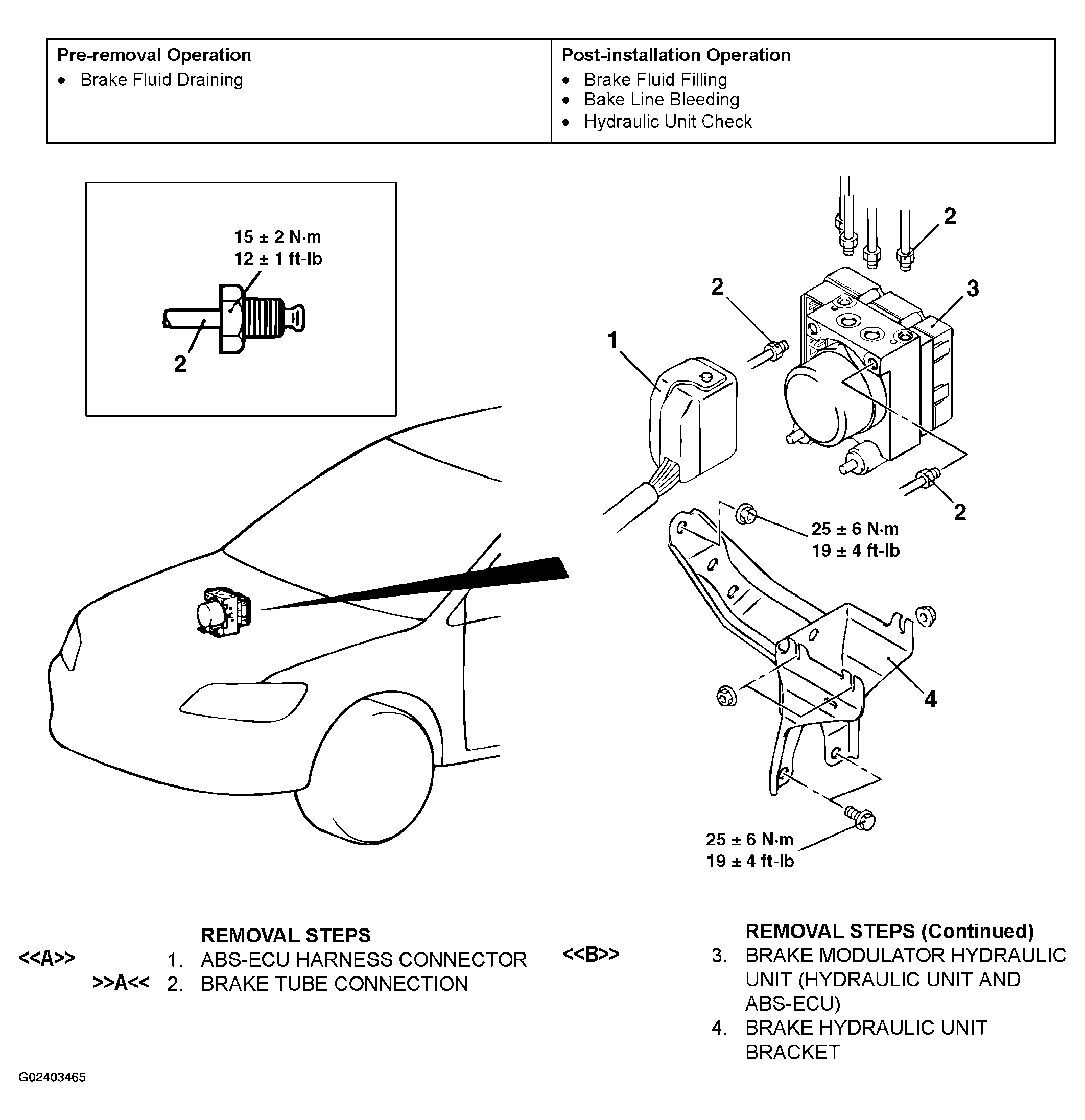

Fig 1: Removing/Installing Hydraulic Unit
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
