Connector End Views (Evolution)
›
Connector End Views
›
Left Front Impact Sensor Connector End View (A-33)
Left Front Impact Sensor Connector End View (A-33)

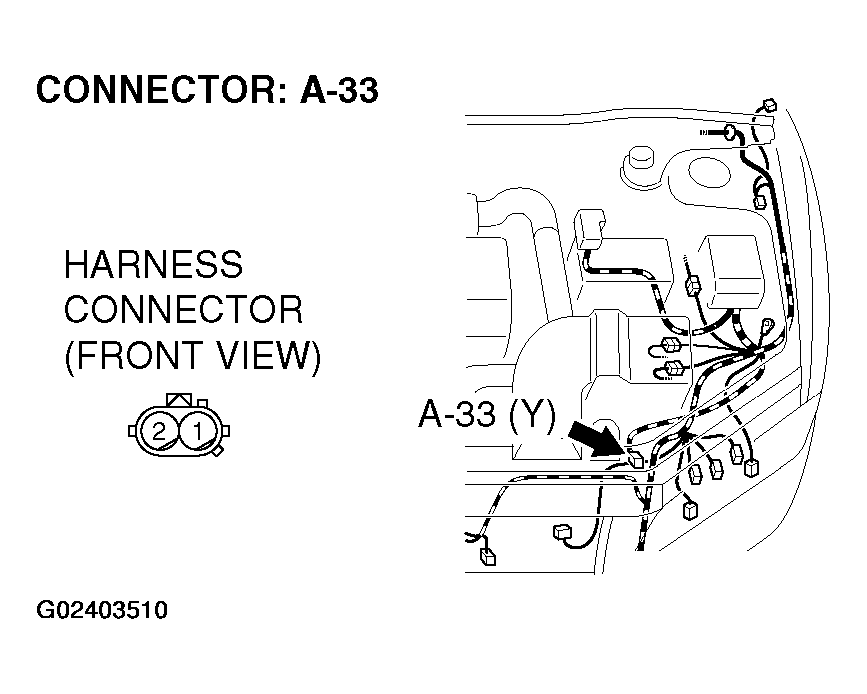

Fig 1: Left Front Impact Sensor Connector End View (A-33)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
