Connector End Views (Evolution)
›
Connector End Views
›
Power Window Sub Switch Connector End View (E-14)
Power Window Sub Switch Connector End View (E-14)

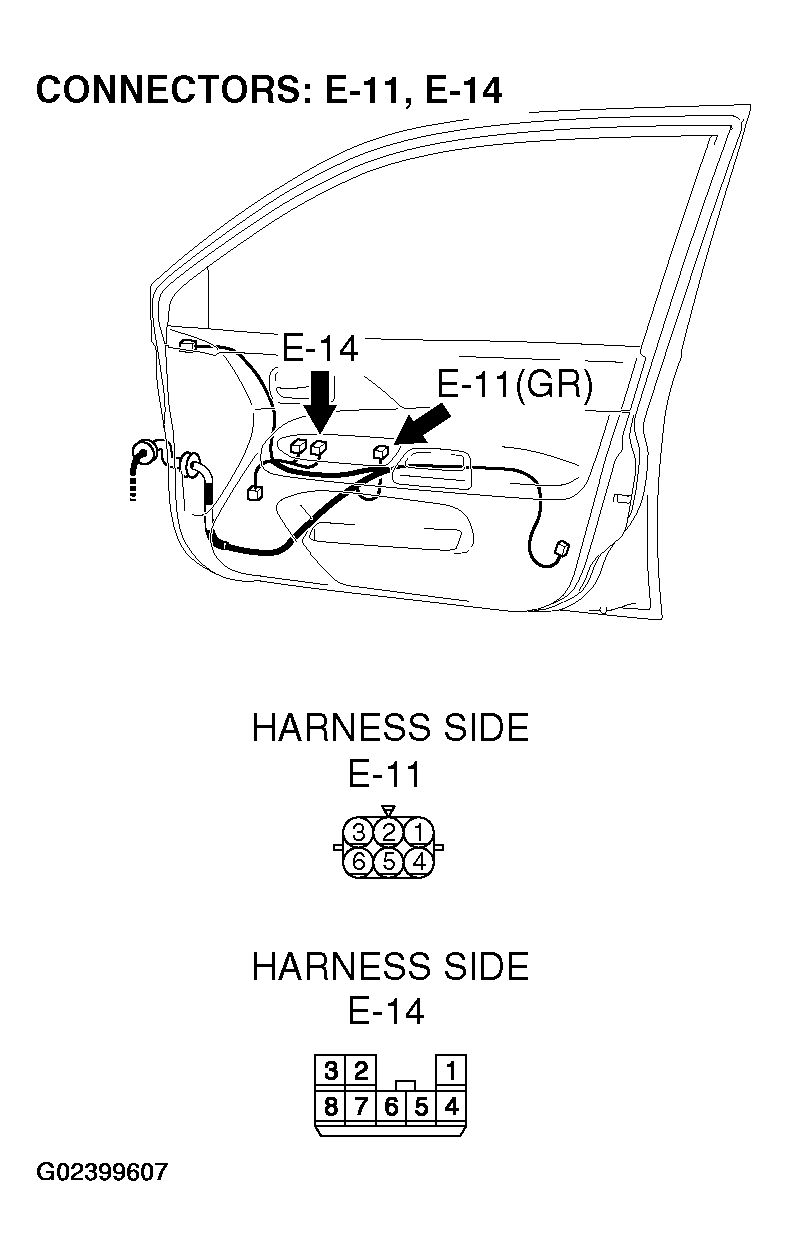

Fig 1: Power Window Sub Switch Connector End View (E-14)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
