Connector End Views (Evolution)
›
Connector End Views
›
Turn-Signal Light, Lighting Switch, Windshield Wiper And Washer Switch Connector End View
Turn-Signal Light, Lighting Switch, Windshield Wiper And Washer Switch Connector End View

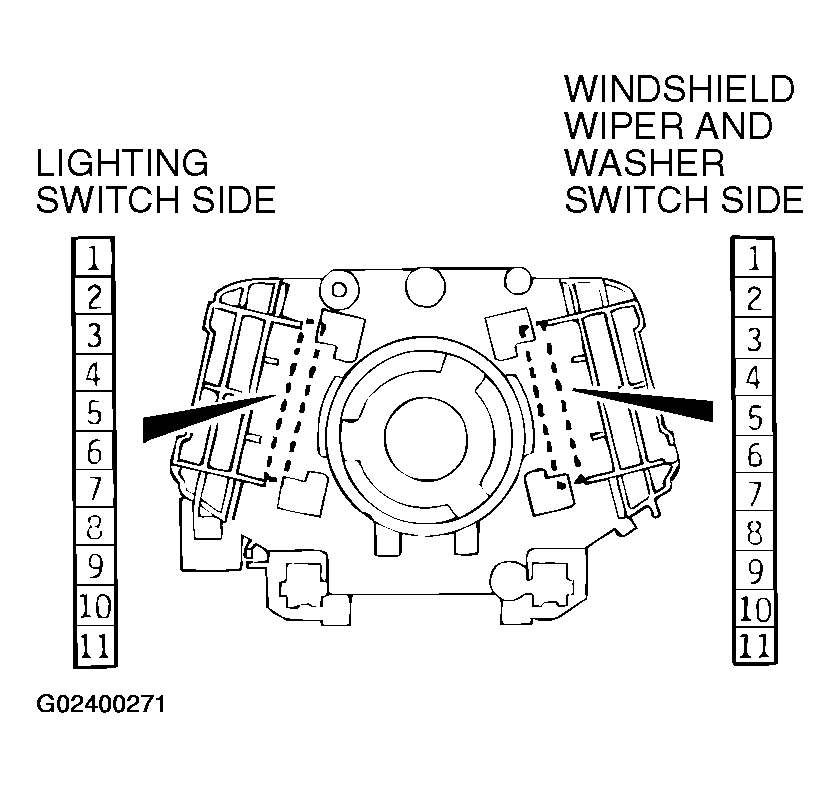

Fig 1: Turn-Signal Light, Lighting Switch, Windshield Wiper And Washer Switch Connector End View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
