Disassembly And Assembly: Notes

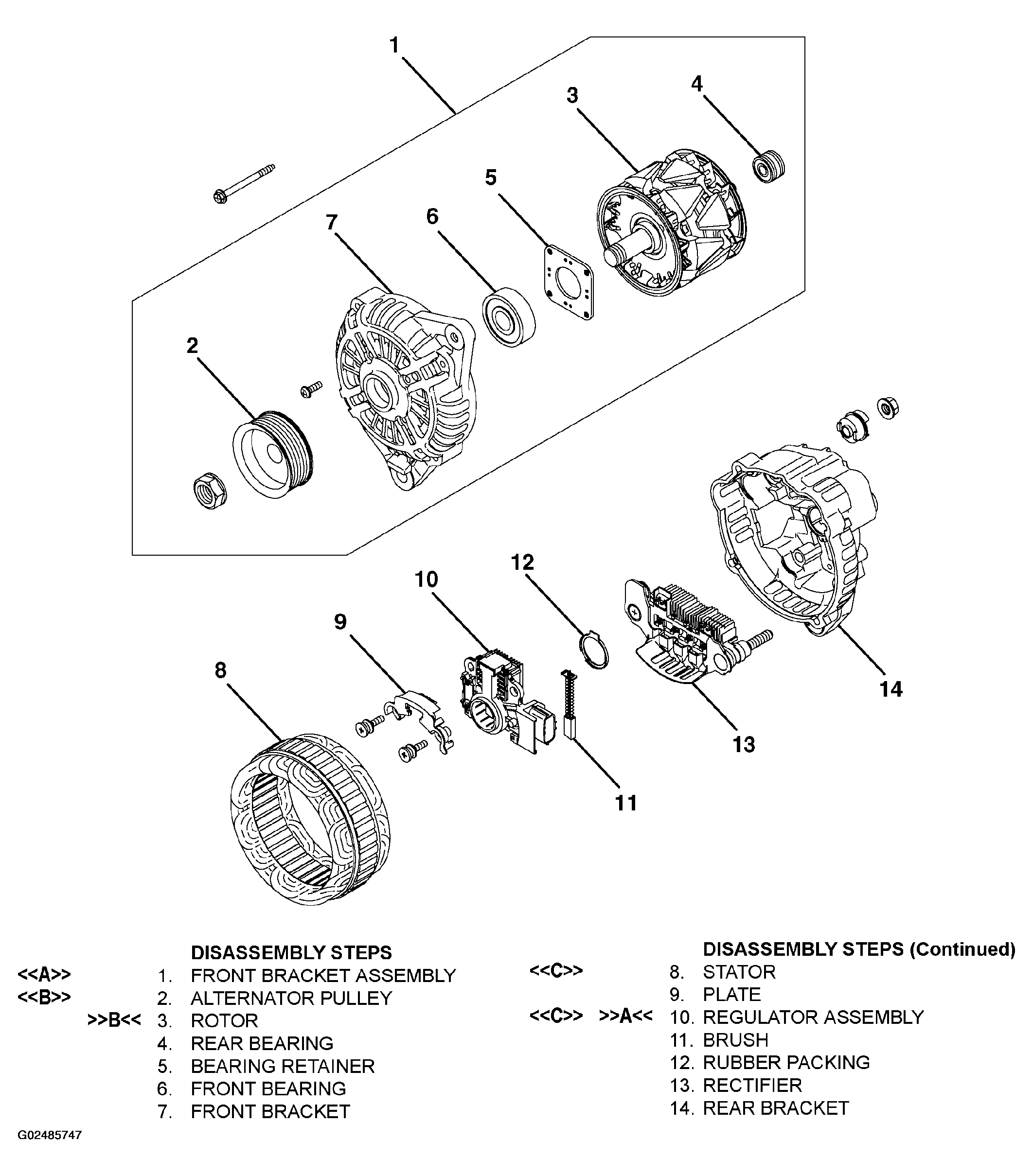

Fig 1: Disassembling Generator Removal
G02485747Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
