Removal And Installation: Notes

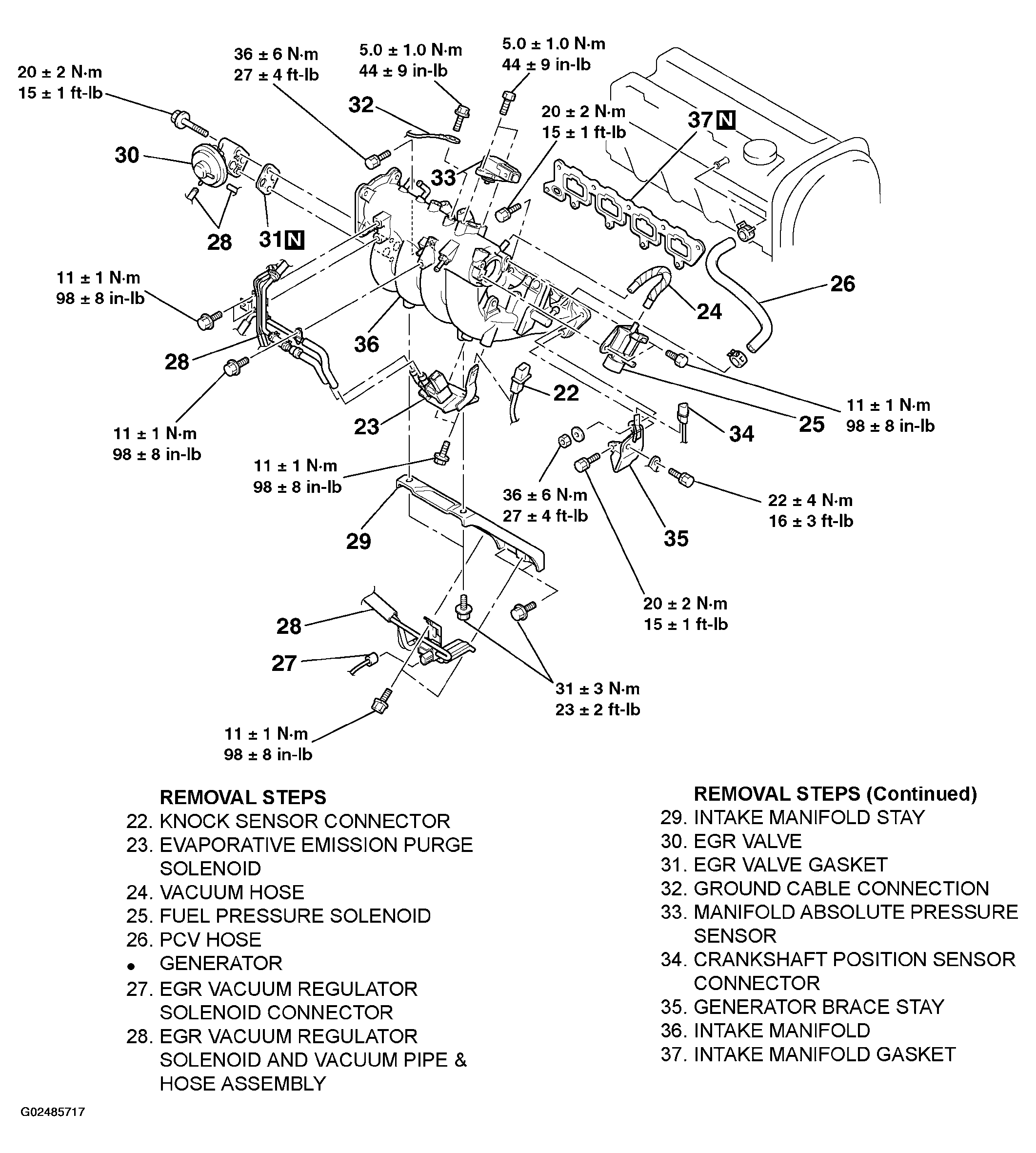

Fig 1: Removing And Installing Intake Manifold Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

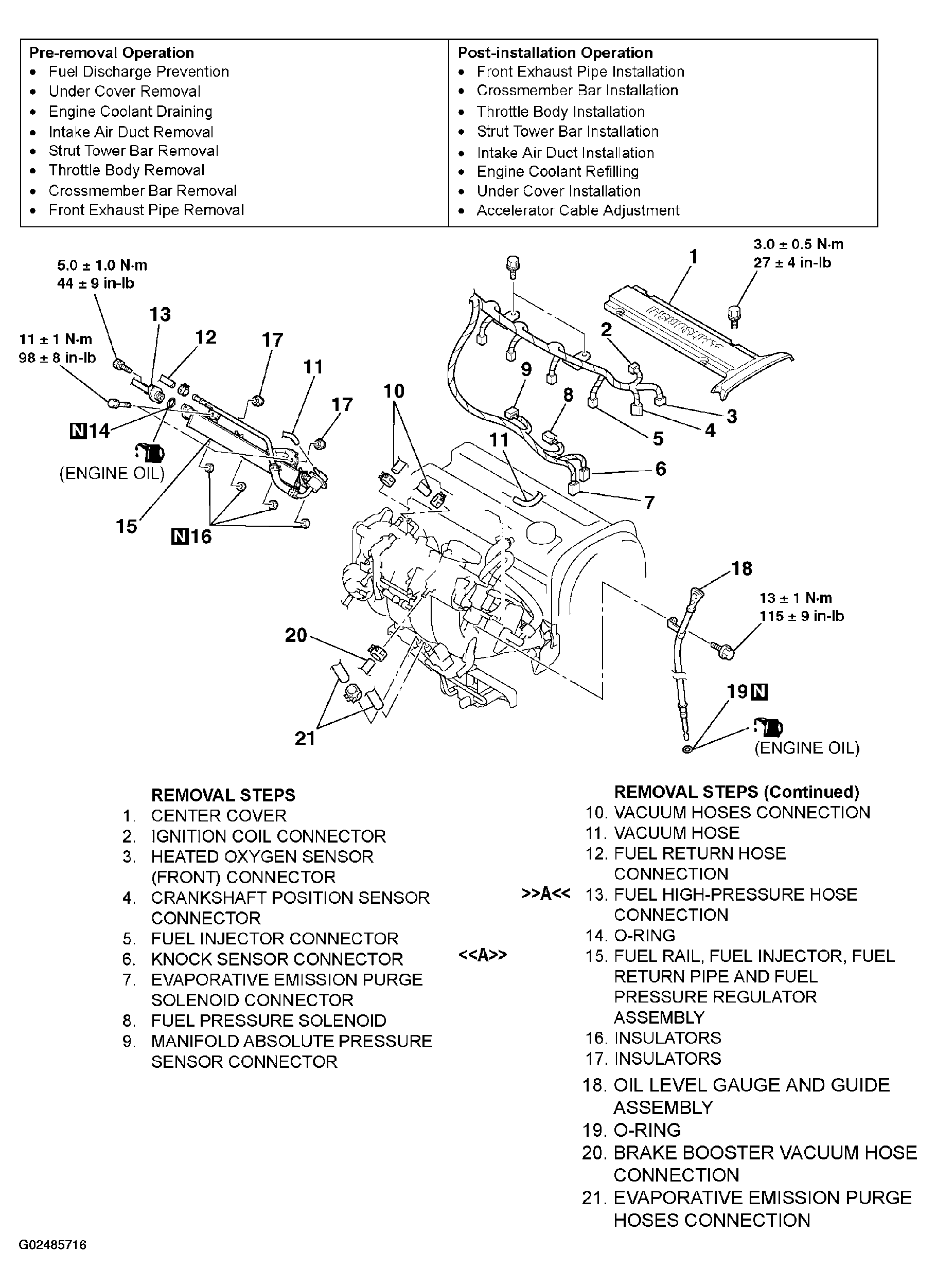

Fig 2: Removing Intake Manifold

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
