Repair and Diagnosis
›
Engine Mechanical
›
Starter
›
Starting System -- Evolution
›
Starter Motor Assembly
›
Removal And Installation
Removal And Installation

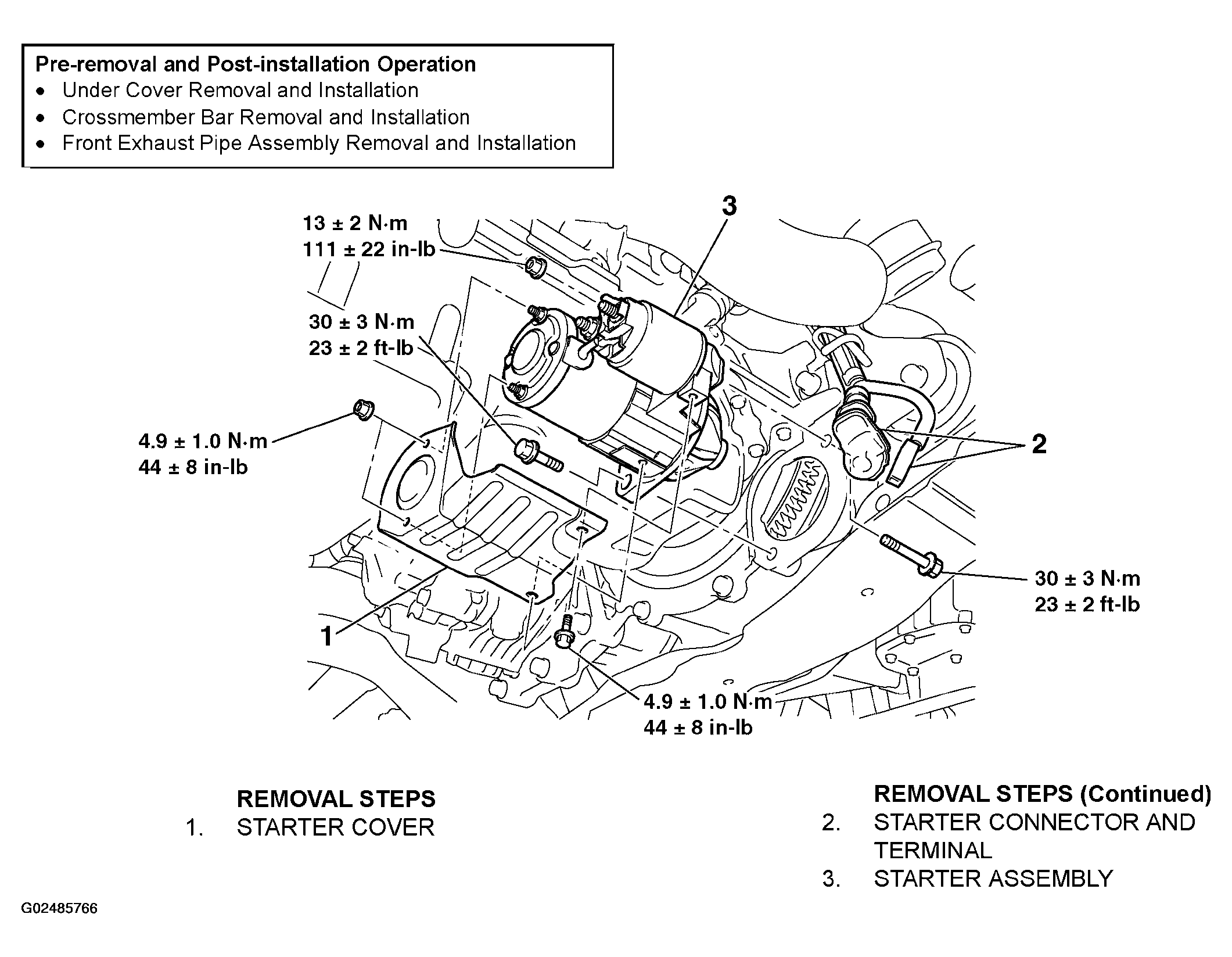

Fig 1: Removing/Installing Starter Motor Component Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
