Emission Control -- Evolution
›
Exhaust Gas RECIRCULATION (EGR) System
›
Removal And Installation
›
Notes
Removal And Installation: Notes

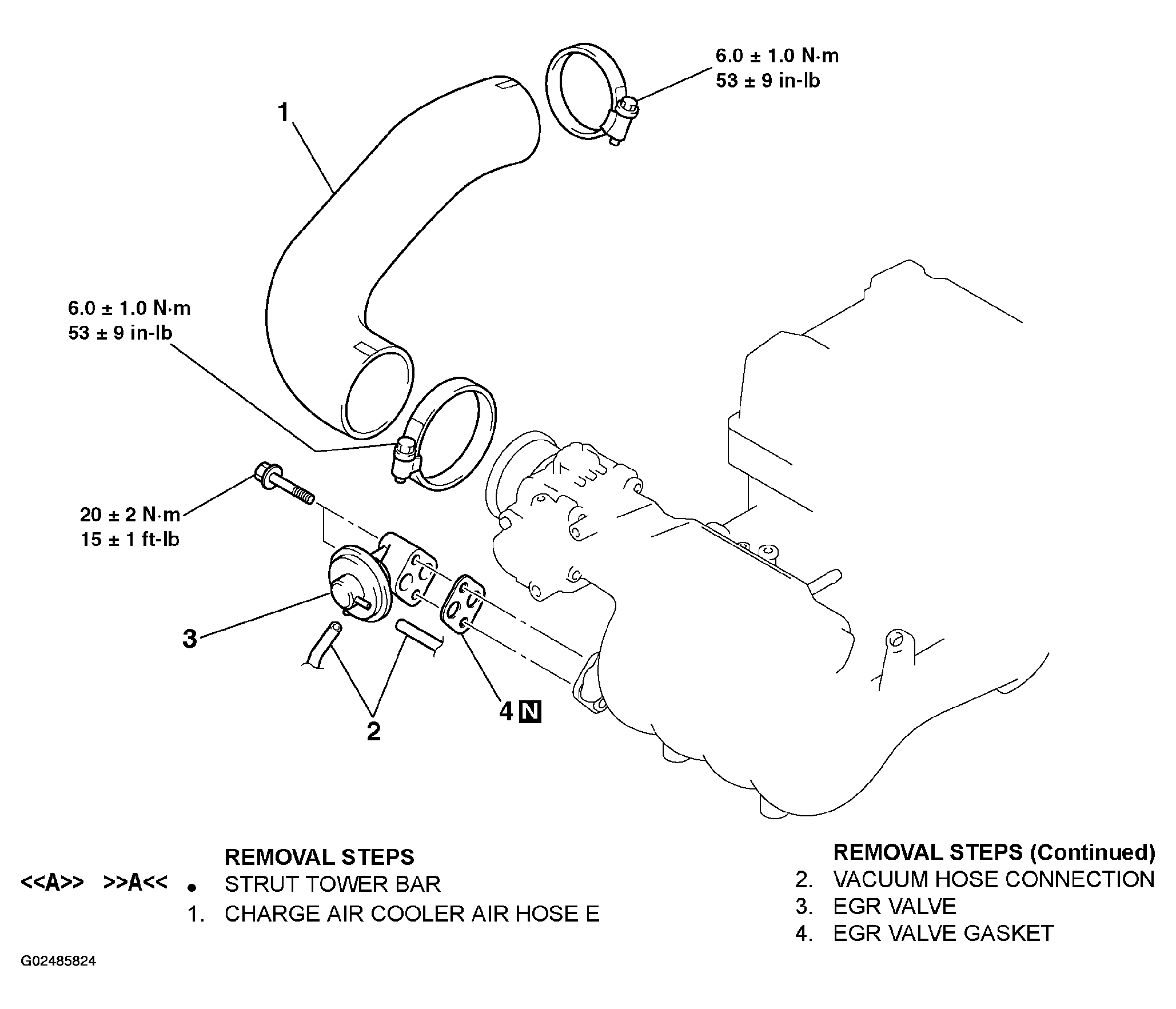

Fig 1: Removing/Installing Engine And Emission Control
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
