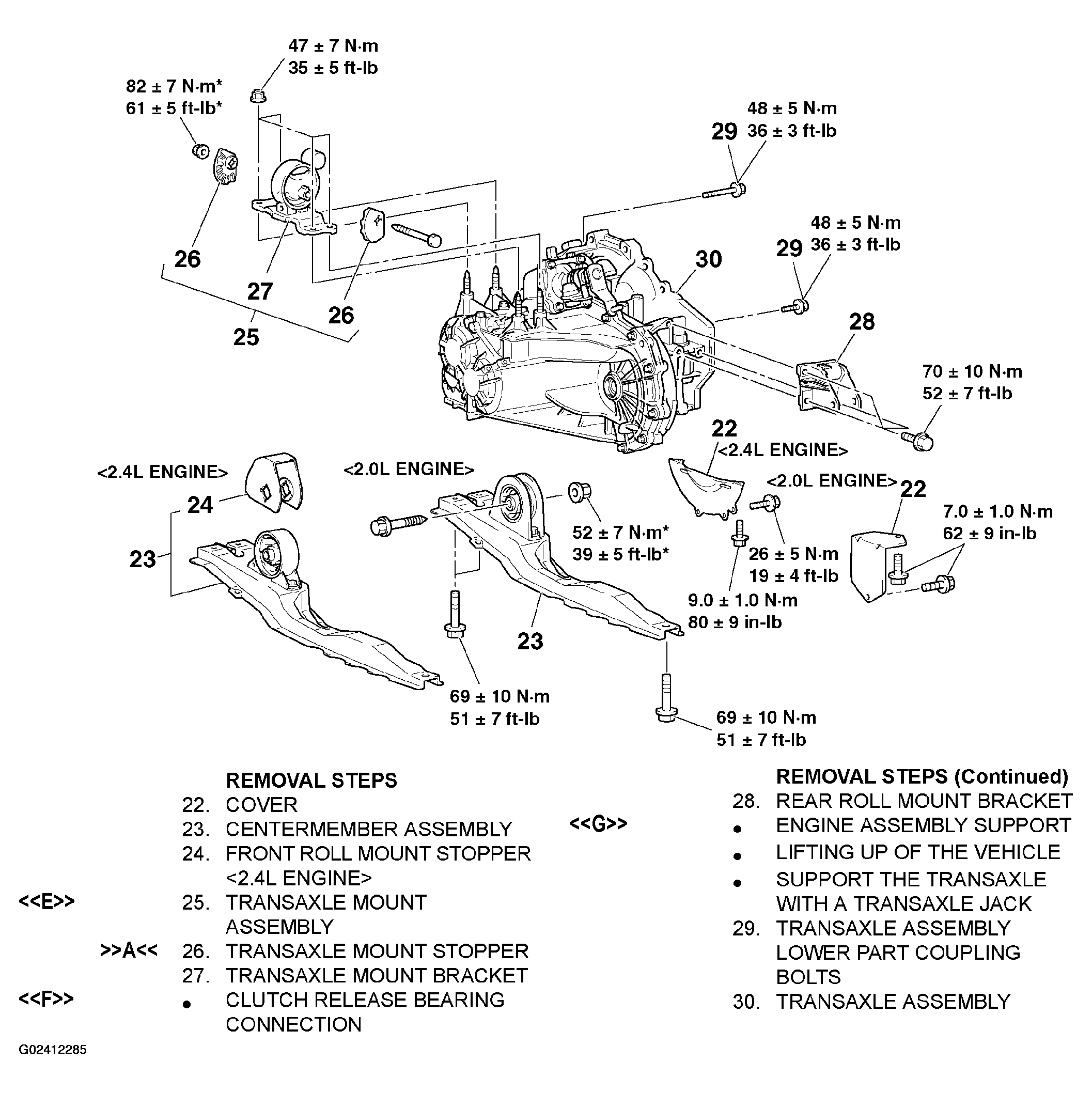

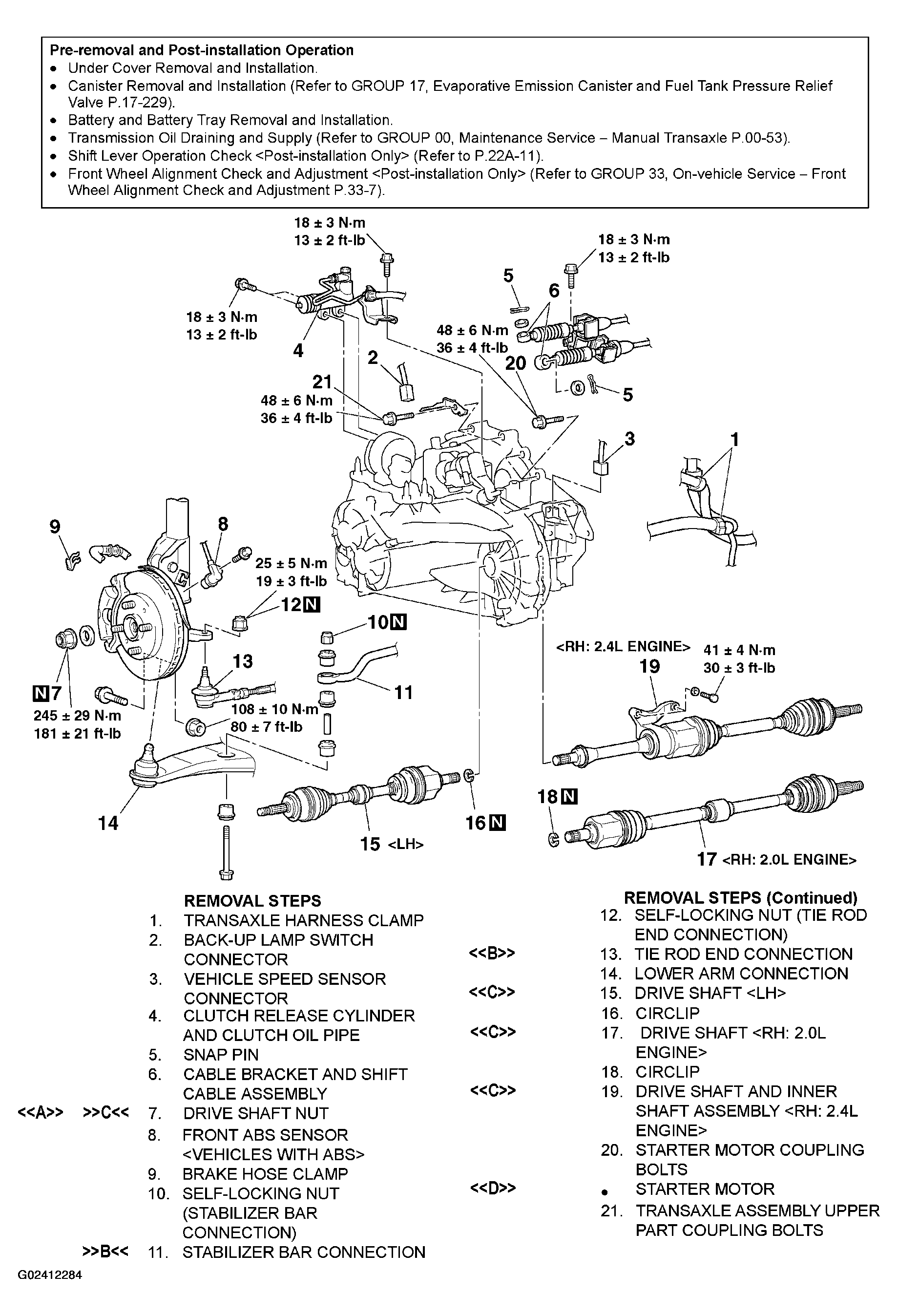

Removal And Installation: Notes
WARNING: This page is about a different variant/trim than selected.
CAUTION:
*: Indicates parts which should be temporarily tightened, and then fully tightened after installing the engine into the vehicle.
- MB990767: End Yoke Holder
- MB991897: Ball Joint Remover
- MB990241: Axle Shaft Puller
- MB990242: Puller Shaft PUller
- MB990244: Puller Bar
- MB991354: Puller Body
- MB991017: Front Hub Remover and Installer
- MB991000: Spacer
- MB991460: Plug
- MB991527: Hanger
- MB991454: Engine Hanger Balancer (chain)
- MB991895: Engine Hanger
- MB991928: Engine Hanger
- MB991932: Foot (standard)
- MB991933: Foot (short)
- MB991930: Joint (90)
- MB991931: Joint (140)
