Section 10 (On-Vehicle Service - Except Evolution)
›
Transaxle Control
›
Shift Lever Assembly
›
Disassembly And Assembly
Disassembly And Assembly
WARNING:
This page is about a different variant/trim than selected.

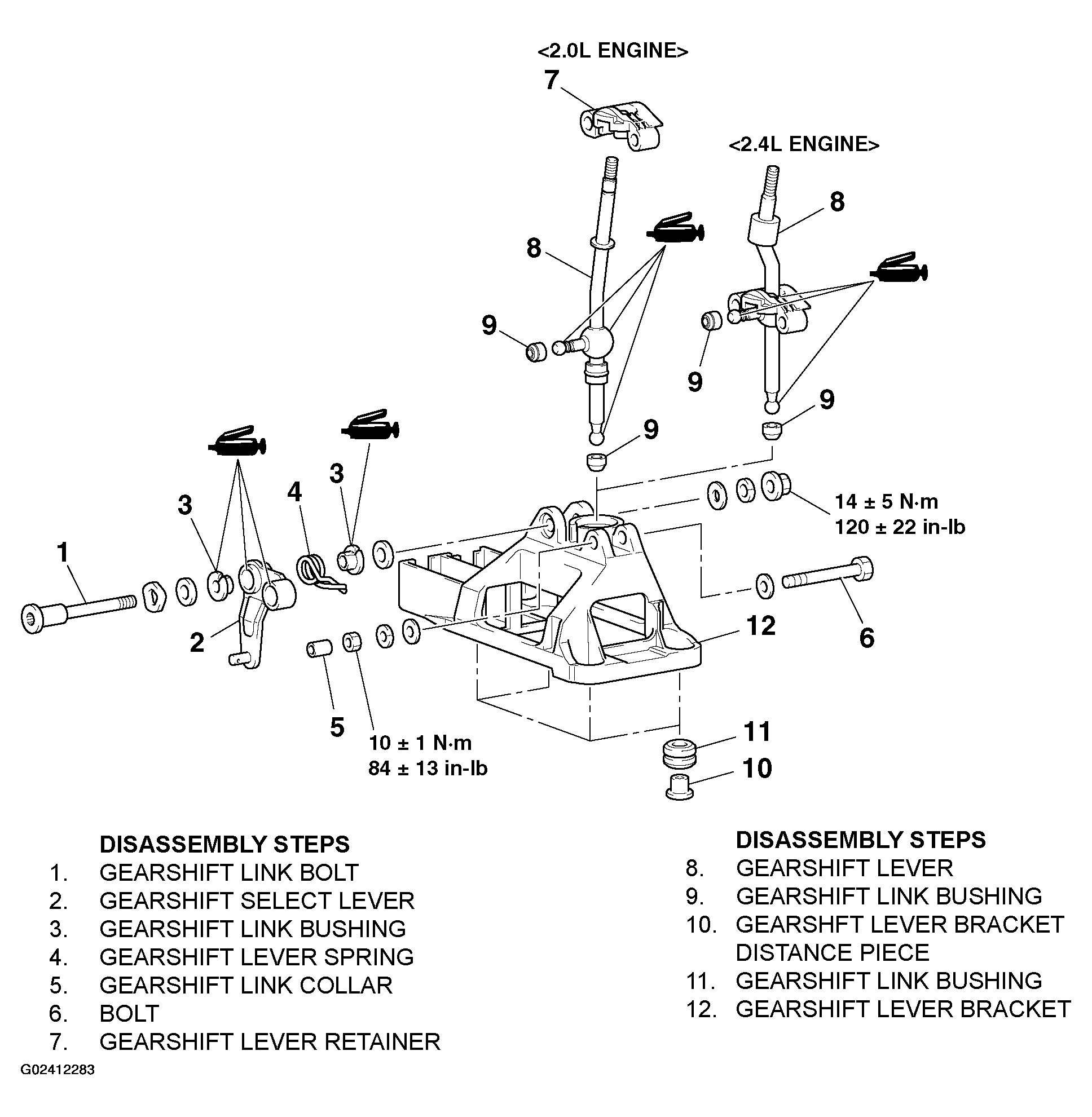

Fig 1: Disassembly Steps Of Shift Lever Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
