Section 16 (Fuel Supply -- Except Evolution): General Description

WARNING: This page is about a different variant/trim than selected.

The fuel tank is located under the floor of the rear seats to provide increased protection and a more luggage space.
A fuel tank rollover valve assembly has been adopted to prevent fuel from leaking out in case of a collision.
A fuel pump module, including fuel pump, fuel filter and reservoir cup, has been adopted to lighten weight and improve serviceability.

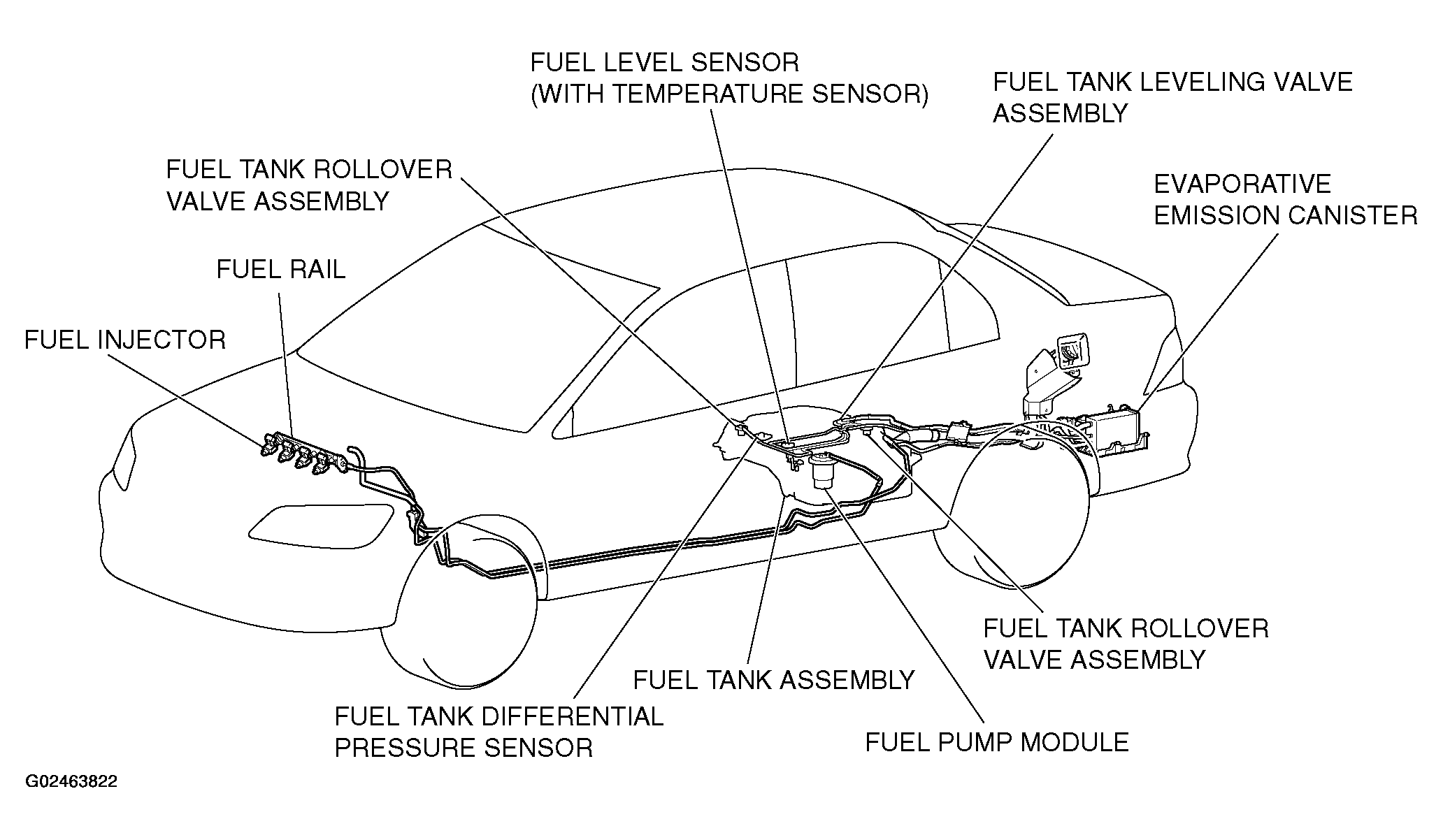

Fig 1: Locating Fuel Supply System Component Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
