Tachometer Check

WARNING: This page is about a different variant/trim than selected.

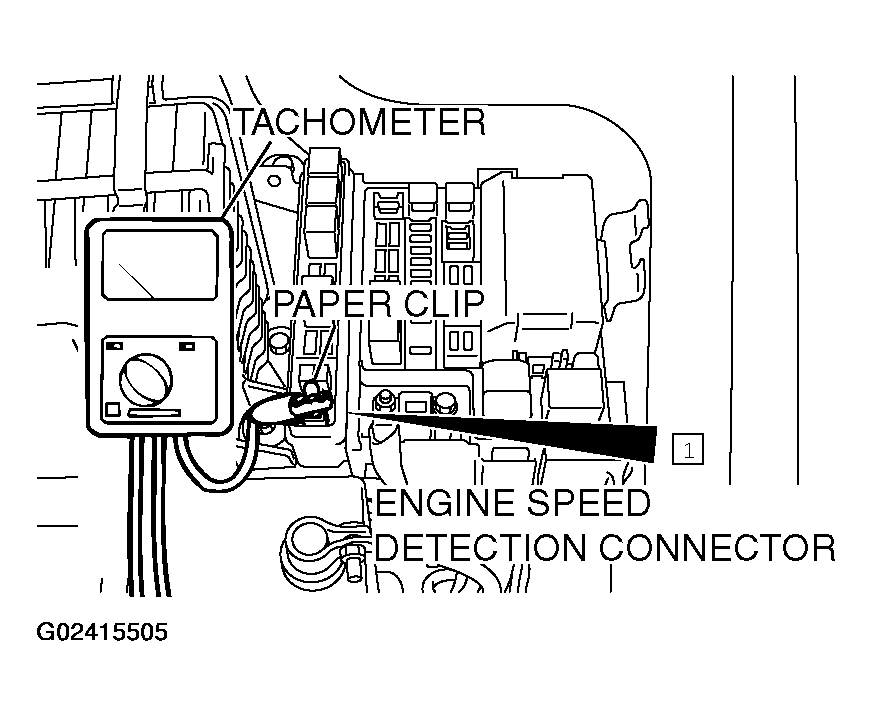

Attach an external high quality tachometer to the engine speed detection connector on the harness side (such as with a paper clip).
NOTE: For tachometer check, use an external high quality inductive tachometer.

Compare the readings of the vehicle tachometer and the external tachometer at every engine speed, and check if the variations are within the standard values.

Standard values:

TACHOMETER CHECK

Engine speed (r/min)	Indication allowance of tachometer r/min
700	+/- 100
3 000	-100 + 225
5 000	-125 + 325
6 000	-125 + 375

Fig 1: Connecting Scan Tool Mb991958 To Data Link Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
