Fog Light Relay Check

WARNING: This page is about a different variant/trim than selected.

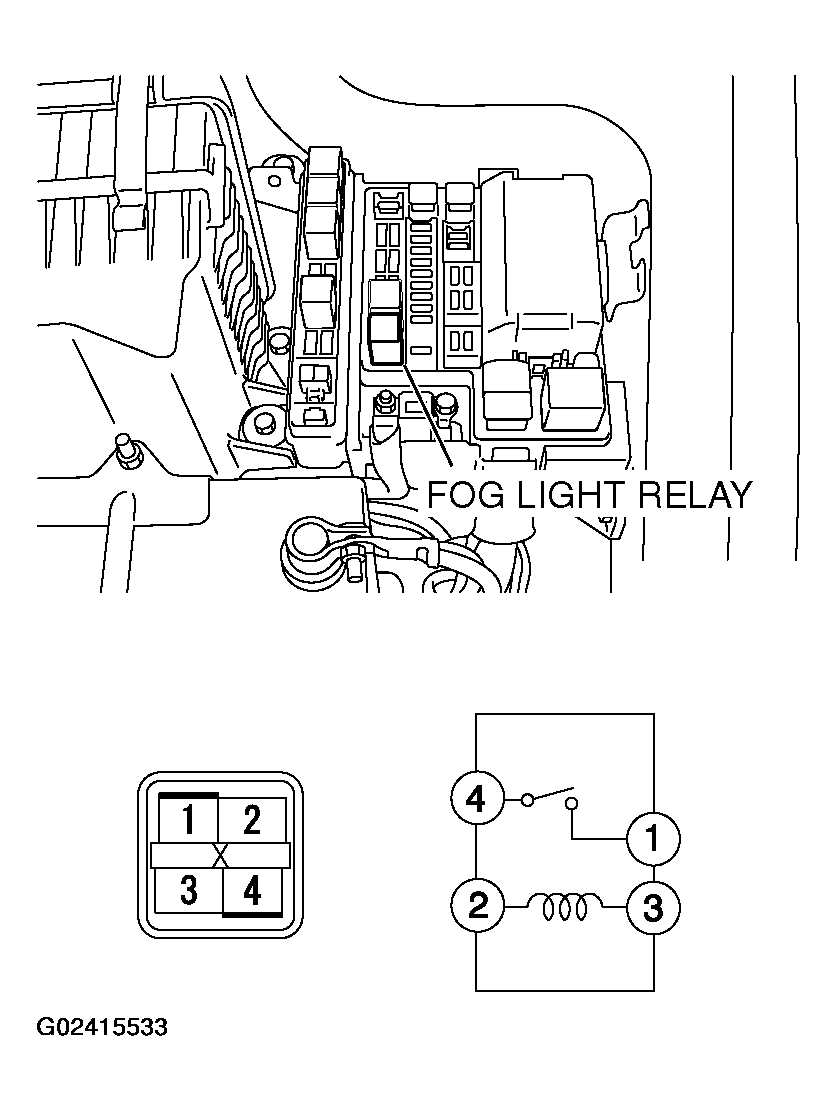

Fig 1: Checking Fog Light Relay
G02415532Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

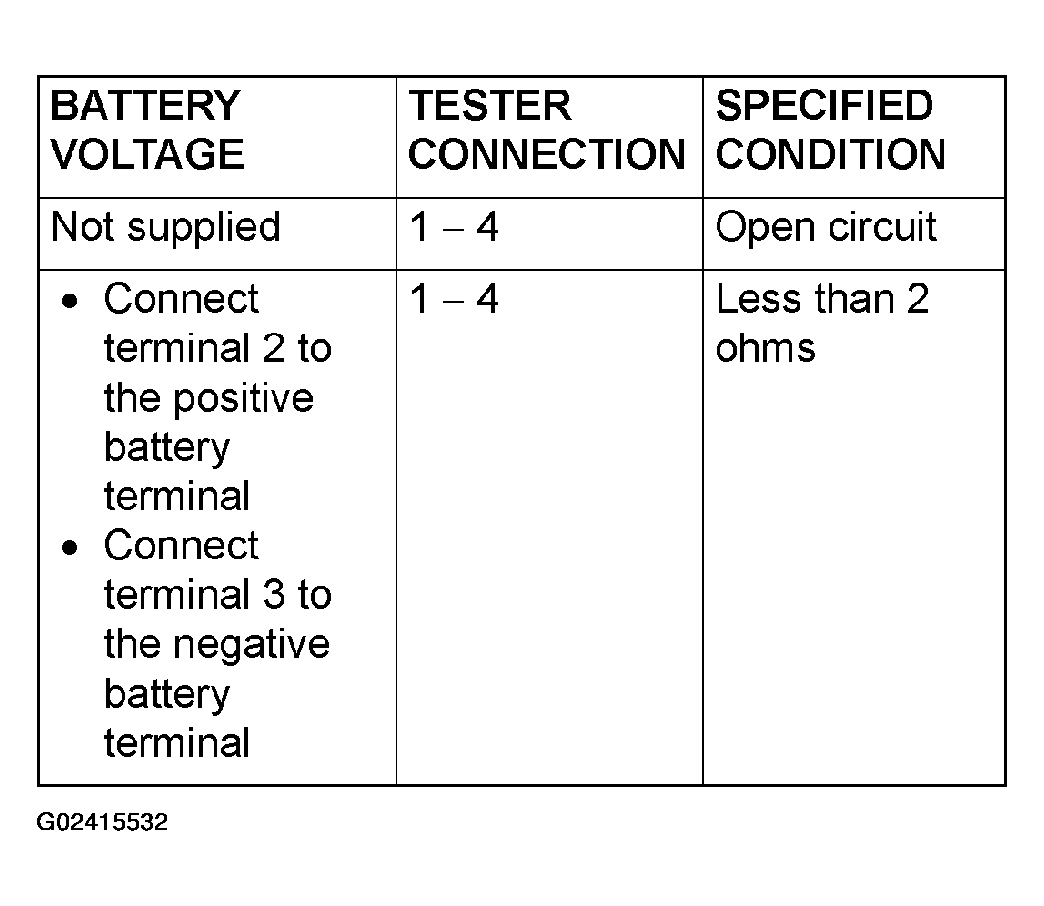

Fig 2: Tester Connection Specified Condition Chart
G02415533Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
