Fog Light Switch Continuity Check
WARNING: This page is about a different variant/trim than selected.

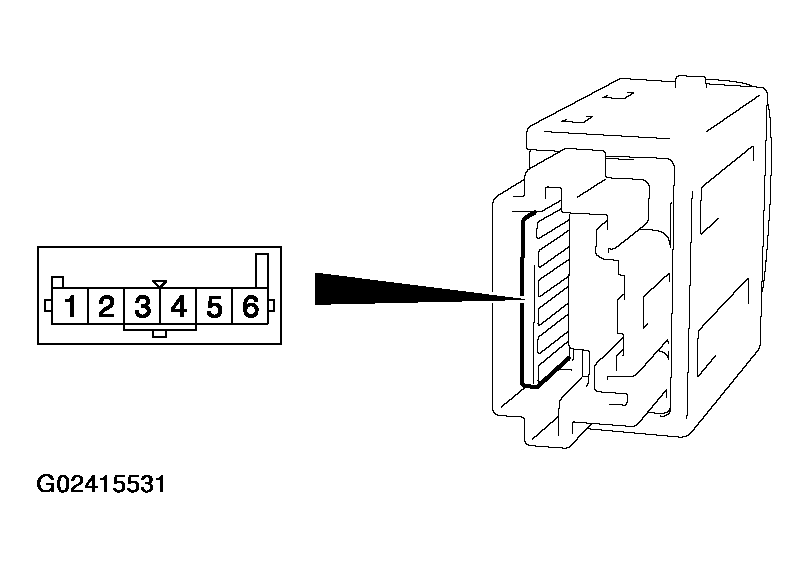

FOG LIGHT SWITCH CONTINUITY CHECK
| SWITCH POSITION |
TESTER CONNECTION |
SPECIFIED CONDITION |
| Pressed |
1 - 2 |
Less than 2 ohms |
| Released |
1 - 2 |
Open circuit |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
