Defogger Relay Check

WARNING: This page is about a different variant/trim than selected.

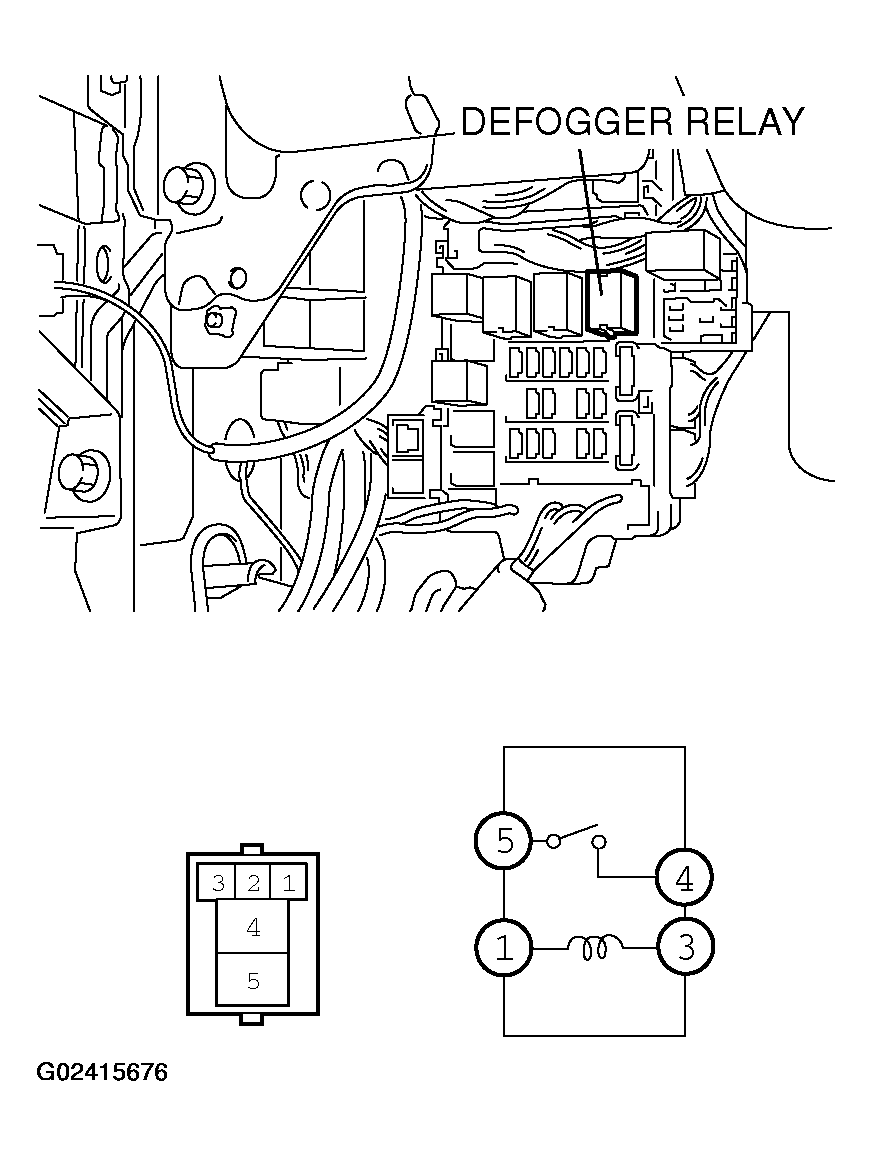

Fig 1: Identifying Defogger Relay
G02415675Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

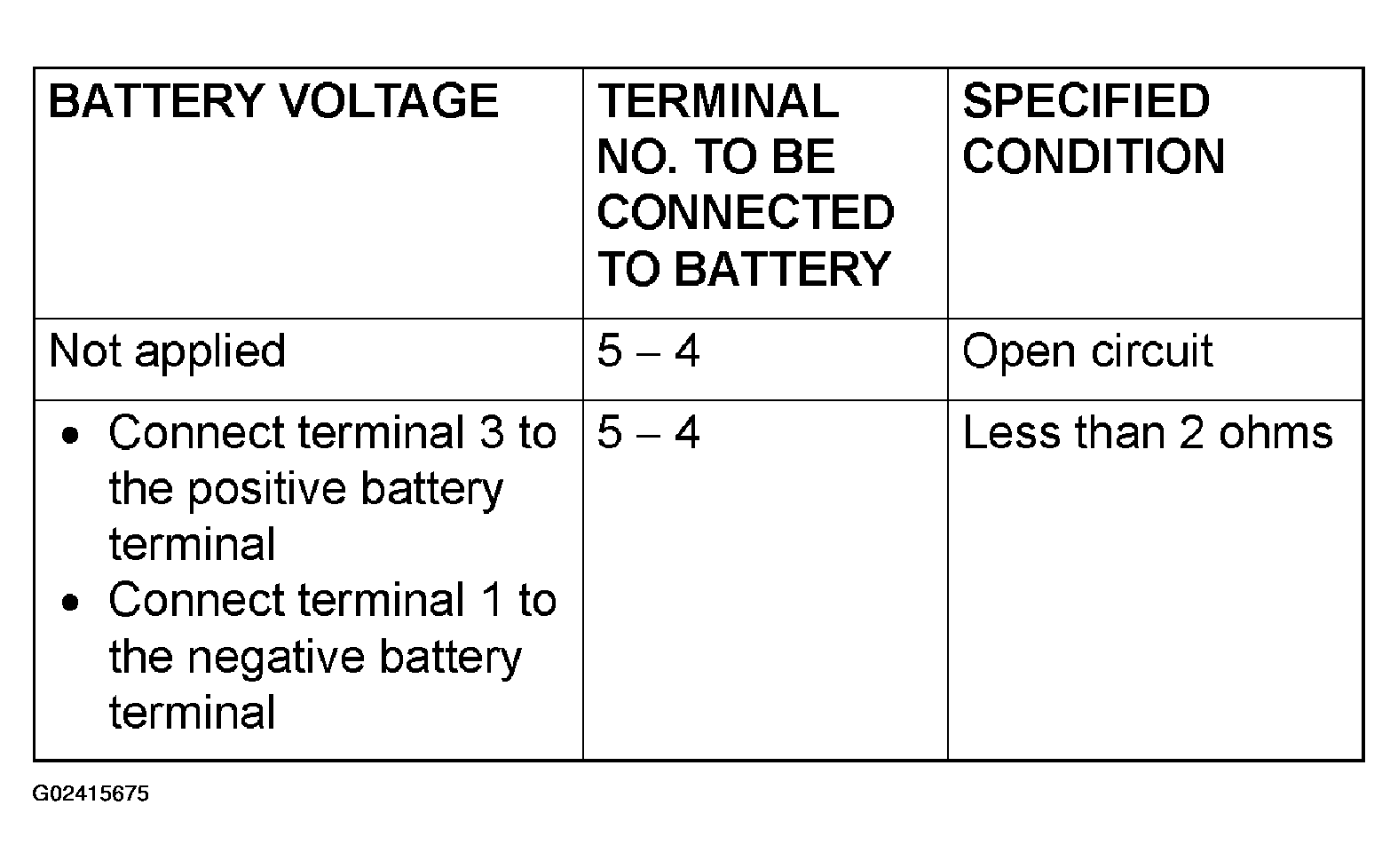

Fig 2: Battery Voltage Specification
G02415676Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
